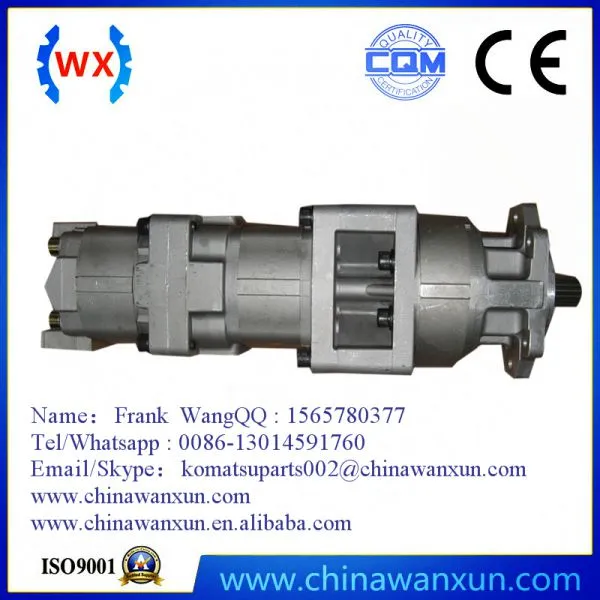

705-58-46001 HYDRAULIC GEAR PUMP FOR WA600-1 Triple pump LOW NOISE pump assy

Material

Aluminum alloy

Features

More than 30 years experience in gear pump design and   research. Professional specialized in hydraulic pump   components of Komatsu construction Vehicle.

Owned-factory with competitive price

Quality and credit-reliable,   complete varieties

Advanced manufacture and   test equipments

Product   strength

1.        Shaft sleeves are imported form DAIDO Japan.

2.        Oil sealing is made by NOK Japan.

3.        Hydraulic pump mid-body is an extrusion   molding which is produced by extruding machine (press power is 3600 Ton).

4.        Smooth surface, hard density of material.

5.        Complete variety for Komatsu (more than 200 kinds of Hydraulic   pumps)

Quotation

Based on OEM parts or genuine parts, packing, quantity

and other requirements

Notes

for fast and accurate pricing information, We need more   details:

l    your spec model of construction Vehicle

l    The hydraulic pump part number  (most   important)

l    The photos of pump

l    The direction of rotation for the pump (anticlockwise or  clockwise)

Delivery time

3-15days after received payment or   deposit

Package

The first layer: plastic dust bag

Second floor: carton

Third floor: wooden box

The fourth floor: large wooden box (for multiple pieces)

Shipment   methods

1. For stock   products in factory, quantity is less than 5pieces, Express delivery method.

2. For   manufacturing products, quantity is more than 5pieces, cargo forwarder   delivery method.

3. The   clients’ advice is acceptable

After sales   service

One   year warranty

Usage   introduction

1 .The   Hydraulic Oil must be clean and fresh; the bad condition of Oil will damage   and reduce working life of pump.

2. It will   affect the working efficiency of pumps when the old pump and new pump connect   together.

Installation   and Operation Manual

In developed industry market, the   spare parts of gear pump achieved sophisticated. Therefore, check of clean   oil with operation before using pump.

The installation should be according   to the ex-works technical documents of gear pump, and related specification   of this manual, also the pump structure should be taken into consideration.

1.        Oil liquid cleanliness standard   requirements up to NSA10 level---NSA11 Level (The average value of   contamination performance indicators less CB/T14039-2002rule 19/16).In others   words, when using new products, oil storage tank must be cleaned completely   or oil filter vehicle should carried out clean the oil, and update filter. (New   products and badly worn pump can also cause technical damaged problem),once   iron pin entry into new-pump with oil. The customer must ensure clean   oil-channel and take oil tank, update filter.)

2.        Program of pump drive shaft and   machine output shaft is Max.0.05mm.The inside of spline bushing worn parts   has been replaced at the proper time, or coaxial degree might have influence.   Measurement the pump of brack installation and connection structure   verticality is less 0.05mm. Machine drive and pump drive shaft concentricity   is within 0.05mm.

3.        When replace new pump, it requires   filling up with hydraulic oil from inlet position and turning a half circle   to pump rotation. After installing, keep running 20 mins with low speed,   check the connecting head and seal ring to make sure there is not leak oil or   leak out of this pipe.  The machine   will not run and burn shaft, if pressure is insufficient. In addition, check   safety valves to make sure pump works smoothly. Gear pump overload (allowed   1.15 times under rated of pressure instantaneous overload about 1min) is   allowed less than one minute.    Otherwise, it occurs leak oil, broke shaft, etc.
