Home > Products > portable rig > Huaxia Master Supply QZ-2A Three-phase Electric Portable Sampling Drilling Rig/Geological Prospecting Rigs/Lightweight Drilling Rig
Huaxia Master Supply QZ-2A Three-phase Electric Portable Sampling Drilling Rig/Geological Prospecting Rigs/Lightweight Drilling Rig
- Qingdao
- T/T L/C
You May Like
-
Wholesale Removable Core Sample Drilling Rig BXZ-2L Vertical Backpack Core Drilling Rig Easy Operation
-
Huaxia Master Direct Supply Portable Core Drilling Rig BXZ-1/ligh Backpack Drill Rig/Kohler Gasoline Engine for Sale
-
Hot Selling QTZ-3 Small Soil Sampling Drilling Rig/soil Testing Drilling Rig Soil Investigation Drilling Rig Machine for Sale
-
Wheeled Hydraulic Core Drilling Rig XYX-44A From Huaxia Master Large Size Deep Hole Geology Drilling Rig for Sale
-
Hydraulic Water Well Drilling Rig HZ-130Y/130m Depth Rock Core Sampling Machine/borehole Drilling Equipment for Sale
-
HuaxiaMaster Supply HZ-130YY Hydraulic Expoloration Drilling Rig/130m Core Sampling Drilling Machine With High Quality
Product Details
| Brand Name | HuaxiaMaster | Place of Origin | China | |
| Model Number | QZ-2A | Type | Core Drilling Rig | |
| Certification | iso9001 | After-sales Service Provided | Overseas third-party support available | |
| Warranty | 6months | Weight | 95KG | |
| Dimension(L*W*H) | 600*450*1900 (mm) | Power Type | Electric | |
| Usage | Coal | Condition | New | |
| Power(W) | 3KW |
Product Description

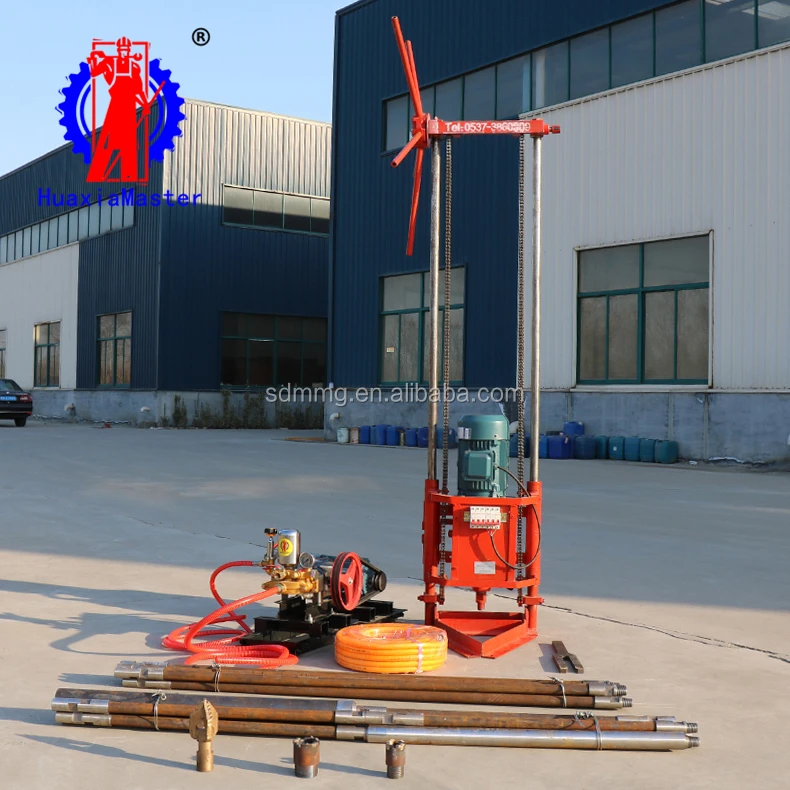

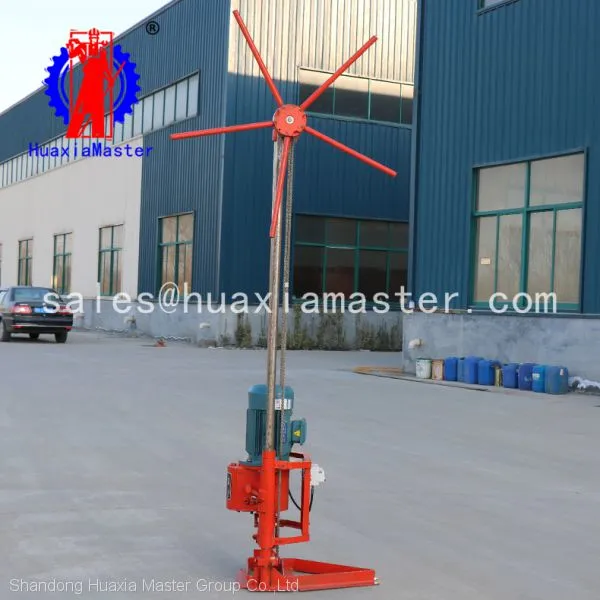

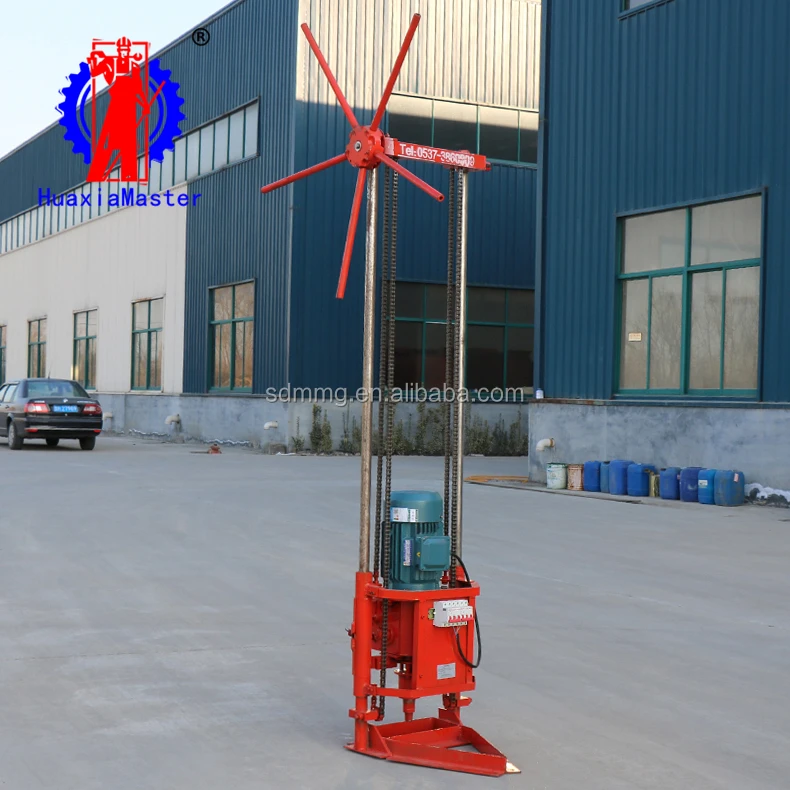

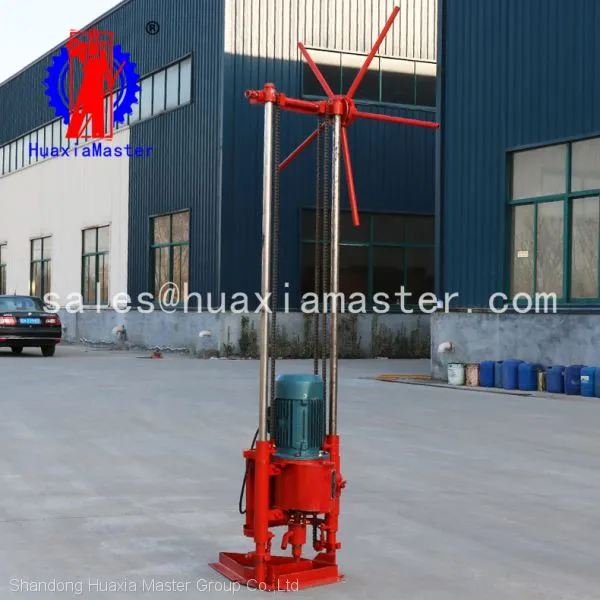

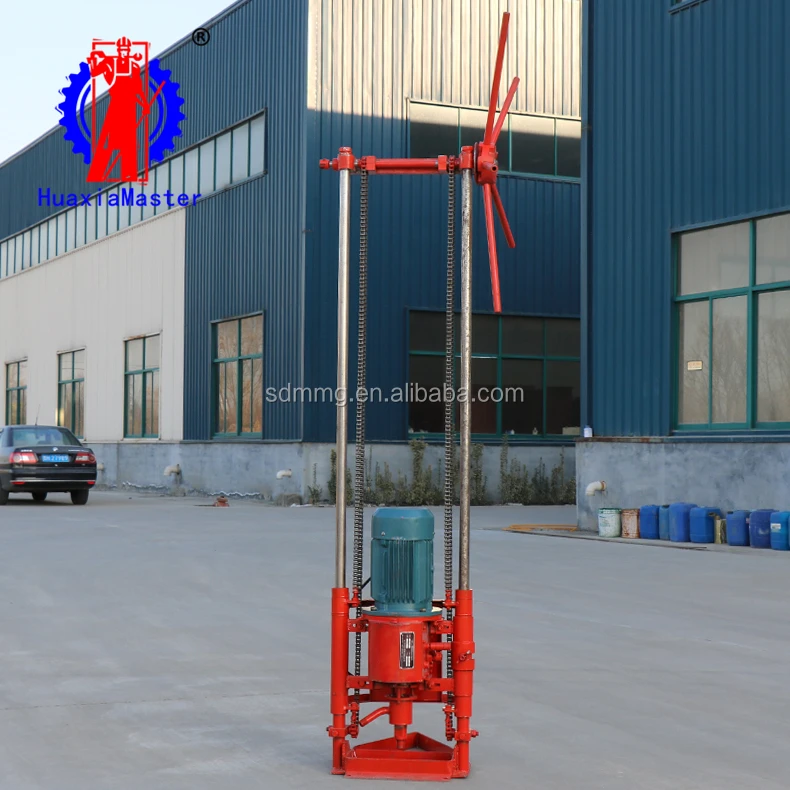

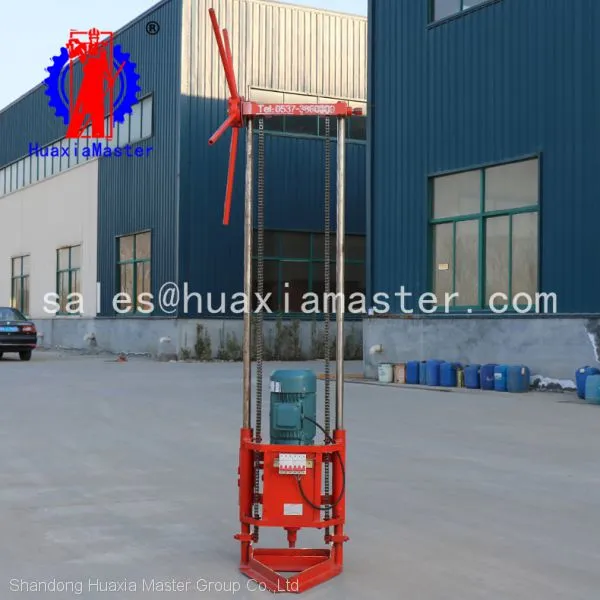

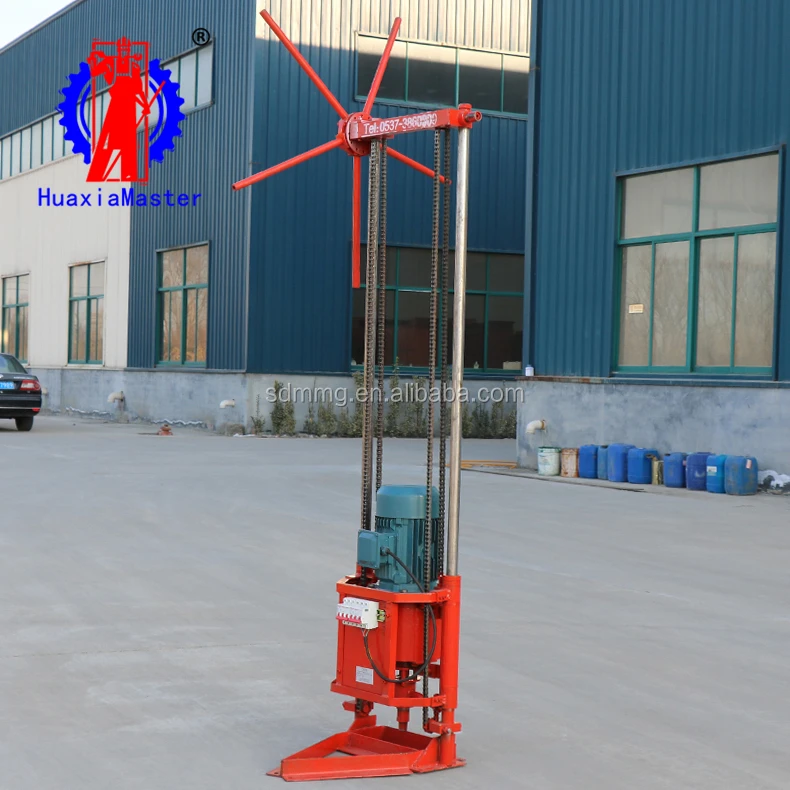

QZ-2A three phase electric sampling drilling rig
1.Brief introduction of QZ-2A three phase electric sampling drilling rig
QZ-2A is a three phase electric sampling drilling rig , produced by Shandong Master Machinery Group Co.,Ltd. It is suitable for industrial and civil buildings, bridges, railways, roads, utilities and other sectors of the geological exploration.
2. Technical parameters of QZ-2A three phase electric sampling drilling rig
QZ-2A three phase electric sampling drilling rig | |
Borehole diameter (mm) | 32-91 |
Drilling depth(m) | soilφ91:10-15m stoneφ91:5-10m stoneφ75:10-15m stoneφ60:15-20m stoneφ46:20-25m |
Drilling pipe diameter (mm) | 28 |
Rotate speed(r/min) | 185-380 |
Torque(n.m) | 80 |
Power(kw) | 3 |
Dimension(l*w*h) | 600*450*1900 |
Weight(kg) | 95 |

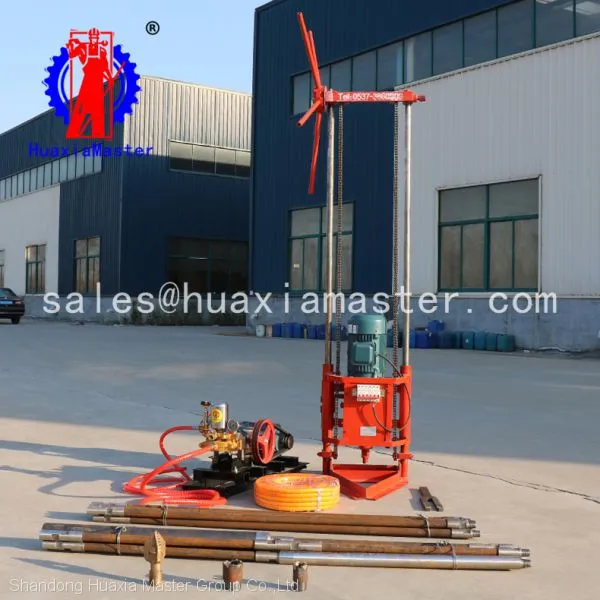

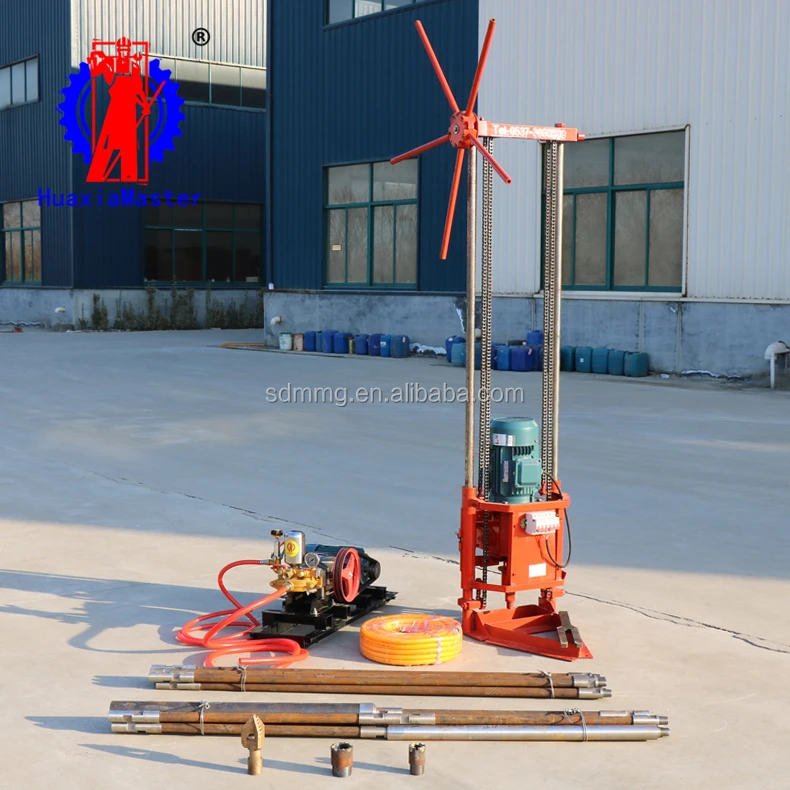

3. Configuration list of QZ-2A three phase electric sampling drilling rig
Item | Parameter | Unit | Quantity |
Three phase electric sampling drilling rig | QZ-2A | platform | 1 |
Drilling pipe | 28*1500 | pc | 6 |
Drilling pipe | 28*800 | pc | 8 |
Drilling joint | 35 | pc | 14 |
Reducing nipple | 45/35 | pc | 1 |
Core barrel | 45*800 | pc | 1 |
Alloy bit | 46 | pc | 1 |
Reducing nipple | 58/35 | pc | 1 |
Core barrel | 58*800 | pc | 1 |
Alloy bit | 60 | pc | 1 |
Three-wing bit | 0 | pc | 1 |
Safety clamp | hold | 1 | |
Water seal | Y30*50*10 | pc | 4 |
Oil seal | 17*50*10 | pc | 2 |
Control wheel | set | 1 |

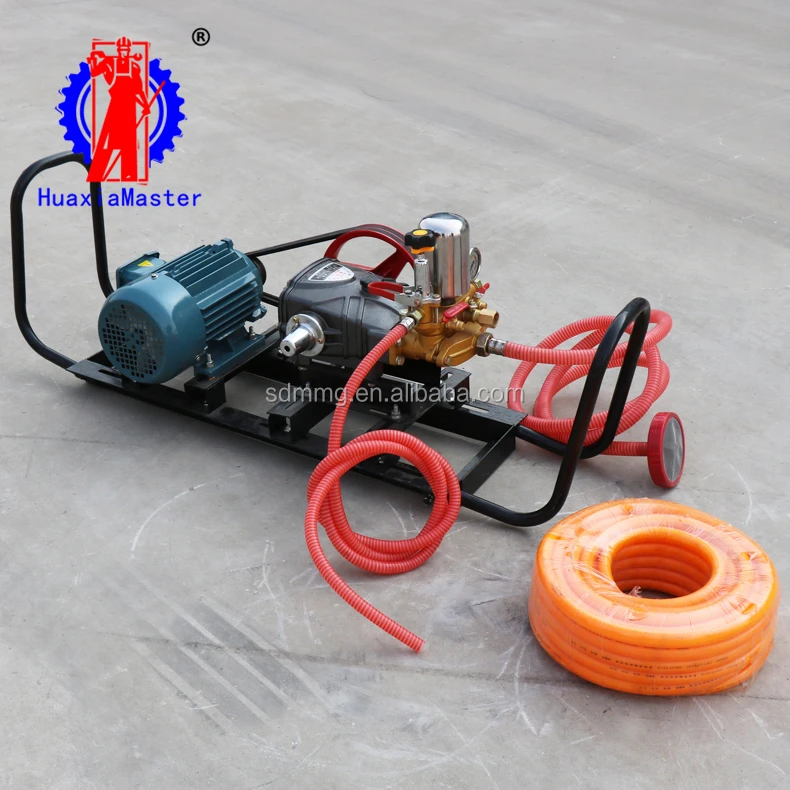

If you need a wooden base, a high pressure pump and a high pressure water pipe, please specify.
