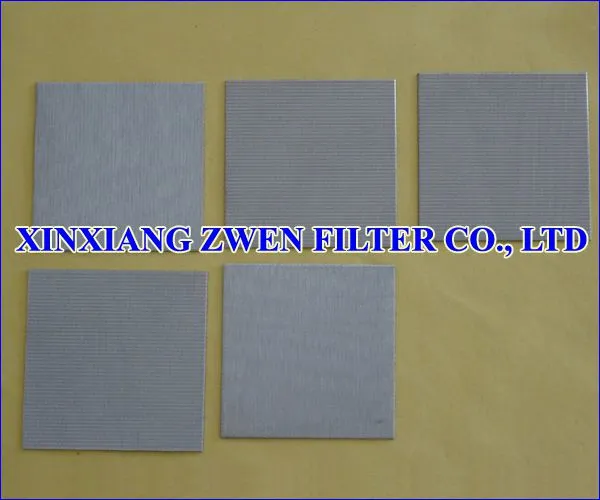

Sintered Mesh Filter Plate

Sintered Mesh Filter Plate Feature

1. Sintered mesh filter plate is made from multilayer wire mesh

2. Sintered mesh filter plate is sintered in a high temperature vacuum furnace. So wire mesh will not shed

3. Sintered mesh filter plate is a good filter media for surface filtration

4. Sintered mesh filter plate is good for backwash because the pore passage of wire mesh aperture is very smooth

5. Sintered mesh filter plate has uniform pore size distribution

6. High compression strength

7. High mechanical strength

8. High rigidity

9. High abrasion resistance

10. Good durability against most liquids, gases and aggressive steam

11. High temperature resistance

12. High filter rating accuracy

13. High filter efficiency

14. Good corrosion resistance

15. Washable and Cleanable

16. Reusable

17. Long service life

18. Easy to be welded, fabricated

19. Easy to be cutted into different shapes, such as circular, sheet

20. Easy to be made into different style, such as tube style, conical style, pleated style

Sintered Mesh Filter Plate Technical Parameter

Raw Material: SS 316L, SS 304

Filter Rating: 0.5-300 Microns

Filter Efficiency: > 99.99 %

Number of Layers: 2-20 Layers

Operation Temperature: ≤ 816 ℃

Length: ≤ 1200 mm

Width: ≤ 1000 mm

Regular Size: 500 mm*500 mm,500 mm*1000 mm,1000 mm*1000, 1200 mm*1000 mm or others

Thickness: 0.5 mm,1 mm,1.5 mm,2 mm,3 mm,5 mm or others

Application

Polyester filtration, polymer filtration, high viscosity filtration, fuels and lubricants filtration, oil filtration, steam filtration, high temperature gas filtration, high temperature liquid filtration, steam filtration, potable and process water filtration, beverages filtration, detergent filtration, solvents filtration, pharmaceutical industry, chemical industry, chemical fiber industry, food industry
