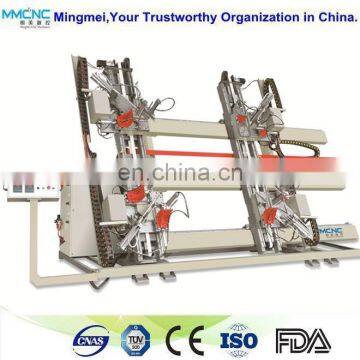

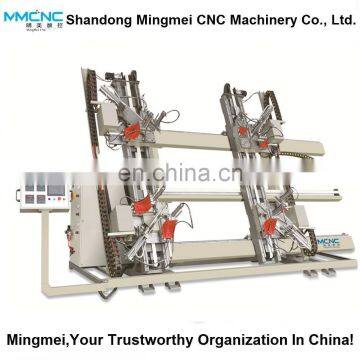

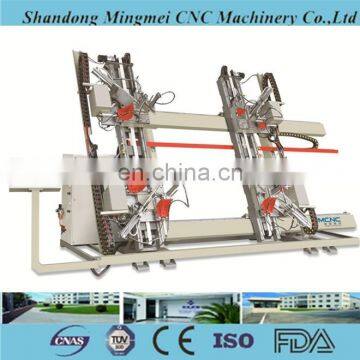

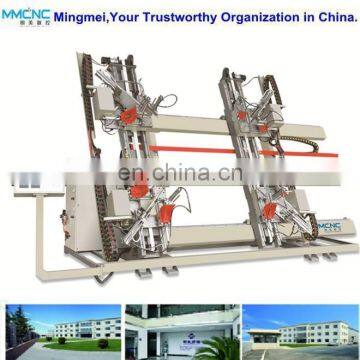

MMCNC POP CNC Four-corner Vertical Welding Machine

FOB Price

US$ 2,800 - 4,500 / Set

1 Set(Min. Order)

Port QINGDAO
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	MMCNC MAXICUT	Place of Origin	Shandong, China
Model Number	SHP4-CNC-3000X1800X120	After-sales Service Provided	Engineers available to service machinery overseas
Weight	3200kg	Voltage	380v
Power	6.5kw	Usage	welding door and window frame,fan
Dimensions	5500x1700x3000mm	Welding Area	400x400mm 1800x3000mm

Packaging Details

iron frame,plywood case,it depends on customer

Product Description

CNC Four-corner Vertical Welding Machine

SHP4-CNC-3000X1800X120

1. Feature

1.1 Automatically for rectangular plastic door and window frame, fan welding·

1.2· The effective weld height and to take the overall increase in the corresponding enhanced rigidity design, high production efficiency;·

1.3 ·Linear bearing motion pair, high precision equipment, technical performance and stability·

1.4· The unique positioning mechanism and a clamping device, ensure the welding size precision and shape precision of position of stability·

1.5· The three coated craft route, with profiles of positioning and clamping function, effectively ensure the welding finished product size precision and flatness shape and position accuracy

2. Technical Parameter

2.1. Input Power :10kw

2.2. Power supply : 380V/50Hz

2.3 Working pressure:0.5-0.8Mpa

2.4 Welding height:20-120mm

2.5 Welding weight:120mm

2.6 Welding range:300x3000mm 1800x3000mm

2.7 Overall dimension:5500x1700x3000mm

2.8 Weight:about3200kg

3. Specification

2.1	Power supply	380v 50Hz
2.2	Working pressure	0.5~0.8MPa
2.3	Welding height:	20-120mm
2.4	Welding weight:	120mm
2.5	Welding range:	300x3000mm 1800x3000mm
2.6	Input Power :	10kw
2.7	Input Power :	10kw
2.8	Overall dimension	5500x1700x3000mm
2.9	Weight	3200kg

4.Picture

5.Machine in the delivery

the part of machine

FAQ2

♣1. When can we arrange shippment?

We usually arrange shippment within 15 days after getting deopsit,

but customized machines should be more than 25 days.

♣2.What you can do if my machines have problems?

1) We can send you free components to you if your machines are in guarantee time.

2) We can send our engineers to repair your machines

♣3.Do you provide equipment operation training?

A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.

♣4. If I make Aluminum window and door, how many basic machines do i need?

1).double head cutting saw

2).Lock hole copy milling machine

3).End milling machine

4).Automatic Corner connector automatic cutting saw

5).Single head Corner combining machine
