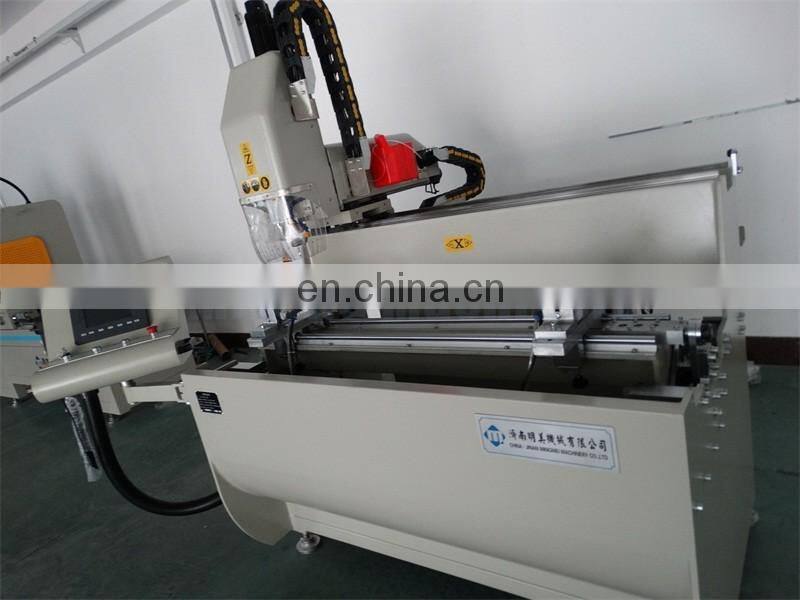

Aluminum Window Lock Hole Making Machine/Aluminium Window door Making Machine
- 70 Set / Sets per Month
- Qingdao or other port as your request
- T/T Credit Card
- CNC Heavy-duty two station aluminum profile cutting double head cutting saw for window door making
- double head cutting saw for aluminum and upvc profile/window machine
- ljz2 450x3700 Shandong Mingmei supply double head aluminium pvc cutting saw for window door
- Electronic double-head cutting off machines for aluminum
- Twin head aluminum profile cutting-off saw machines
- Aluminum Windows Machine Aluminum Profile End-Milling Machine LXDZ-250X5
Product Details
Brand Name: | Mingmei | Model Number: | SKX-CNC-1200 |
Packaging Details
Standard export packing for Aluminum Window Lock Hole Making Machine/Aluminium Window door Making Machine
Product Description
Aluminum Window Lock Hole Making Machine/Aluminium Window door Making Machine
Contact: Jessica Whatsapp/Line/cell phone: +8613225317062
1. Equipment Feature

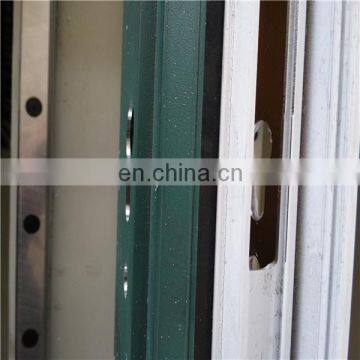

1.1 applicable for drilling holes,milling grooves,processing circular holes and special-shaped holes,plane engraving of aluminum alloy profile
1.2 System adopts Taiwan Syntec CNC Controller
1.3 Adopting electric spindle:high precision,high safety and reliablity

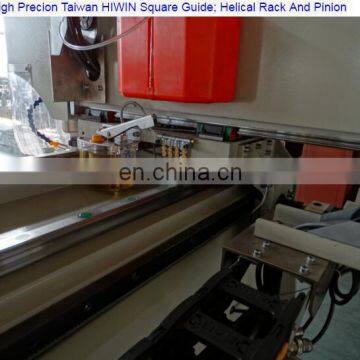

1.4 X axis adopts high-precision helical gear and rack;Y and Z axis adopt high-precision ball screw transmission and high precision
1.5 By using programming software to automatically transform and process G code;easy operation;high efficiency and low labour intensity
1.6 Workbench can turn 180°,-90°~0°~+90°;it can realize three-sides processing by clamping one time;it can process deep and special-shaped holes through workbench;high efficiency and precision.
- 2. Technical Parameter
Air Pressure | 0.5~0.6MPa |
X/Y/Z Axis stroke | 1200mm*300mm*280mm |
Input Voltage | 380V 50Hz or As Customer need |
Input Power | 3Kw |
Handle type | ER25*Φ8 |
Processing range | 100*140 |
Overall size | 2200×1500×19500mm |
Weight | 700kg |
Main accessory |
|
Control system | Taiwan Syntec |
Solenoid valve | Germany FESTO |
Cylinder | PC(FESTO Joint Venture Brand) |
Motor | Anhui Sanyang (Best Chinese Motor Brand) |
Air Filter Device | STNC |
Electrical Button and Switcher | Schneider |
AC Contactor and Circuit Breaker | Schneider |
Approach Switch | Taiwan Delta |
Guide rail | Taiwan Hiwin |
Standard accessory |
|
Cutters | 4pcs |
Air Gun | 1pc |
Complete tooling | 1set |
Certificate | 1pc |
Operation Manual | 1pc |
Video Link:
https://youtu.be/6YPB940s0j8 3 Axis CNC Processing Center For Aluminum Profile
https://youtu.be/xwDwG8uYSig 5 Axis Aluminum Processing Center MMCNC
https://youtu.be/mrBwrv2yiqo 5 Axis Thick Aluminum Profile Processing Center
https://youtu.be/LmU9itjttDo 1.2 and 3 CNC Aluminum Drilling Machine back to home point
https://youtu.be/gFBLDN2STGw 1.2 and 3 meters CNC Drilling Milling Machine Operation Connector electric and compressed air
https://youtu.be/Sgs33TXK22U 3 Meters CNC Drilling Machine How to set up tool R and Z
https://youtu.be/yO3X2pV5Qos 1.2 meters and 3 meters Aluminum Profile CNC Drilling Milling Machine Start to working
https://youtu.be/dl5RVGqn56c 6 Meters CNC Aluminum Process Center Start to working
https://youtu.be/eGtUXDL-68o Notching Saw for aluminum Profile
https://youtu.be/1YBrQfeMZYs Notching Saw For Aluminum Profile
Founded in 1995, Shangdong Mingmei CNC Machinery Co., Ltd has developed an assembly line for aluminum door, window and curtain wall equipment. With more than twenty years' production experience, Mingmei has become a leading manufacturer on window door machinery in China.
The main products include PVC/Aluminum Double-head Cutting saw, End miller, CNC Drilling milling machine, Copy router, Corner combing machine, Punching machine, bending machine, PVC welder, Corner cleaner, Water slot milling machine as well as CNC Router. and have been exporting to more than 30 countries.
OEM and ODM can be available.
Warmly welcome customers from all over the world to cooperate with us and visit to our factory.
You give us a chance, we will not let you down.
F A Q
1.Are your company a trading one or a factory?
Factory + trade (integration), 21 years' focusing on Aluminum Window and Doors Equipment field.
2.After an order is placed, when to deliver?
Generally about 15 days, If we have inventory, we can arrange shipment within 5 days.
Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to solve your problem freely;
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each machine must be carried out 100% quality examination and test before shipment.
And all machines meet ISO and CE certification.
5. If we don't know the machine operation, what should we do?
Each of our product provide video training to show you how to install & operate.
