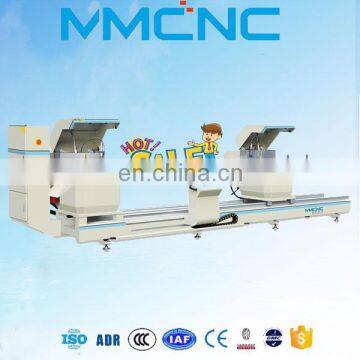

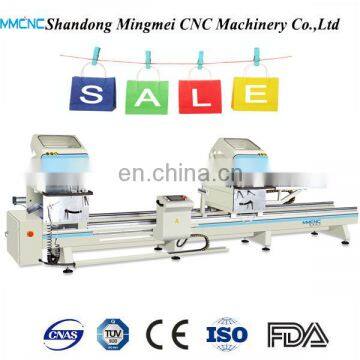

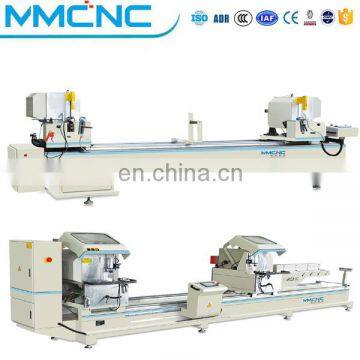

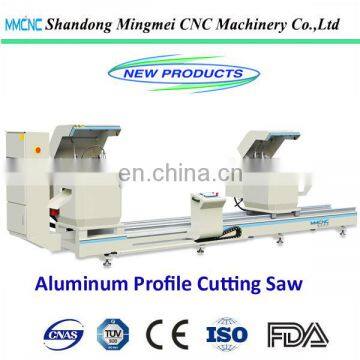

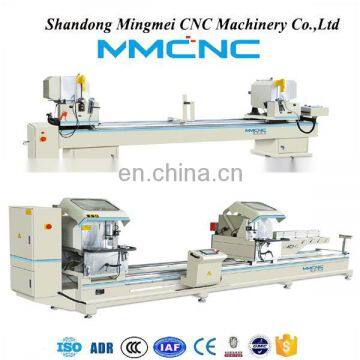

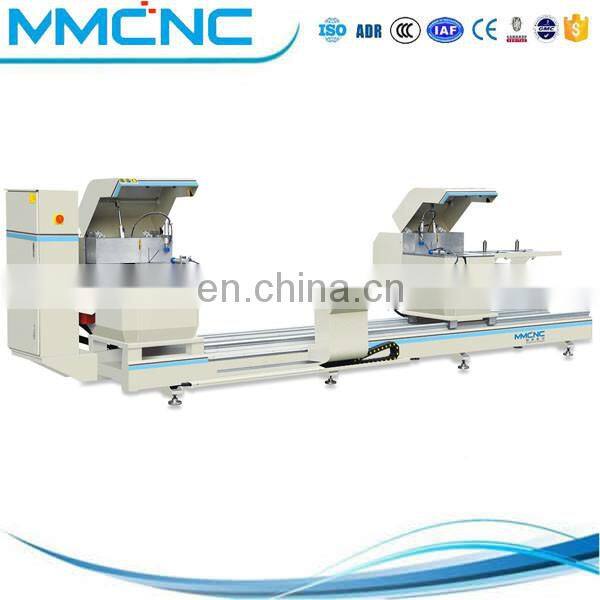

LJZ2S-500x4200 Aluminum Profile Double Head Cutting Saw

LJZ2S-500x4200(Heavy Duty)

This machine is designed for cutting any of aluminum curtain wall and windows,doors profile. The cutting angle is auto adjustable through the imported servo motor between 45°90°67.5°

1) Imported carbides blade is of accurate processing and high endurance.

2) Saw blade rotates smoothly due to high accurate main spindle.

3) Uniform speed feeding and smooth motion is due to air hydraulic damping cylinder.

4) The feeding system adopts the imported linear guide pair,with high accuracy and stability.

5) Two saw heads are adjustable and cut the profiles in 45°90°67.5°freely.

6) Auto-opening shield maked the operation safety.

7) Right heads feeding adopts pitch ball screw-lead motion, with high accurate driving,locating and smooth working.

8) This machine uses the numerical control technology, profiles of different specifications can be completed automatically under the expected size.

LJGS-500x4200

The main material for aluminum alloy curtain wall, window material 45°90° cutting, and can also be used for plastic profile cutting.

1) The use of carbide saw blades,diameter up to 500 dia, line of high speed,high precision machining.

2) Right heads feeding adopts pitch ball screw-lead motion,with high accurate driving,locating and smooth working.

3) This machine uses the numerical control technology, profiles of different specifications can be completed automatically under the expected size.

4) Machine during operation, two saw blade can but, also can separate cutting.

5) The saw head can be set to 45°and 90°need angle.

6) The blade from the bottom to the top,sawing profile is more safe and reliable,and the cutting height and cutting width are large.

Double Head Cutting Saw Configurations

LJZ2S-500x4200

LJGS-500x4200

LJZ2S-450x3300

Input power

5.9Kw

4.5Kw

Power supply

380V/50Hz or according to customer requests

Air pressure

0.5~0.8MPa

0.6~0.8MPa

0.5~0.8MPa

Motor rotary speed

2800r/min

Saw Blade specification

Θ500xΘ30

Θ500xΘ30x4.4

Θ450xΘ30

Cutting angle

45°90°67.5°

45°90°

-45°90°45°

Cutting length

400~4200mm

480~4200mm

600~3300mm

Cutting width x height

135x200mm

235x100mm

120x160mm

Weight

1613kg

1584kg

1430kg

870kg

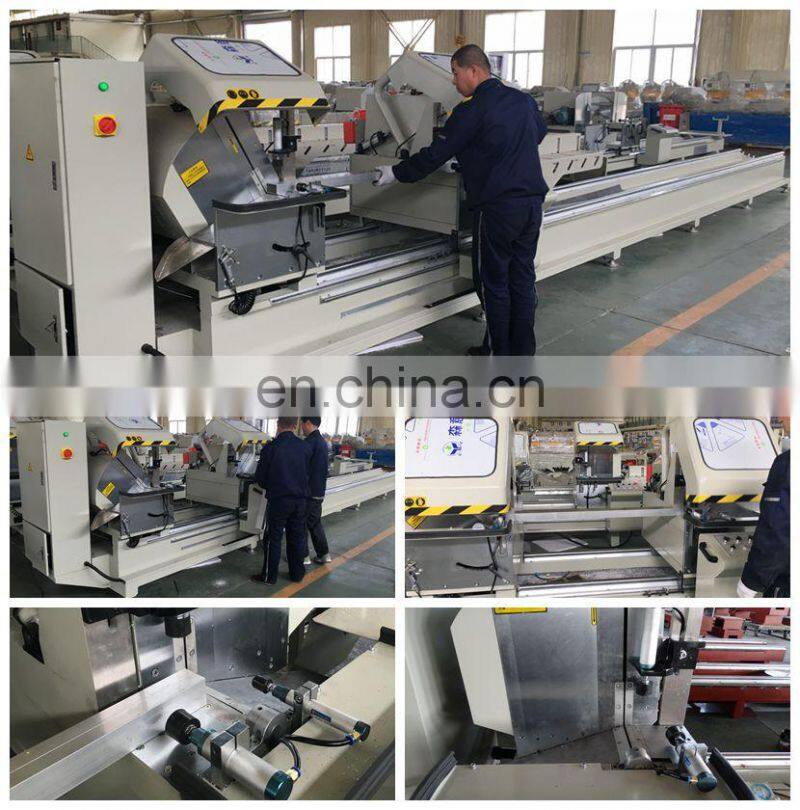

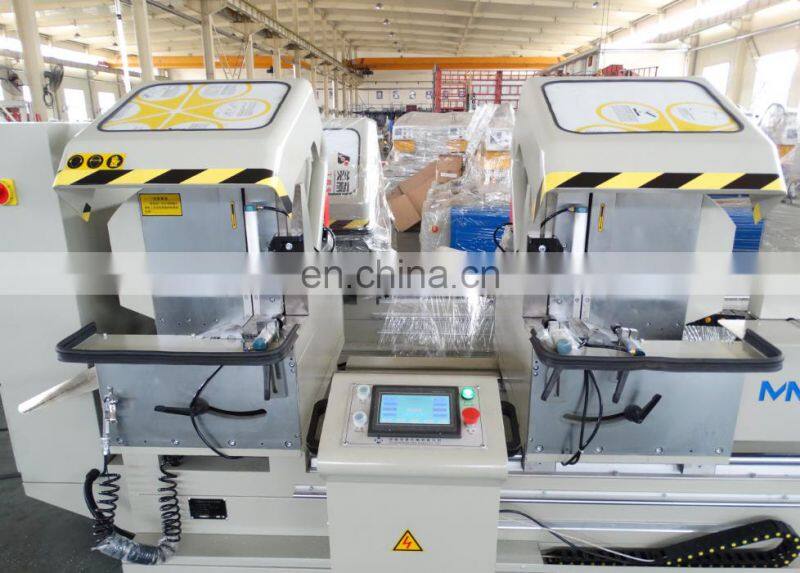

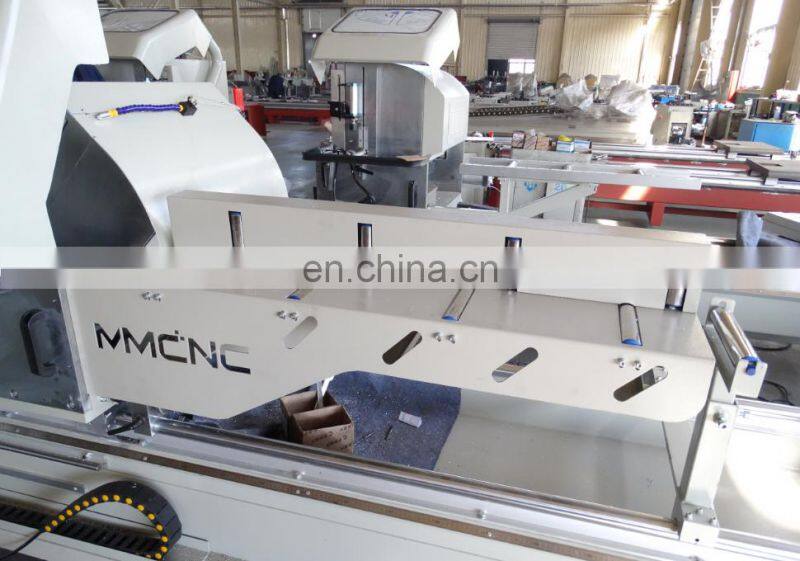

Details Showing of double head cutting saw
