Home > Manufacturing & Processing Machinery > Machine Tools > Drilling Machine > Window Door Machine Quotes

Window Door Machine Quotes

Name: Window Door Machine Quotes
Brand: MMCNC MAXICUT
SKU: 160978103
Availability: InStock

US$ 9,000 - 23,900 MOQ: 1 Set

Key Specifications

Get Latest Price

Brand Name:

MMCNC MAXICUT

Place of Origin:

Shandong, China

Model Number:

SKX3+1-CNC-3000

Contact Supplier Request Quote Chat Now

Sinon CNC Machine Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name MMCNC MAXICUT

Place of Origin Shandong, China

Model Number SKX3+1-CNC-3000

Certification CE ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Weight 610KG

Dimension(L*W*H) 2200x1600x2200mm

Voltage 380V

Condition New

Power(W) 3kw

CNC or Not CNC

Drilling Speed 18000mm/min

SKX-CNC-1200 on aluminum profile cnc milling machine price window door drilling holes

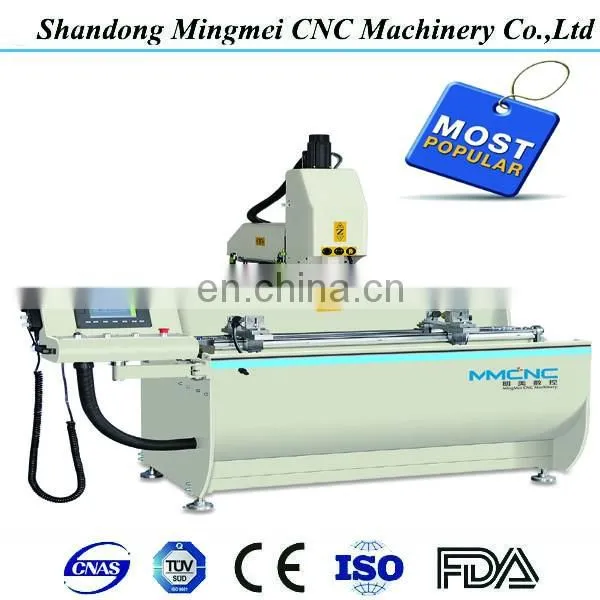

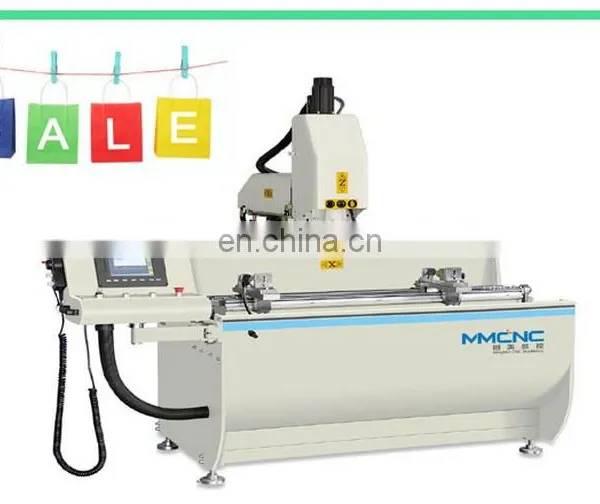

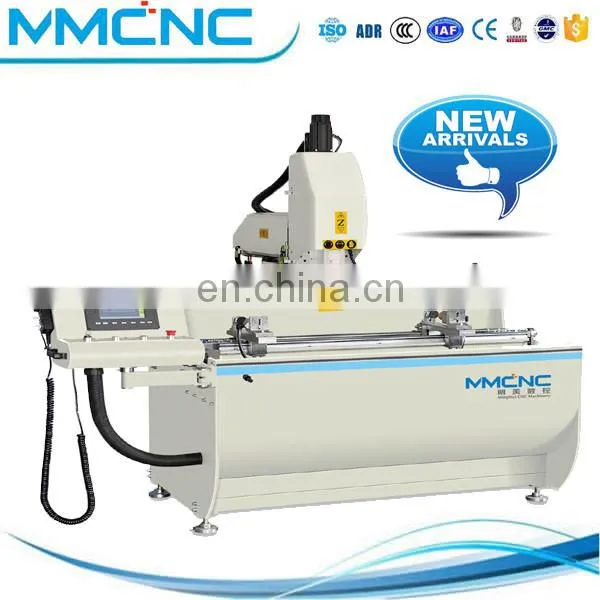

Overviews of 3 Axis Aluminum CNC Drilling Milling Machine

Features of 3 axis cnc processing center for aluminium profile:

1.1 Applicable for drilling holes, milling grooves, processing circular holes and special-shaped holes, plane engraving of aluminum alloy profiles.
1.2 System adopts Taiwan Syntec CNC controller.
1.3 Adopting electric spindle; high precision, high safety and reliability
1.4 X axis adopts high-precision helical gear and rack; Y and Z axis adopt high-precision ball screw transmission; steady transmission and high precision.
1.5 By using programming software to automatically transform and process G code; easy operation; high efficiency and low labor intensity.
1.6 1200mm/3000mm Workbench can turn 180°, -90°~0 °~+90°; It can realize three-sides processing by clamping one time; it can process deep and special-shaped holes through workbench; high efficiency and precision.

1. Some aluminum profile drawings of our customer for your reference.

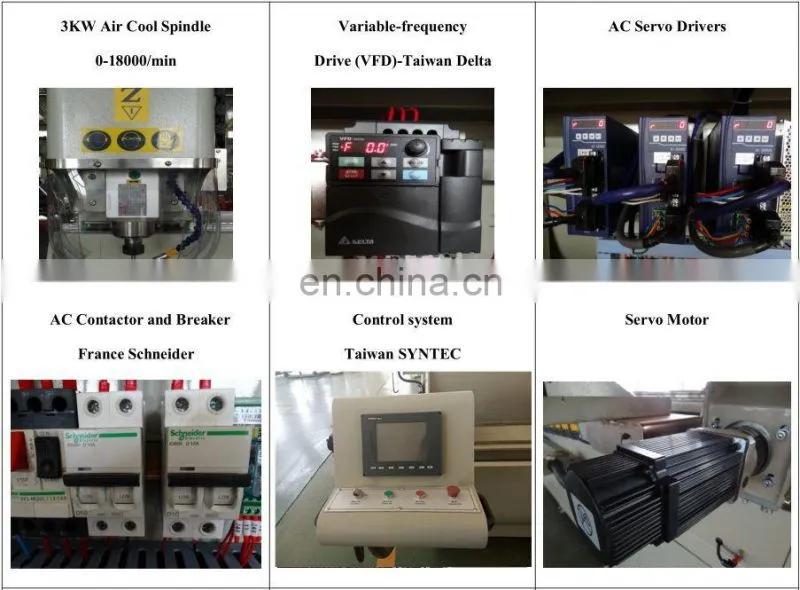

2. Detail Parts of Aluminium Profile CNC Milling Machine

3. Every CNC Machine will have a English Operation Manual as well as video for you.

4.Testing Samples of Aluminiun CNC Drilling Milling Machine

5. Packaging & Shipping of Vertical Aluminum CNC Machining Center

View more>

Related Products of Aluminum Profile CNC Machinery

" href="https://img13.fr-trading.com/msgsend/contact.htm?action=contact_action&domain=1&id=60532623143&id_f=IDX1nIbhOiJrl90Suo1KA8LSDh9C8PCycUquFS8lZQnTtSmJe8h3OXMggNNTGwVCpj-X&mloca=main_en_detail&tracelog=tracedetailfeedback&umidToken=B3c6a48b4e27851b28abdfbb469b3e407" target="_blank">Contact us now >

SPECIFICATIONS OF ALUMINUM MILLING MACHINE

Shandong Mingmei Aluminium CNC machine is designed for processing round holes,slots,keyhole etc on aluminum profile,window door and curtain wall industry,it is also suitable for processing milling charfering,engarving plane surface and other procedure. MINGMEI focus on the quality of CNC machine and details to creating the value to customers.
Model	SKX-CNC-1200/3000	LCJG3+1-CNC-3000	LCJG3-CNC-6000
Air Pressure	0.5~0.6MPa	0.5-0.8Mpa	0.5-0.8Mpa
Power supply	380v/50hz	380v/50hz	380v/50hz
Total Power	3Kw	12Kw	12Kw
Spindle	China 3Kw air-cooling	Italy HSD 9Kw/7.5Kw	Italy HSD 9Kw/7.5Kw
Max rotary speed	18000/mim	24000/min	24000/min
X-axis Journey	1200mm/3000mm	3000mm	6000mm
Y-axis Journey	300mm	500mm	500mm
Z-axis Journey	280mm	350mm	350mm
X axis Speed	50000mm/min	50000mm/min	50000mm/min
Y and Z Speed	15000mm/min	15000mm/min	15000mm/min
Cutter handle:	ER25	ER32	ER32
Cutter magazine	None	6 cutter positions	6 cutter positions
Processing range	100x140mm	200x200	200x200
Overall dimension	2200x1500x1950mm	4180x1600x2200mm	7100 x 1600 x 2200mm
Weight	about 610kg	about 1400kg	about 2360kg

View more>

Our Services of Aluminum CNC Drilling Milling Machine

-Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.

* Design drawing of the factory workshop
* View our Factory.

-After-Sales Service

* One year warranty time, we can repair and replace parts for free in one year.
* Free training course at our factory with professional engineers.
* Technical support in 24 hours online, TM, Skype, E-mail solving the relative questions in time.

* Engineers available to service machinery overseas.

* We provide the consumable parts at agent price when you need replacement.

-Are you manufacturer or trade company?
*We are factory.Factory starts from 1995.For more company introduction click here>

-How I can get suitable Machine?

Please give me your followed information:

*First: Please tell us what's your max working area (L*W*H),
*Second: Please send us your profile drawing.Its very important.
Those two answers will help us choice suitable CNC machine for you.

If you are new farmer, no idea, contact us, our service department will guide you.

-What's your payment methods?

*L/C, 30% deposit by T/T,70% spare payment L/C.
*T/T, 30% deposit by T/T,70% spare payment before shipment.
* Western Union,Trade Assurance...

Quality Control

Quanlity Control of Aluminum CNC Drilling Milling Machine

SHANDONG MINGMEI CNC selected each part carefully. What's important is that we have our own sheet-metal workshop and machanical department. We are strive to quality first when machine production.

MINGMEI engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.
After machine production finished, the products will be tested in professional ways make sure its performance.So we will provide the best machine for you.

Customer Visiting

Welcome to visit our factory ! More and more clients choose MINGMEI.

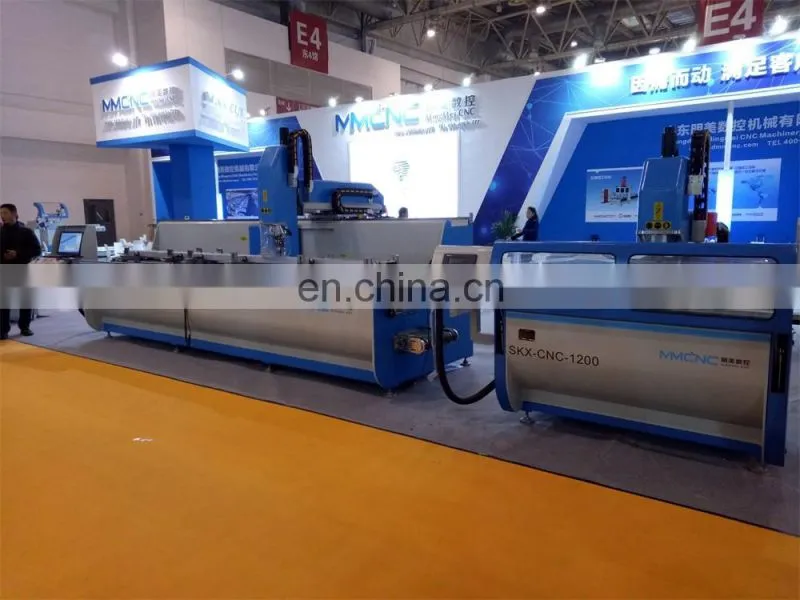

MMCNC on the Exhibition

Get in touch. Any questions about aluminum cutting machine,please call me or send enquiry.
