Home > Products > Aluminum Window-door Machine > Shandong mingmei CNC drilling machine machinery for aluminium fabrication
Shandong mingmei CNC drilling machine machinery for aluminium fabrication
- 20 Set / Sets per Month
- qingdao
- T/T Credit Card
You May Like
-
90 Degree Aluminum Cutting Saw
-
45 And 90 Degree CNC Double head Saw
-
Aluminum Profile Precision CNC Double Head Saw
-
Aluminium and PVCU Window Fabrication Machinery Aluminium Cutting Saw Machine
-
Mexico aluminium copy router machine
-
Colombia manual triple drill copy routing machine for pvc aluminium window door
Product Details
| Brand Name | MMCNC | Place of Origin | Shandong, China | |
| Model Number | SKX-CNC-1200 | Certification | CE ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas | Weight | 610kg | |
| Dimension(L*W*H) | 2200*1500*1950mm | Voltage | 220V/380V | |
| Condition | New | Power(W) | 3Kw | |
| CNC or Not | CNC | Drilling Speed | 18000rpm |
Plastic film, wooden box or as customer's request for Shandong mingmei CNC drilling machine machinery for aluminium fabrication.
Product Description

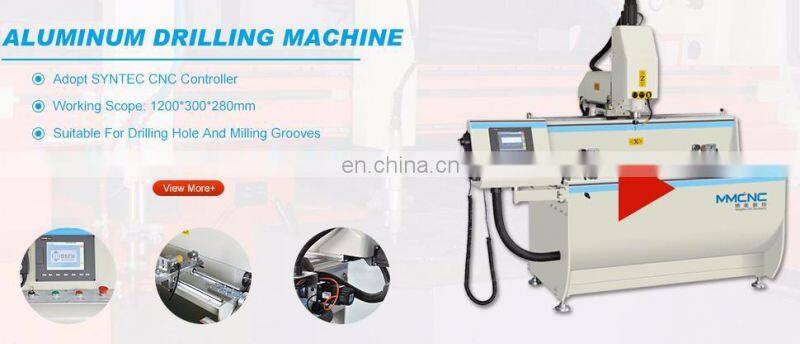

Shandong mingmei CNC drilling machine machinery for aluminium fabrication
1. Features of 3 axis cnc drilling milling machine for aluminium profile:
1.1 Applicable for drilling holes, milling grooves, processing circular holes and special-shaped holes, plane engraving of aluminum alloy profiles.
1.2 System adopts Taiwan Syntec CNC controller.
1.3 Adopting electric spindle; high precision, high safety and reliability
1.4 X axis adopts high-precision helical gear and rack; Y and Z axis adopt high-precision ball screw transmission; steady transmission and high precision.
1.5 By using programming software to automatically transform and process G code; easy operation; high efficiency and low labor intensity.
1.6 1200mm/3000mm Workbench can turn 180°, -90°~0 °~+90°; It can realize three-sides processing by clamping one time; it can process deep and special-shaped holes through workbench; high efficiency and precision.

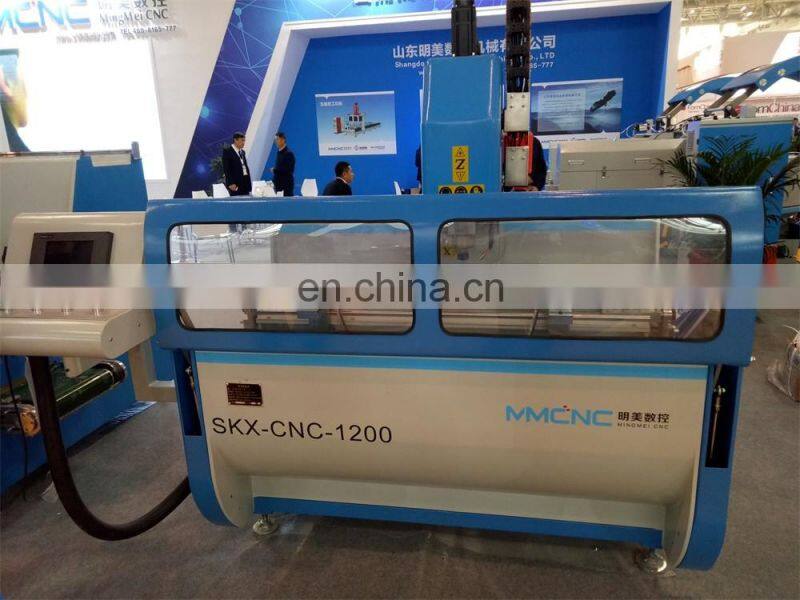

Real photo of 3 axis Aluminium Profile CNC Drilling Milling Machine

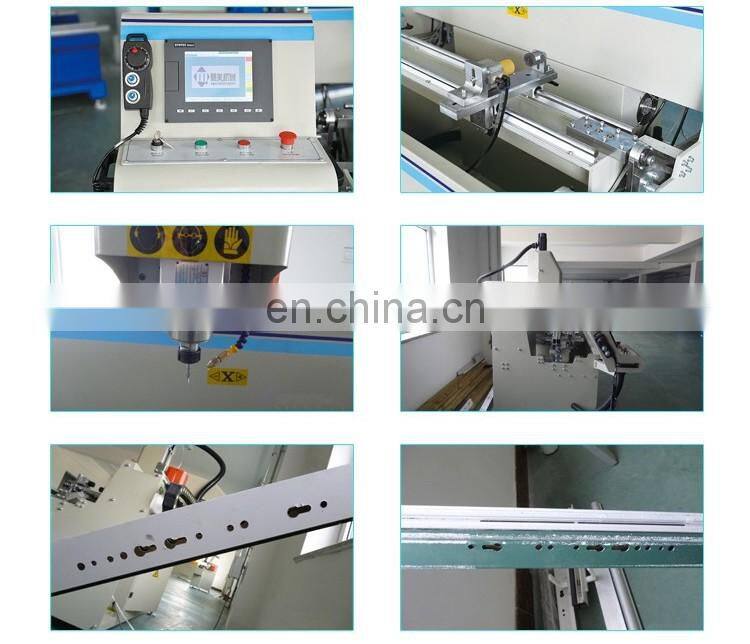

2. Details parts of Aluminum Profile CNC Processing Center
3.Some aluminum profile drawings of our customer for your reference.
PLS pay more attention, because we have different types of machine, so please send us your aluminum profile drawings to analyze and confirm before the order, thanks!
4.Packing & Shipping of Aluminum CNC Machining for drilling milling holes
SPECIFICATIONS OF ALUMINUM MILLING MACHINE
Model | SKX-CNC-1200/3000 | LCJG3+1-CNC-3000 | LCJG3-CNC-6000 |
| Air Pressure | 0.5~0.6MPa | 0.5-0.8Mpa | 0.5-0.8Mpa |
| Power supply | 380v/50hz | 380v/50hz | 380v/50hz |
| Total Power | 6Kw | 12Kw | 12Kw |
| Spindle | China brand 3Kw | Italy HSD 9Kw/ | Italy HSD 9Kw |
| Max rotary speed | 18000/mim | 24000/min | 24000/min |
| X-axis Journey | 1200mm/3000mm | 3000mm | 6000mm |
| Y-axis Journey | 300mm | 500mm | 500mm |
| Z-axis Journey | 280mm | 350mm | 350mm |
| X axis Speed | 50000mm/min | 50000mm/min | 50000mm/min |
| Y and Z Speed | 15000mm/min | 15000mm/min | 15000mm/min |
| Cutter handle: | ER25 | ER32 | ER32 |
| Cutter magazine | None | 6 cutter positions | 6 cutter positions |
| Processing range | 100x140mm | 200x200 | 200x200 |
| Overall dimension | 2200x1500x1950mm | 4180x1600x2200mm | 7100 x 1600 x 2200mm |
| Weight | about 610kg | about 1400kg | about 2360kg |
View more>
Shandong Mingmei CNC Machinery Co., Ltd. Was founded in 1995, located in Jinan economic dev. Zone. Company cover an area of 70000 square meters and 208 staffs.
As leading manufacturer of industrial aluminum equipment which is a modern private enterprise specialized in technology development,machinery manufacture and product sales.
SHANDONG MINGMEI CNC selected each part carefully. What's important is that we have our own sheet-metal workshop and machanical department. We are strive to quality first when machine production.
MINGMEI engineers have years of experience in window machine fabrication, which makes the precision and stability better than others.
After machine production finished, the products will be tested in professional ways make sure its performance.So we will provide the best machine for you.
Welcome to visit our factory ! Abroad customers came to our factory for training and guidance.
MMCNC on the Exhibition:Shanghai,Beijing,Guangzhou,Korea...
-Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Design drawing of the factory workshop
* View our Factory.
-After-Sales Service
* One year warranty time, we can repair and replace parts for free in one year.
* Free training course at our factory with professional engineers.
* Technical support in 24 hours online, TM, Skype, E-mail solving the relative questions in time.
* Engineers available to service machinery overseas.
* We provide the consumable parts at agent price when you need replacement.
-Are you manufacturer or trade company?
*We are factory.Factory starts from 1995.For more company introduction click here>
-How I can get suitable Machine?
Please give me your followed information:
*First: Please tell us what's your max working area (L*W*H),
*Second: Please send us your profile drawing.Its very important.
Those two answers will help us choice suitable CNC machine for you.
If you are new farmer, no idea, contact us, our service department will guide you.
-What's your payment methods?
*L/C, 30% deposit by T/T,70% spare payment L/C.
*T/T, 30% deposit by T/T,70% spare payment before shipment.
* Western Union,Trade Assurance...
