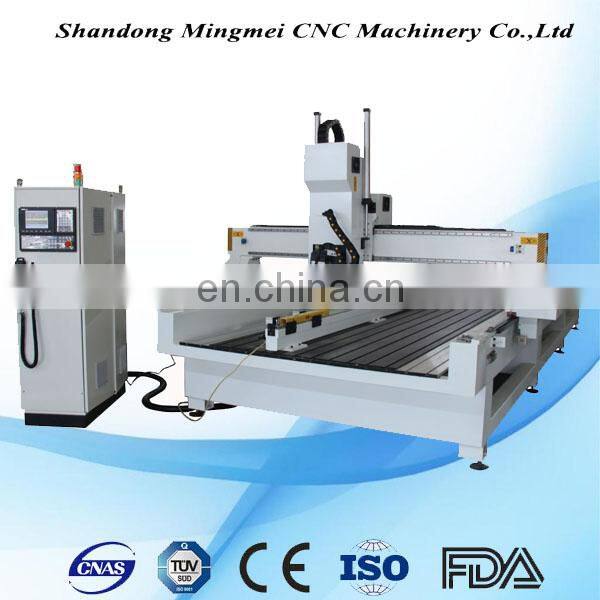

4 axis cnc router machine
Applicable Industry and materials of cnc router:
1) Mould: wood,wax, wood, gypsum,foams,wax
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,
instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Machine configurations of cnc router:
1.HSD spindle ----original famous brand from Italian,also can choose Kolumb spindle
2.SYNTEC control system------It is from Taiwan with high performance and competitive price
3.Yaskawa servo motor and drives----They are from Japan with high precision and long life
4.HIWIN linear guide ------ made from Taiwan,used for linear reciprocating stadium
5.Working area:1300*2500*400mm
C Rotary Axis:360o
6.Whole cast steel structure thicken to 8mm
7.Drive System: X,Y-Rack Z-Ball Screw,Z with high precision ball screw
8.Automatic Tool Calibration - ----To guide rail and slide block , make it run better
9.Schneider electrical components - ----original brand from France
10.Japanese Omron Switch with long life
11.APEX Reudcer from Taiwan----More powerful and higher precision
12. T-Slot table with Aluminum sheel - -----Use clamp fixed materials
Technical Parameter of cnc router:
Technical Data | ||
NO |
Description |
Parameter |
1 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
2 |
X,Y,Z Re-positioning Accuracy: |
±0.03mm/300mm |
3 |
Max. Rapid Travel Rate |
80000mm/min |
4 |
Max. Working Speed |
45000mm/min |
6 |
Spindle Speed |
0-24000RPM |
7 |
Command Language |
G Code |
8 |
Flash Memory |
512M |
9 |
Collet |
ER32 |
10 |
X,Y Resolution |
<0.03mm |
11 |
Running Environment Temperature |
0 - 45 Centigrade |
12 |
Relative Humidity |
30% - 75% |
Parts of cnc router:
- Top quality Japan Yaskawa Servo Motors:
- Taiwan HIWIN square guides:
Working Samples:
Our Certificates:
MingMei At Exhibition:
1. 12 months guarantee of the whole cnc router machine,We will provide the consumable parts at an agency price when you need replacement.
2. Our engineer could support you technology to your contry if necessary.
3. Our enginner could service on weekend even on vacation.
4. Our engineer could train you on at our factory for free.
5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.
