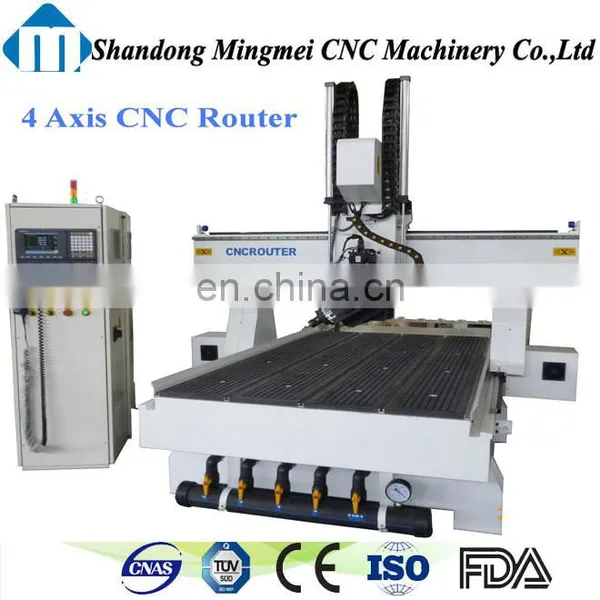

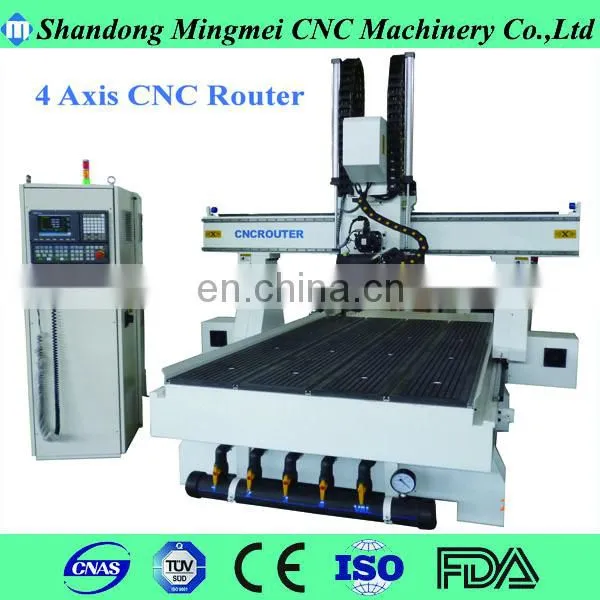

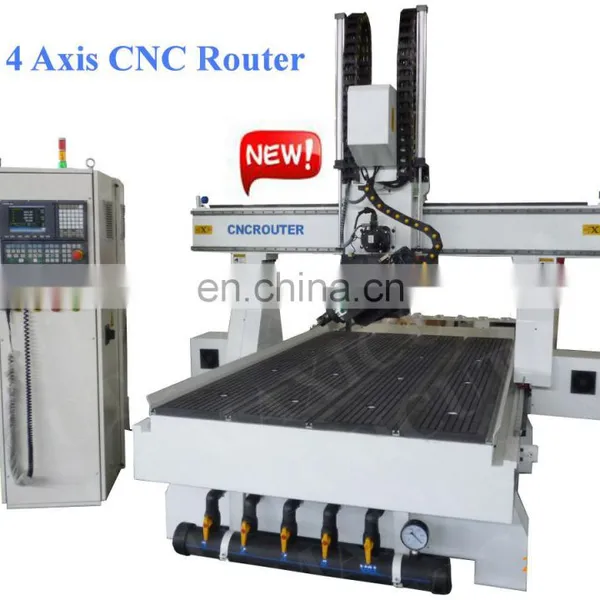

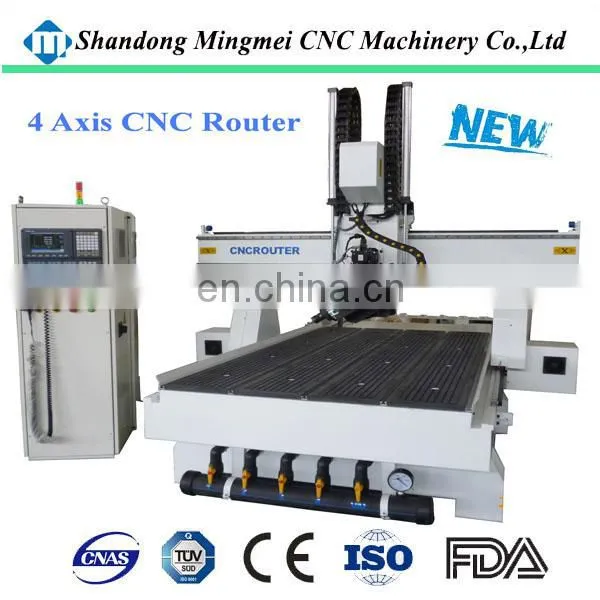

multi headthree process carpentry machine 1325-3 cheap cnc1325 three process cnc router simple atc wood engraving machine
1.Standard Feature
1. The lathe bed of the cnc router MM1325 -4 axis is strong and without distortion.
2. X,Y axIs transmission with gear rack, Z axis transmission with ball screws, ensures stable and smooth movement of the cnc router MM1325-4 axis.
3. Double motors and drivers of Y axis ensure steady movement.
4. Application of driver with high definition subdivision ensures fast speed and high accuracy.
5. High power HSD spindle, brushless, air cooling, working vigorously with low noise.
This Techinical Parameters for ATC
| Number | Description | Parameter |
| 1 | Working Area | 1300*2500*400 mm, 180 degree |
| 2 | Table Size | 1650*3540mm |
| 3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| 4 | X,Y,Z Repositioning Accuracy: | ±0.03mm |
| 5 | Table Surface | Vacuum and&T-slot Combined (Option: T-slot Table) |
| 6 | Frame | Big Steel Tube Structure |
| 7 | X, Y Structure | Rack and Pinion Drive, |
| Hiwin Rail Linear Bearings | ||
| 8 | Z Structure | Hiwin Rail Linear Bearings and Ball Screw |
| 9 | Max. Power Consumption | 4.5Kw (Without Spindle) |
| 10 | Max. Rapid Travel Rate | 40000mm/min |
| 11 | Max. Working Speed | 30000mm/min |
| 12 | Spindle Power | 9.0KW HSD ATC air cooling spindle |
| 13 | Spindle Speed | 24000RPM |
| 14 | Drive Motors | 850W Yaskawa Servo Motors |
| 15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| 16 | Command Language | G Code |
| 17 | Operating System | Syntec Control System |
| 18 | Computer Interface | Ethernet,CF card |
| 19 | Flash Memory | 512M |
| 20 | Collet | ER32 |
| 21 | X,Y Resolution | <0.03mm |
| 22 | Software Compatibility | Artcam software(Option:Type3 software ) |
| 23 | Running Environment Temperature | 0 - 45 Centigrade |
| 24 | Relative Humidity | 30% - 75% |
| 25 | Packing Size | 2240*2210*4050mm |
| 26 | N.W. | 2100KG |
| 27 | G.W. | 2300KG |
Yaskawa servo motor
HSD Spindle
The machine is engraving
Sample
Our Certificates:
1. 12 months guarantee of the whole cnc router machine,We will provide the consumable parts at an agency price when you need replacement.
2. Our engineer could support you technology to your contry if necessary.
3. Our enginner could service on weekend even on vacation.
4. Our engineer could train you on at our factory for free.
5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.
