5 axis cnc router 5D Five axis CNC Machining Center With Rotating Spindle for MDF,Plastic,Plywood moulds, sculpture
Applicable materials:
Mold industry: various large metalloid mould, especially suitable for automotive foam mold,
wooden ship model, wooden model aviation, rail wooden mold, wooden mold train.
Technical parameter:
Table Size |
1200*2400mm |
Operating system |
OSAI |
Spindle Power |
9KW /12KW(optional) |
Spindle Speed |
0-24000rpm/min |
X Y Z Structure |
X Y rack pinion, Z ball screw. |
Table structure |
Cast steel |
Working Mode |
Servo system |
Working command |
G code, F/S |
Working Voltage |
AC380V/50HZ,3PH |
1.1 Maximum working size: X Axis: 2400mm
Y Axis: 1200mm
Z Axis: 900mm (depending on tool length)
C Axis: ±213°
A Axis: ±120°
1.2 9.0KW Italian HSD Spindle
1.3 Drum style ATC with 8 PCS Positions
1.4 Table structure: Cast Steel Movable Table
1.5 OSAI controller system
1.6 Taper hole in the spindle HS655
1.7 X, Y, Z Structure: Japan-made THK Guide rail 30
1.8 TBI ball screw made in Taiwan
1.9 Delta Inverter made in Taiwan
1.10 YASKAWA Servo system
1.11 Schneider Electronic spare parts
1.12 APEX reducer made in Taiwan
1.13 Japan NSK and France SKF bearing
2. Detailed Photos

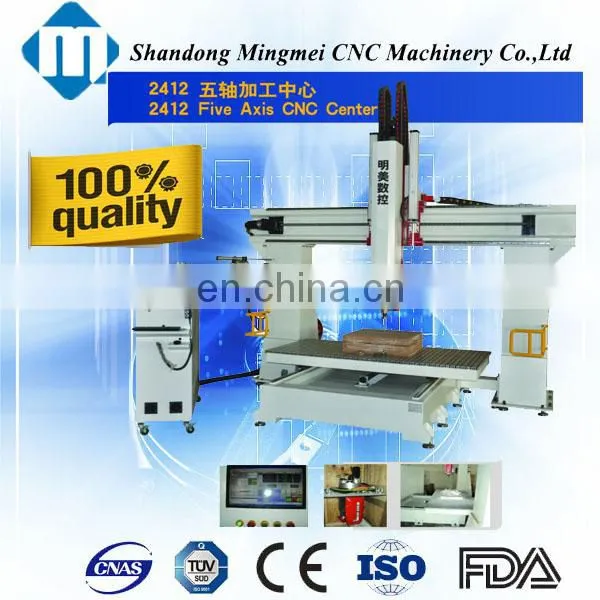

1. The Overall photos
2. HSD Main spindle
3. Control box-Delta inverter; YASKAWA servo system; Schneider AC contactor
3.Samples:
1)One year warranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2) Maintenance free of charge during lifespan.
3)Free training course at our plant.
4).We will provide the consumable parts at an agency price when you need replacement.
