5D Five axis 3d& 4d wood carving cnc machine wood and foam mould making 4 axis cnc router with Rotating Spindle for Plastic moulds, sculpture
Applicable materials:
1. Furniture industries: cabinet doors, wooden doors, solid woods, antique furniture.
2. Decoration industries: screens, wave boards, advertising boards and sign making.
3. Arts & Crafts industries: Engrave on artificial stones, woods, bamboos, marbles.
4. Processing material: engraving, milling and cutting processing for acrylic, PVC,artificial stonesplastics and soft metal sheets suv.
Technical Datasheet
Model Name | 1224-5axis CNC Router | ||
1 | Movement type |
| Movable table |
2 | Working area(MM):X*Y*Z |
| 1200*2400*900MM |
3 | Travel ling | C Axis | ±213° |
A Axis | ±120° | ||
4 | Beam spacing(mm) |
| 2750 |
5 | Beam Height(mm) |
| 1500 |
6 | Double pendulum head type |
| HS652 |
7 | Supplier for Double pendulum head |
| HSD |
8 | Output power of spindle |
| 12KW |
9 | 12.0KW Italian HSD Spindle speed |
| 24000R/M |
10 | Servo system |
| YASKAVA servo system |
11 | Inverter |
| Delta inverter |
12 | Table size(mm) |
| 1200*2400 |
13 | Material of Table |
| Aluminum profile |
14 | Material fixed Type |
| T-Slot |
15 | Tool magazine |
| Rotary tool magazine(8positions) |
16 | Cutter specifications |
| HSK.F63.ER40 |
17 | Control system |
| OSAI |
18 | Minimum training period for operator |
| 2 weeks |
19 | Programming Softwares |
| AlphaCAM |
20 | Software version |
| V7 |
21 | Machine size |
| 4260*2150*3300mm |
22 | Total weight |
| 12T |
23 | Total power(kw) |
| 30KW |
24 | Voltage |
| AC 3P 380V 50HZ |
25 | Efficiency File Conversion(hr/day) |
| 0.5 |
26 | Maximum speed | X Axis | 60m/min |
Y Axis | 60m/min | ||
Z Axis | 30m/min | ||
C Axis | 2700°/min | ||
A Axis | 2700°/min | ||
Detailed Photos

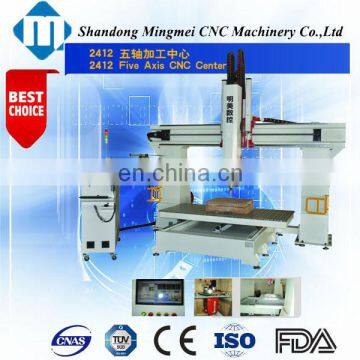

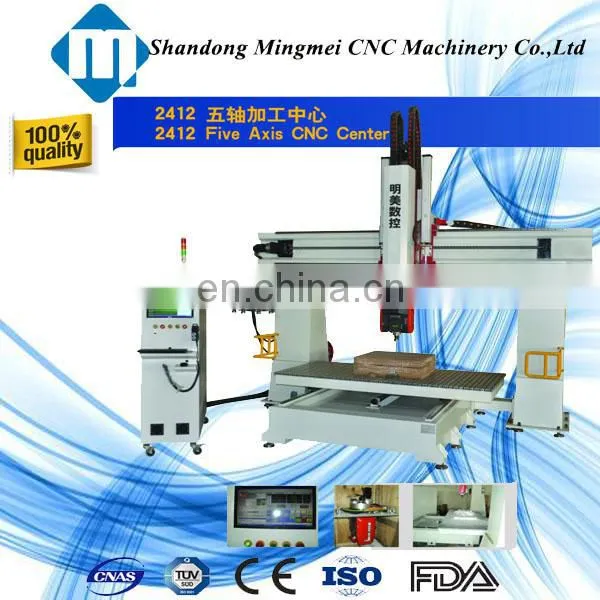

1. The Overall photos
2. HSD Main spindle 18KW
3. Disc tool magazine with HSD HSK F63 tool holder; Cutting Saw Blade
4.Table movemtn with stainless steel dust proof
4.Automatic oil lubracation system; Mist spray
3.Samples:
1)One year warranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2) Maintenance free of charge during lifespan.
3)Free training course at our plant.
4).We will provide the consumable parts at an agency price when you need replacement.
