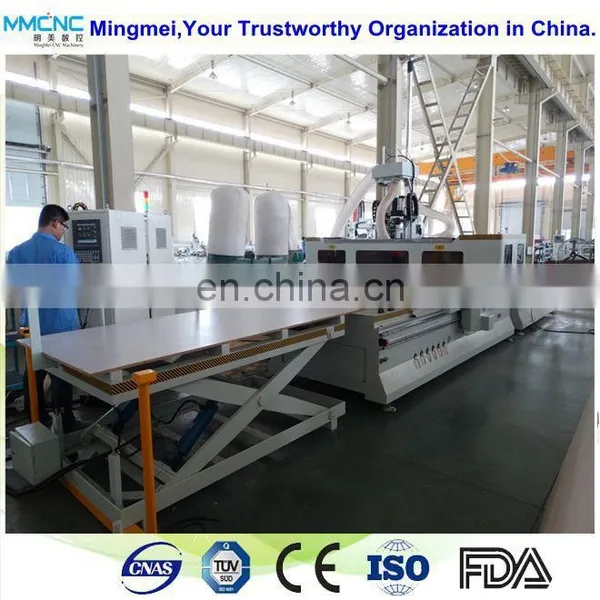

1.Main Features for our 3 axis wood CNC router

The machine is a processional CNC equipment,which is used for drilling on the side of material and processing on the circular arc material.It can drill the hole on the side of the door plank,mill slot,it also used for the drilling the hole and milling the slot on the three sides of the aliminum profile.

1.1  HSD spindle ----original famoue brand from Italian,also can choose  Kolumb spindle

1.2  SYNTEC control system------It is from Taiwan with high performance and competitive price

1.3  Yaskawa servo motor and drives----They are from Japan with high precision and long life

1.4  HIWIN linear guide ------ made from Taiwan,used for linear reciprocating stadium

1.5  Working area:1300*2500*200mm C Rotary Axis:360o

1.6  Whole cast steel structure thicken to 8mm

1.7  Drive System: X,Y-Rack Z-Ball Screw,Z with high precision ball screw

1.8  Automatic Tool Calibration - ----To guide rail and slide block , make it run better

1.9  Schneider electrical components - ----original brand from France

1.10 Japanese Omron Switch with long life

1.11 APEX Reudcer from Taiwan----More powerful and higher precision

1.12 T-Slot table with Aluminum sheel - -----Use clamp fixed materials

2.Specifications for 3 axis wood CNC router

1

Model

MM- 1325 loading

2

X,Y Working Area

1300x2500mm

3

Z axis travel

200mm-700mm(according to your requests)

4

Table Surface

Vacuum and T-slot Combined(double use)

5

Frame

Thicken steel Square Tube Heavy structure ,15mm thicken steel gantry with T type

6

X, Y Structure

Helical Gear and rack transmission, Taiwan HIWIN Linear Rail

7

Z Structure

Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail

8

Spindle Power

China top brand Water cooling spindle / Italy HSD Air cooling spindle

9

Spindle Speed

0-24000RPM / 0-18000RPM

10

Drive Motors

Stepper Motor Driver/ Servo Motor Driver

11

Working Voltage

AC220V/380V  1PH/3PH  50/60Hz,

12

Command Language

G Code

13

Operating System

Mach3 / NCstudio / DSP / Taiwan SYNTEC control system

14

Computer Interface

USB port

15

Flash Memory

512M

16

Collet

ER20/ER25/ER30

17

Inverter

China top brand Fuling inverter / Taiwan Delta inverter

18

Software Compatibility

Type 3 /Artcam

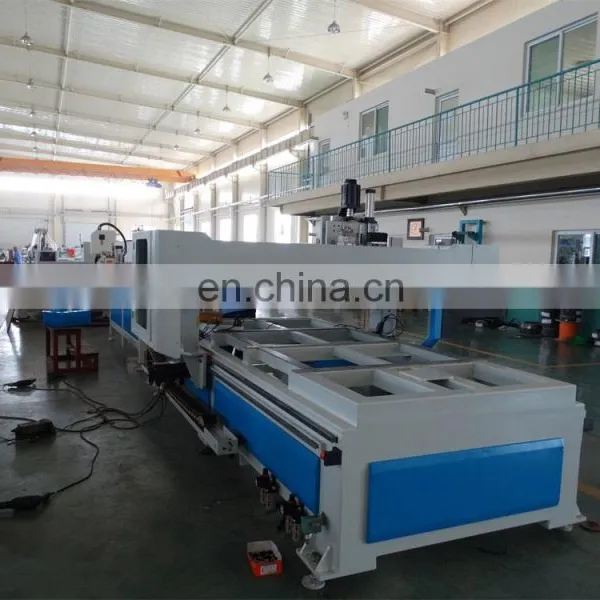

3.Detailed Images for your reference

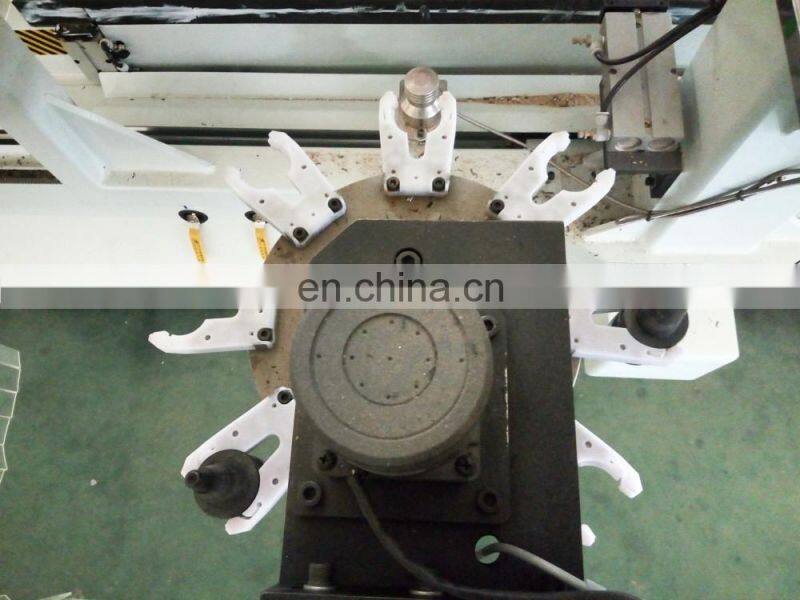

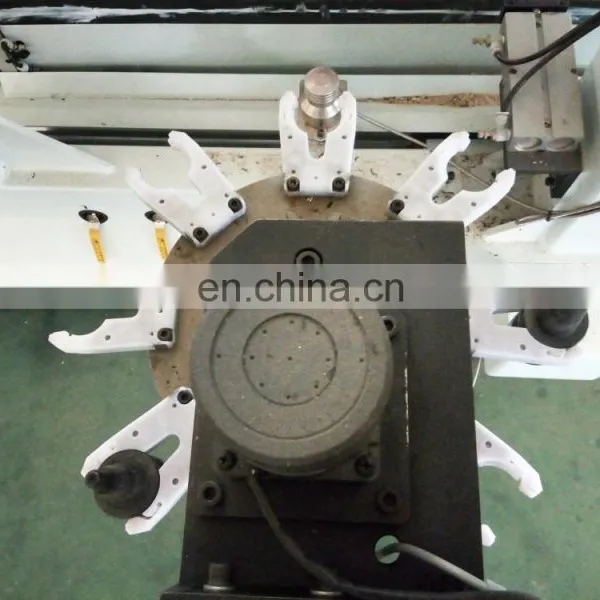

                                                                                                Disc tool magazine,8 sets/16 sets

4.Application industry and materials of cnc router

5.Certifications of Mingmei CNC Machinery

We Hope Fully Become Your Trustworthy Organization
 In China.Do Not Hesitate To Contact With Me.

• Blair Zhang (Sales Manager)

• Tel: 008615965629053

• Skype: tradecncmachine

What we can do for customers?

-Trade Asssurance

-Pre-Sales Service

* Inquiry and consulting support.
* Sample testing support.

* Design drawing of the factory workshop
* View our Factory.

-After-Sales Service

* One year warranty time, we can repair and replace parts for free in one year.
* Free training course at our factory with professional engineers.
* Technical support in 24 hours online, TM, Skype, E-mail  solving the relative questions in time.

* Engineers available to service machinery overseas.

*We provide the consumable parts at agent price when you need replacement

      With us your money in safe,your business in safe!

How about the Packing&Delivery?

to make sure customer will receive the machines they ordered Intact.

Shipping:Shipping by 20GP,40GP,40HQ Container...

We will provide professional packaging can save sea freight for cutomers.

Shandong Mingmei CNC Machinery Co., Ltd

MMCNC was found in 1995,which is a modern private enterprise specialized in technology

development,machinery manufacture and product sales.Company cover an area of 70000

square meters and 200 staffs.

MMCNC machine include Processing machine for making aluminum PVC window and door as well

as curtain wall, such as---

Double head Cutting Saw;Corner Crimping Machine;End miller;Copy router;PVC Welding Machine;Corner Cleaning Machine; we also produce CNC Router etc.which these machine have got

CE,ECM,EEC authorization .and it has won good market reputation.

Thank you for your interest in our products, we welcome new and old customers contact us for future business relationships and achieving mutual success!

What's FAQ?

1. Q: Are you a factory or trading company?

A: We are china one of famous factory for Aluminum /PVC Window Door Making Machine, Insulating CNC Router, CNC milling and Drilling Machine Center for Aluminum and Curtain Wall.

2.Q:How I can get suitable Machine?

A:First: Please tell us what's your max working area (L*W*H),
    Second: Please tell us what material will be engraved or cutted?
    Third: Pls tell us what kind of product do you want to get after engraved? Flat or 3D?
Those three answers will help us choice suitable CNC machine for you

3. Q: How does your factory do regarding quality control?          A:We have strict control in testing of raw material, production process and final process.Only qualified

products can be sent out.And we have passed ISO,CE certificate.

4.Q:What you can do if my machines have problems?

A: a.We can send you free components to you if your machines are in guarantee time.

    b.We can send our engineers to repair your machines

5. Q: If OEM available?

A: Yes, as we usually do.

6.What's your payment methods?

A: L/C, 30% deposit by T/T,70% spare payment L/C.
     T/T, 30% deposit by T/T,70% spare payment before shipment.
     Western Union
