4 axis cnc ruter
linear style atc with rotary
1.Applicable Industry and materials:
1) Mould: wood,wax, wood, gypsum,foams,wax
2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
windows.
3) The wood products: voice box, game cabinets, computer tables, sewing machines table,
instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
2.Machine configurations:
1.HSD spindle ----original famoue brand from Italian,also can choose Kolumb spindle
2.SYNTEC control system------It is from Taiwan with high performance and competitive price
3.Yaskawa servo motor and drives----They are from Japan with high precision and long life
4.HIWIN linear guide ------ made from Taiwan,used for linear reciprocating stadium
5.Working area:1300*3000*450mm
6.Whole cast steel structure thicken to 8mm
7.Drive System: X,Y-Rack Z-Ball Screw,Z with high precision ball screw
8.Automatic Tool Calibration - ----To guide rail and slide block , make it run better
9.Schneider electrical components - ----original brand from France
10.Japanese Omron Switch with long life
11.APEX Reudcer from Taiwan----More powerful and higher precision
12. T-Slot table with Aluminum sheel - -----Use clamp fixed materials
3.Machine Parameters
1 |
Model |
MA- 1325 |
MA-1530 |
MA-1836 |
MA-2030 |
MA-2040 |
2 |
X,Y Working Area |
1300x2500mm |
1500x3000mm |
1800x3600mm |
2000x3000mm |
2000x4000mm |
3 |
Z axis travel |
200mm-700mm(according to your requests) |
||||
4 |
Table Surface |
Vacuum and T-slot Combined(double use) |
||||
5 |
Frame |
Thicken steel Square Tube Heavy structure ,15mm thicken steel gantry with T type |
||||
6 |
X, Y Structure |
Helical Gear and rack transmission, Taiwan HIWIN Linear Rail |
||||
7 |
Z Structure |
Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail |
||||
8 |
Spindle Power |
China top brand Water cooling spindle / Italy HSD Air cooling spindle |
||||
9 |
Spindle Speed |
0-24000RPM / 0-18000RPM |
||||
10 |
Drive Motors |
Stepper Motor Driver/ Servo Motor Driver |
||||
11 |
Working Voltage |
AC220V/380V 1PH/3PH 50/60Hz, |
||||
12 |
Command Language |
G Code |
||||
13 |
Operating System |
Mach3 / NCstudio / DSP / Taiwan SYNTEC control system |
||||
14 |
Computer Interface |
USB port |
||||
15 |
Flash Memory |
512M |
||||
16 |
Collet |
ER20/ER25/ER30 |
||||
17 |
Inverter |
China top brand Fuling inverter / Taiwan Delta inverter |
||||
18 |
Software Compatibility |
Type 3 /Artcam |
||||

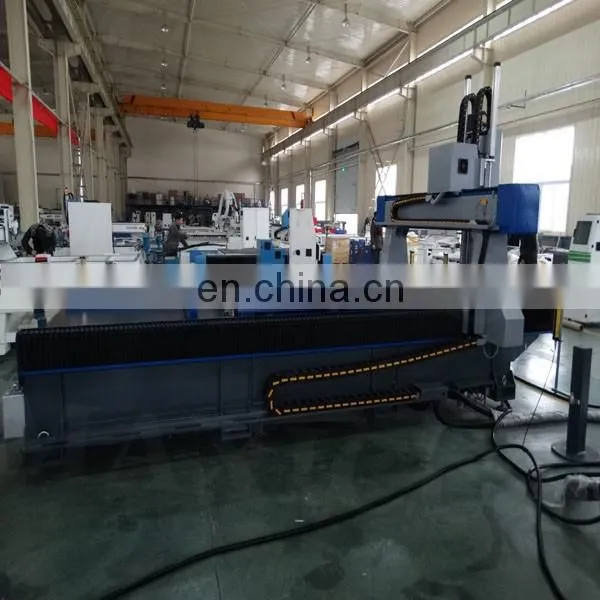

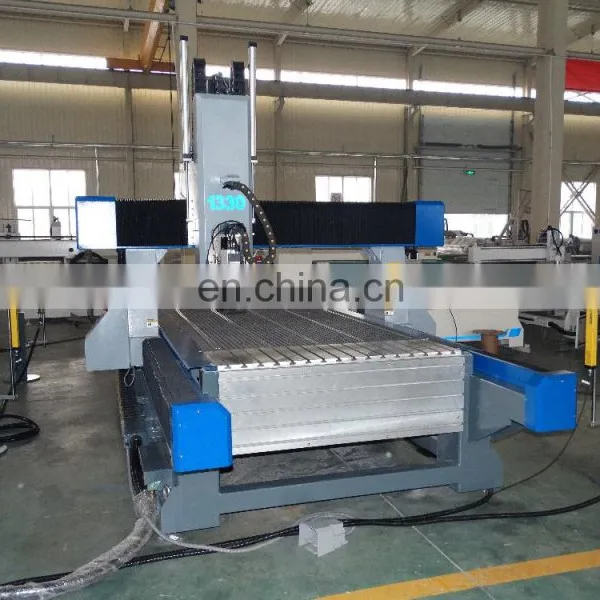

4.Details
1300X3000X450MM Working area;

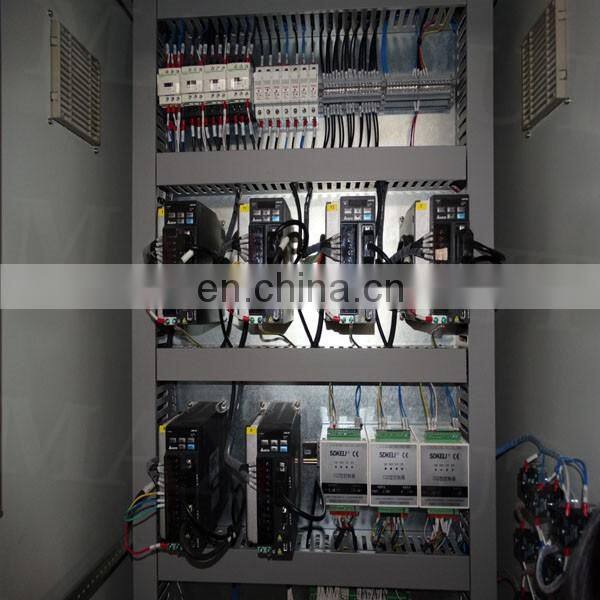

France schneider contactor; Taiwan Delta 1KW servo motors and drivers;

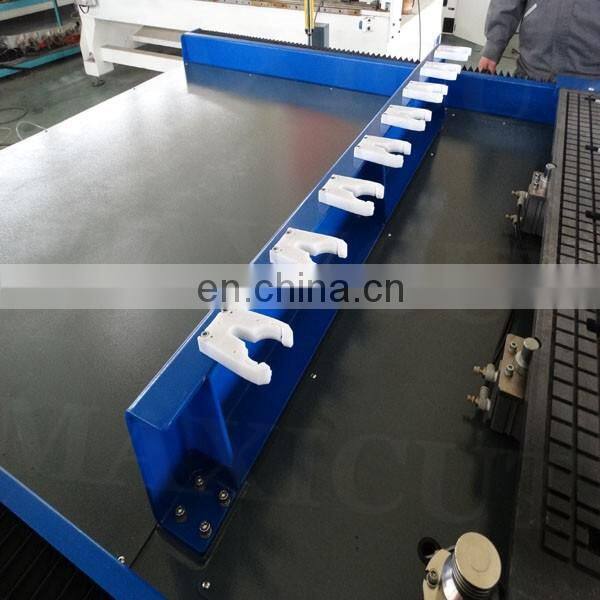

Linear atc 8 tools with new design

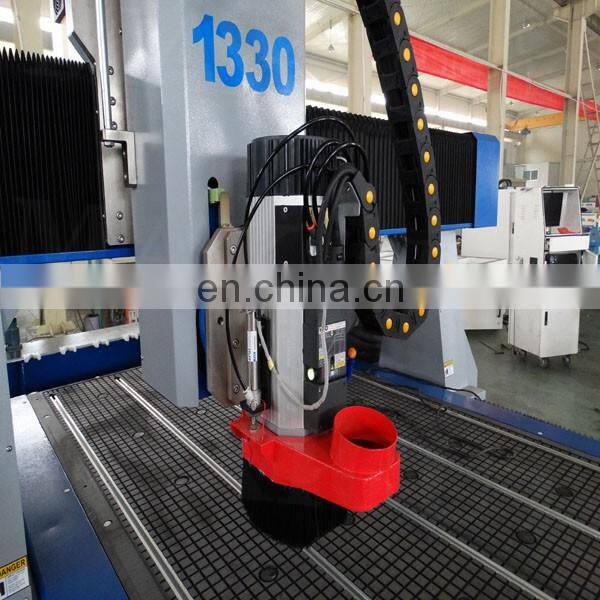

12KW Italy HSD spindle

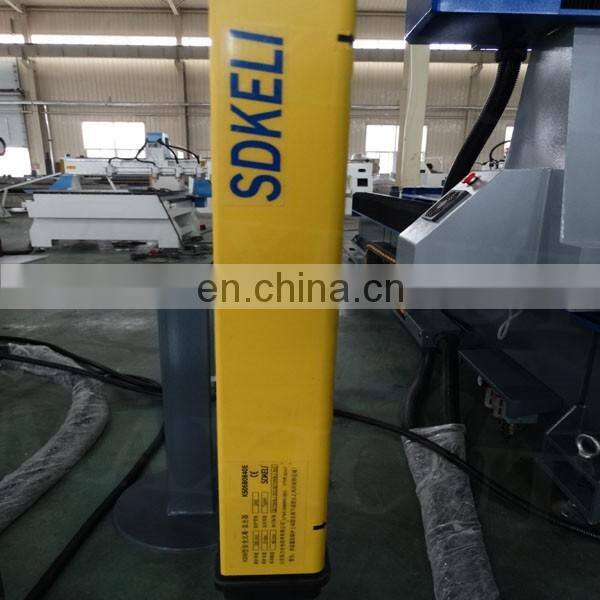

3 Sets(6 PCS) Safe sensors:when operator walk into the yellow area, machine will stop automatically so keep safety

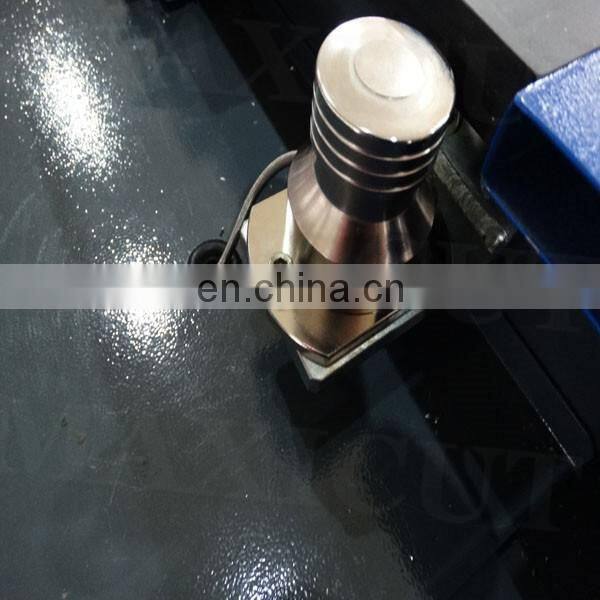

Automatic tool calibrator
5.Our Certificates:

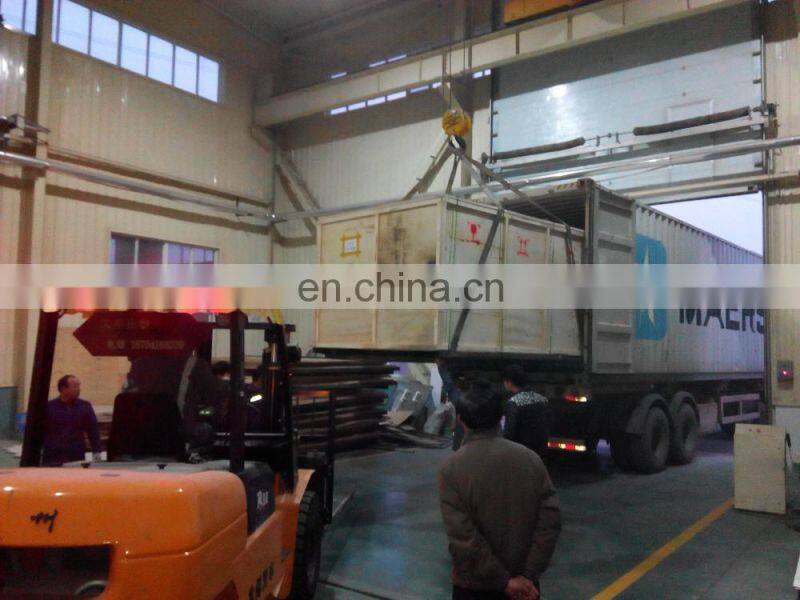

6.Our delivery
After sales service:
1. 12 months guarantee of the whole cnc router machine,We will provide the consumable parts at an agency price when you need replacement.
2. Our engineer could support you technology to your contry if necessary.
3. Our enginner could service on weekend even on vacation.
4. Our engineer could train you on at our factory for free.
5. Our engineer could service you 24 hours online by skype, yahoo, msn, QQ, or by cellphone.
Warranty :
#we have sincere raw material suppliers, all of our raw material are original, not copy.
# Every cnc router machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
# Main parts of cnc router (excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
#In the processing of cnc router production, our professional technical engineers inspect the processing to ensure the quality of products CNC router machine inner control system
