M1325 CNC Router
Detailed Product Description
1.Adopting the imported straight square guide bars,double-row ball four slider.Ensures a large losing capacity,high precision,long life and smooth running.The imported high precision ball screw ensures a high accuracy cutting.

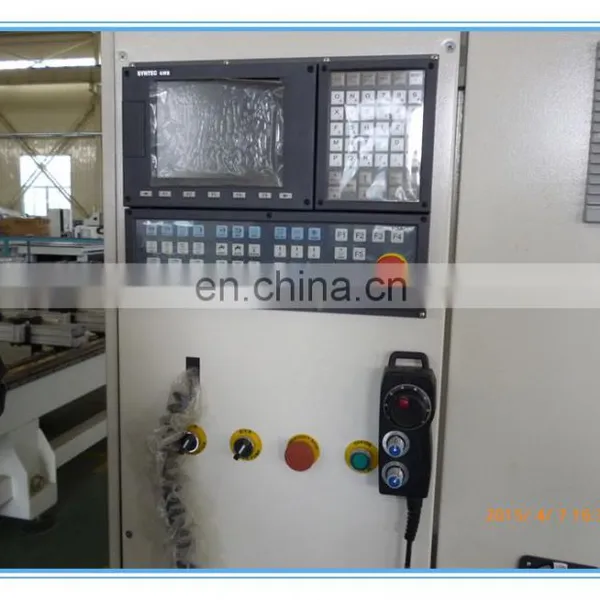

2.The machine can be remotely operated by USB interface type DSP operating system.It can operated on a hand wheel operating mode,makes the operating very easy.The CNC system adopting a smart use if unique budget laws to realize a high speed processing.
3.The CNC system is of nice software compatibility and can compatible the type 3 Artcan/Wentai/CAD/CAM etc
4.Software compatibility,and compatible type3/Artcam/Castmate/Wentai such as CAD/CAM design software
5.The machine adopts high-speed drive stepper motor and driver,Y axis using a dual-motor Drive,the moving speed can be up to 35 meter engraving spindle speed can improve even more.
TECHNICAL PARAMETER
Model and standard parameter |
M-1325 |
Maximum machining area |
1300x2500mm |
Height from cross beam to workbench(Z axis) |
200mm |
Worktable Size |
1480 x 3000mm |
Max moving speed |
35m/min |
Clamping mode |
Air cylinder clamping |
Interface |
USB |
Processing Order |
G-code*.u00*.mm*.plt |
Operating system |
DSP |
Power |
4.5kw |
Voltage system |
380V/50Hz three phase |
Main Motor Power |
3kw |
Main Shaft Speed |
0-18000rpm/min |
Working Mode |
Stepper motor |

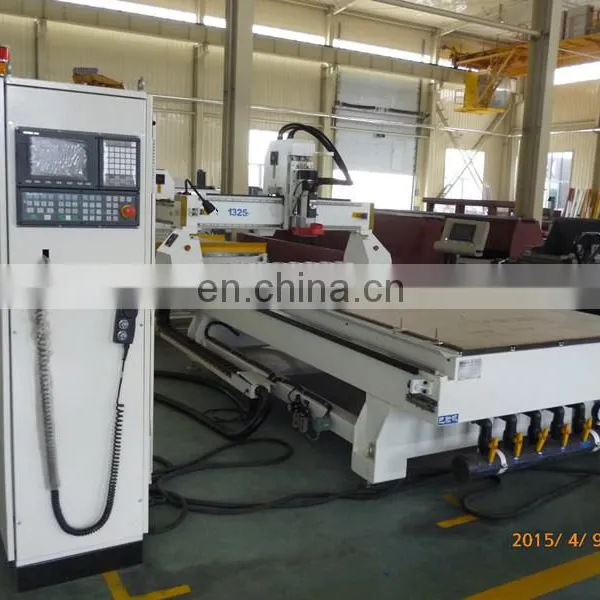

Attached some Photo of the Machine
Machine Body:Adopt Germany inported square Guide Bar,Doble Motor,Auto Spray Cooling system.
Don't hesitate to contact with us.We will provide you the best service and machine.
