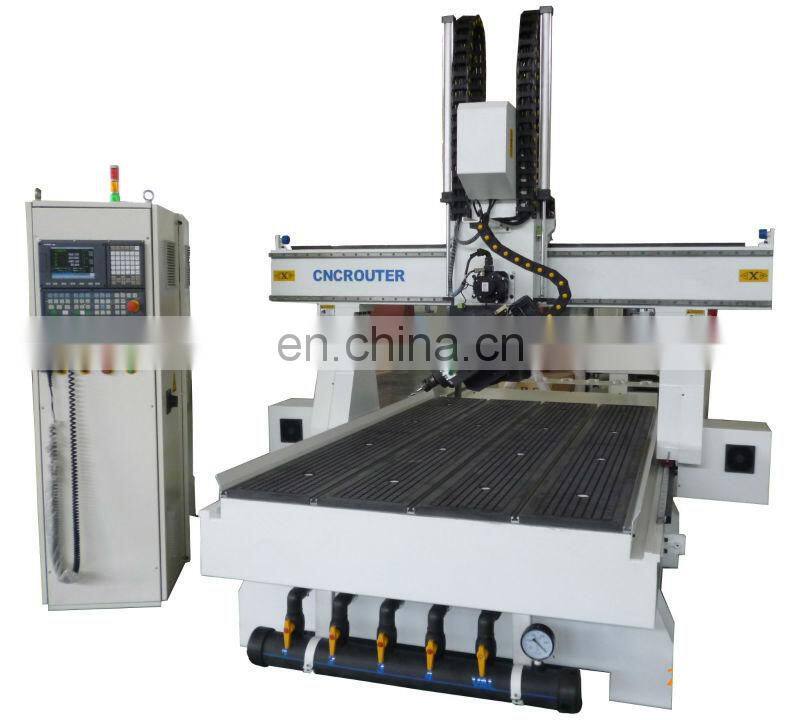

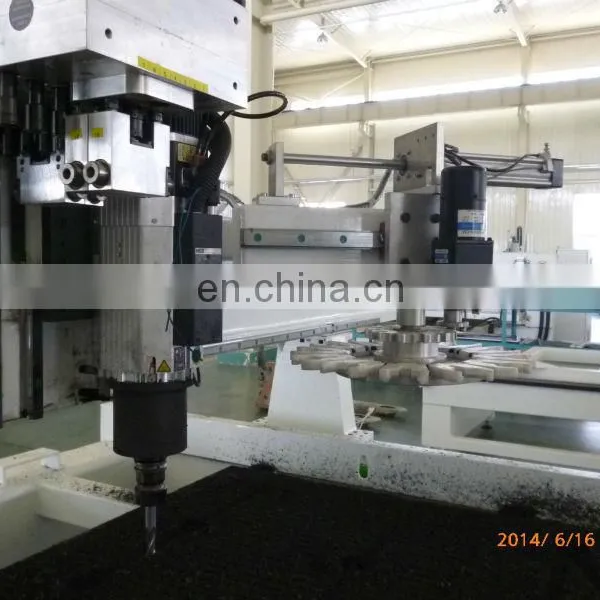

cnc router 1325
cnc router wood carving machine for furniture making
Features:
- 1300*2500*200mm effective work area
- 300mm diameter rotary device/4th axis for option
- Italy HSD air cooling spindle(world top brand)
- Taiwan DELTA inverter(world top quality)
- DSP control,with hand held controller

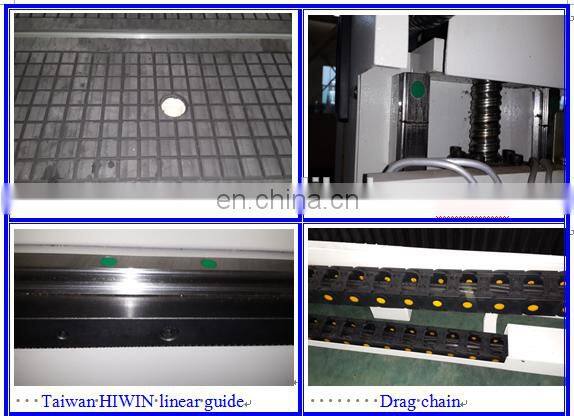

- Taiwan HIWIN 20# square linear guide
- helical rack transmission for X,Y axis,powerful and stable
- Taiwan TBI ballscrew transmission for Z axis,most accurate precision
- vacuum and T-slot working table
- water mist cooling sprayer for option(for metal working)
- manual lubrication system
- tool sensor calibration
- Japan OMRON limit switch
- Shanghai Cardiff cable,highly flexible,fire resistant
Parameter:
X,Y,Z Working Area |
1300x2500x200mm |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
X,Y,Z Repositioning Accuracy |
±0.03mm |
Table Surface |
Vacuum and T-slot working table |
Frame |
Welded Structure |
X, Y Structure |
helical rack, Taiwan HIWIN Rail Linear Bearings |
Z Structure |
Taiwan HIWIN Rail Linear Bearings and Ball Screw |
Max. Power Consumption |
(Without Spindle) 3.2Kw |
Max. Rapid Travel Rate |
33000mm/min |
Max. Working Speed |
25000mm/min |
Spindle Power |
Italy HSD air cooling spindle |
Spindle Speed |
0-18000RPM |
Drive Motors |
YAKO or Lead shine |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
Command Language |
G Code |
Operating System |
DSP/Ncstudio/Mach3 |
Computer Interface |
USB |
Collet |
ER20 |
X,Y Resolution |
<0.01mm |
Software Compatibility |
Type3/Ucancam/Artcam |
Running Environment Temperature |
0 - 45 Centigrade |
Relative Humidity |
30% - 75% |
optional items:
- rotary device(4th axis)
- 200mm/300mm/400mm/500mm for Z axis
- Italy HSD spindle(3kw/4.5kw/6kw/7kw)
- servo motor(Japan Yaskawa servo / Taiwan DELTA servo)
- auto tool changer (ATC)
- dust collector
- vacuum pump
Application:
Woodworking: three-dimensional wave board processing, furniture like solid wood door, kitchen cabinets, wardrobe cabinets, tables, beds, computer desk and cylinders like table legs, sofa legs, wooden craft, paint door, screen, craft fan window processing, shoe polisher, game cabinets and panel, mahjong table, auxiliary processing .
Advertising industry: advertising sign, logo making, acrylic cutting, plastic molding, a variety of materials advertising the production of decorative product.
Mold Industry: engraving wood, foam, EPS, copper, aluminum mold, as well as artificial marble, sand, plastic sheeting, PVC pipe, wood and other non-metallic mold.
Other Industry: a variety of large-scale relief sculpture, shadow carving, widely used in the craft industry.

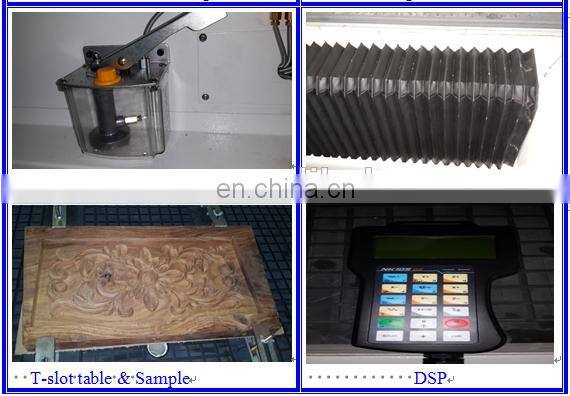

Samples:
FAQ:
Question 1: I want to buy a cnc router,what suggestion can you give?
Answer: Please tell me:what material do you process? What's the size of your material?(Better show me your product picture)
Question 2: Can i make cylinders and moulds?
Answer: Yes,please tell me your cylinder diameter and mould thickness,machine Z axis can be 600mm high.
Question 3: Have you exported to our country?
Answer: We have been in this field for 20 years,we have CE,CO,ISO,FDA,SGS certificates,have exported to Europe,South America,Arab,Asia,Russia,Spain,Australia and many more countries.

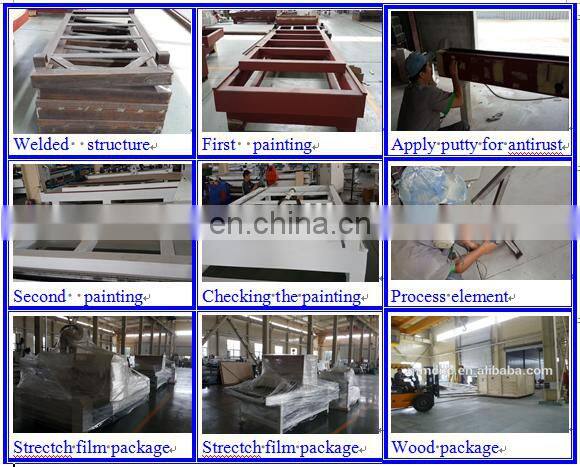

Production and package:
Please contact with me
Whatsapp/Wechact/ 0086-18766158398
