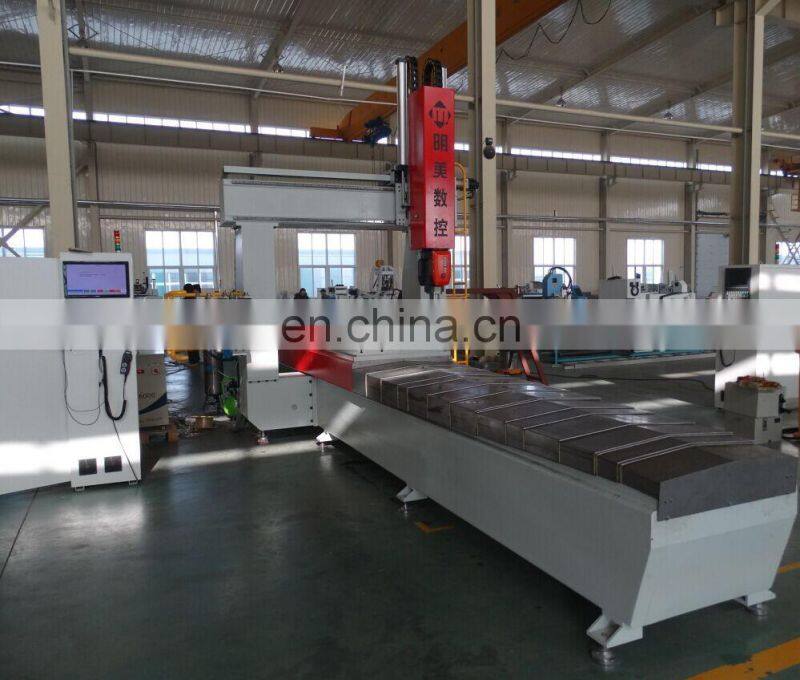

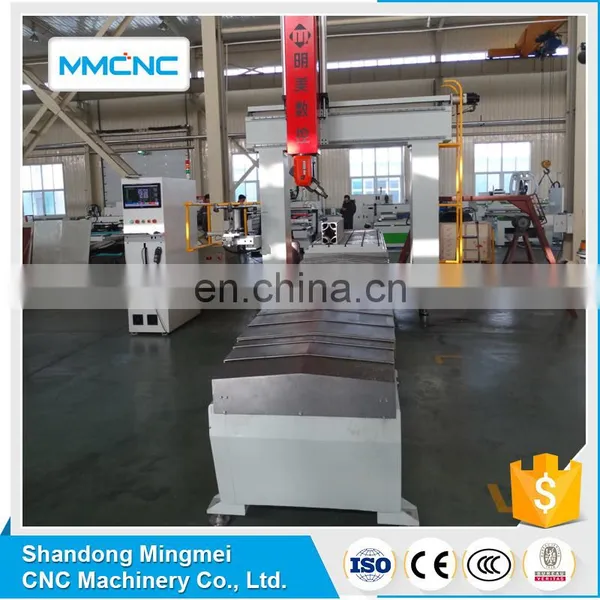

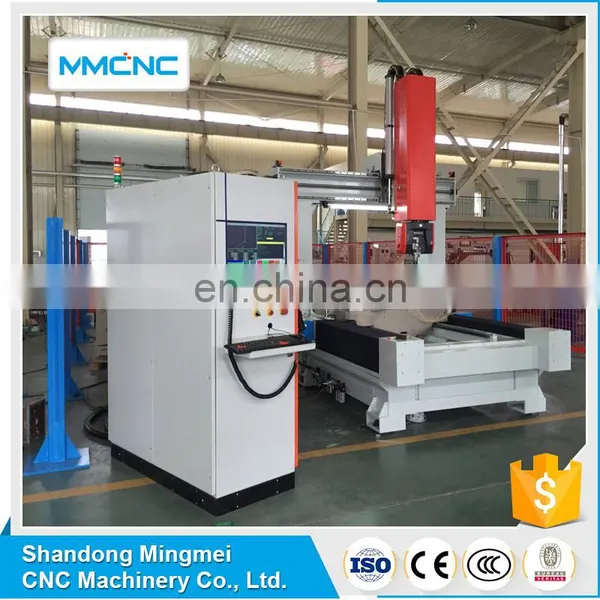

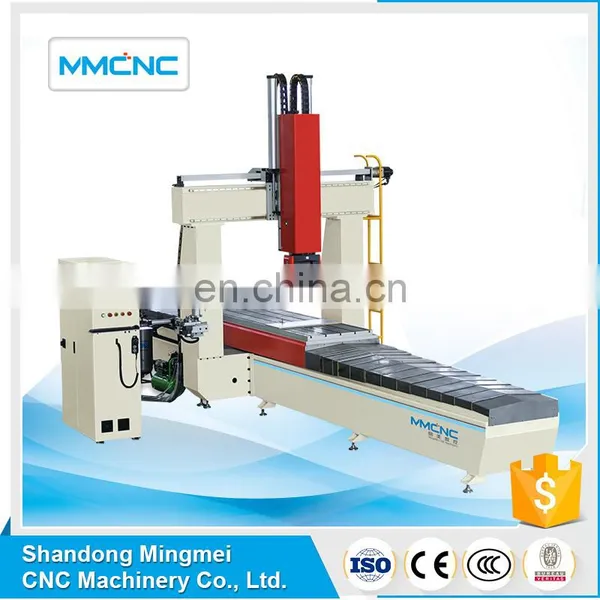

Heavy Duty Gantry Type 5 Axis Processing Center
JGZX5-CNC-3000
1. Feature
1. This machine is specially for cutting,hole drilling ,groove milling processing on all kinds of aluminum profile,plastic steel.
2. Adopt Taiwan Syntec five axis five synchronizing cnc control system, with Italy HSD imported high-power five-axis head, easily implement stereoscopic five-side processing one time;
3. Machine body is heavy duty thicken aging treatment and casting iron table, transmission adopt Japan Yaskawa servo motors and Japan SHIMPO high performance reducer,Taiwan ball screw, fast speed,low noise,high precision,long use life etc advantages.
4. It is widely used on process of high speed rail motor car track aluminum alloy,top grade hotel restaurant revolve door,all kinds of long strip hateromorphism chair back,bag suitcases hateromorphism cutting,hateromorphism square tube cutting etc; also can be used for mass production.
2. Specification
Working Area:X*Y*Z*A*C |
1600*3500*800*±120°*±240° |
Working precision |
±0.02mm |
Re-positioning accuracy |
±0.01mm |
XY axis max.speed |
32m/min |
Max process material size |
600*600*3000mm |
Working pressure |
Max. 10 bar |
Spindle cooling |
Constant temperature cooling |

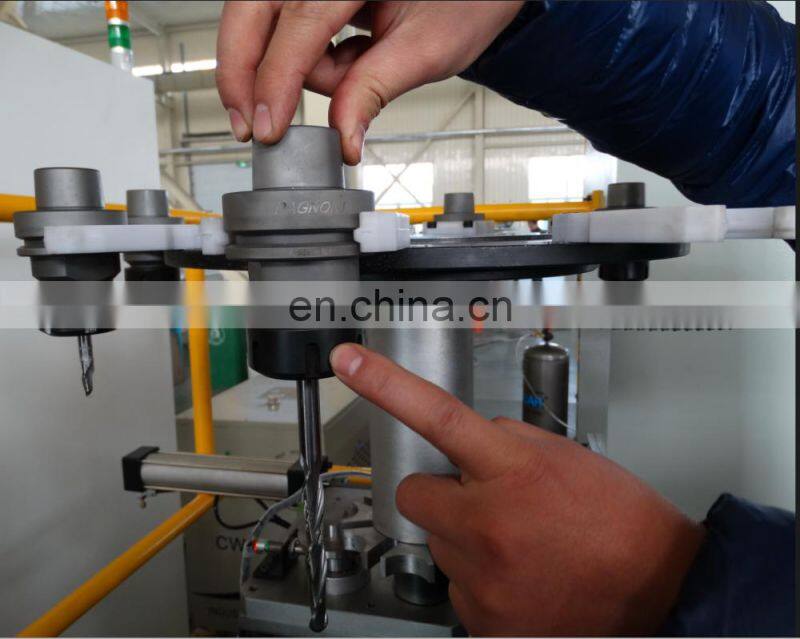

3. Detailed Photo-Italy HSK Tools

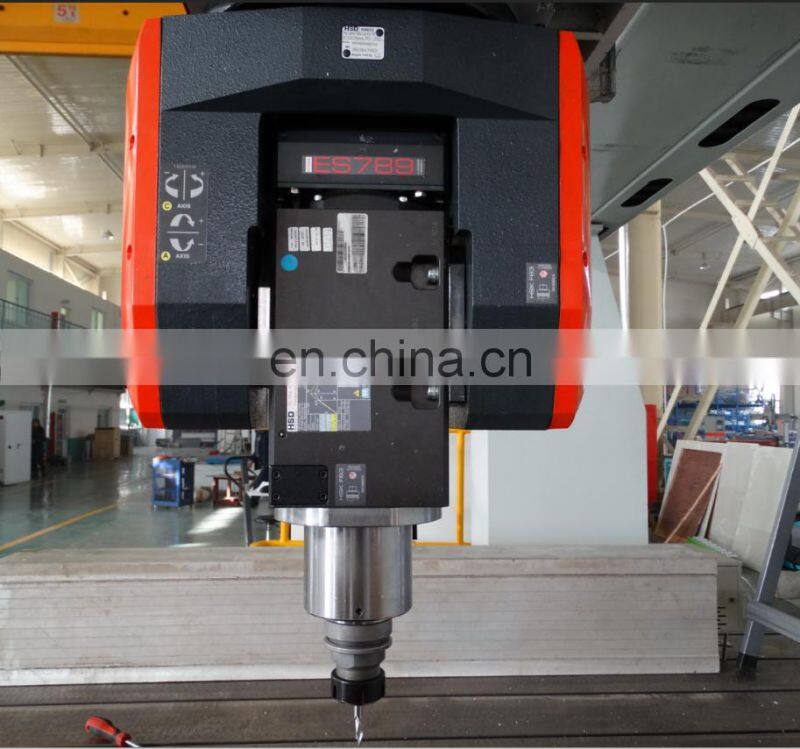

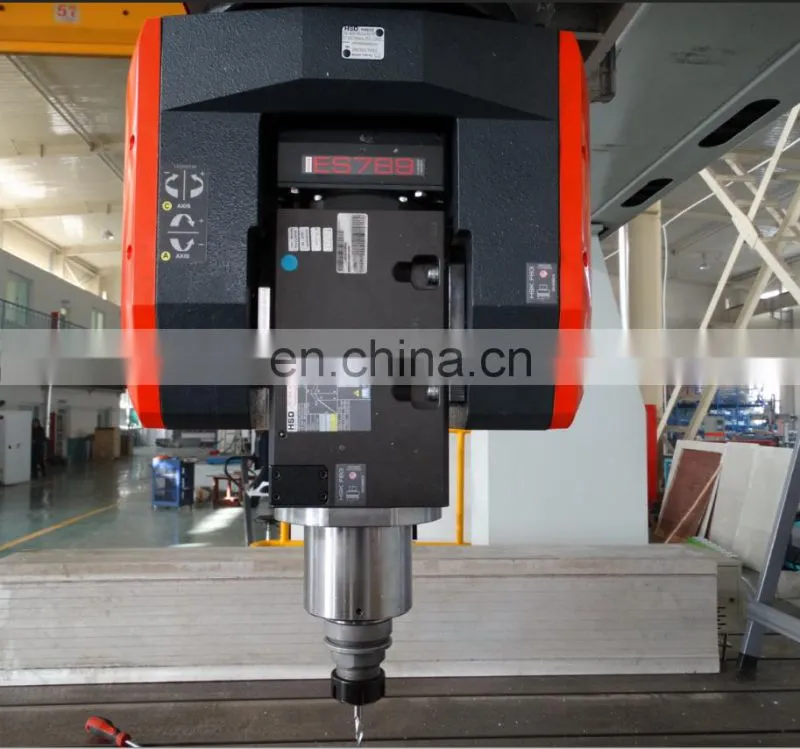

HSD Spindle ES789-18KW
4. Delivery Machine

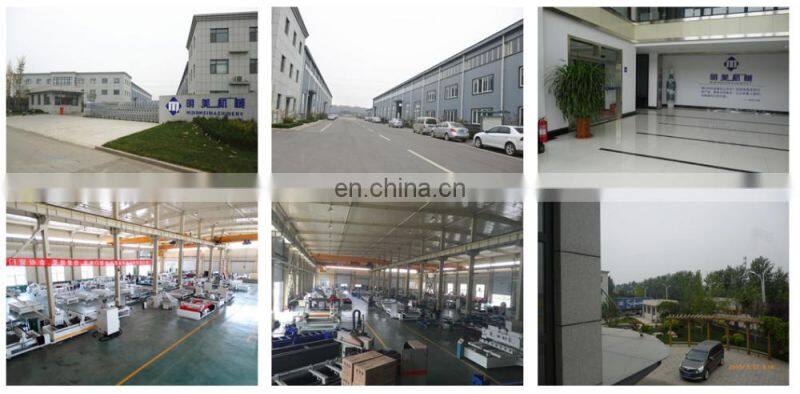

5. Factory
6. Our Client
