Gantry Four Axis Drilling and Milling Machining Center
- 50 Set / Sets per Month
- Qingdao Port
- T/T Credit Card
- 3-axis CNC Processing Center,Drilling Machine for Aluminum Profile,Industrial Aluminum Profiles CNC Drilling Machine
- High value !New Double-head Cutting Saw Aluminum profile Equipment
- High value !New Double-head Cutting Saw Aluminum profile Machine
- one head spindle cnc 5 axis machine
- wood mdf plastic aluminum metal 3d 5 axis cnc router with ce iso
- sculpture wood carving cnc router machine can make 5 axis cnc router
Product Details
Brand Name: | MMCNC | Model Number: | LM4-CNC-6000 |
Packaging Details
Standard Package
Product Description

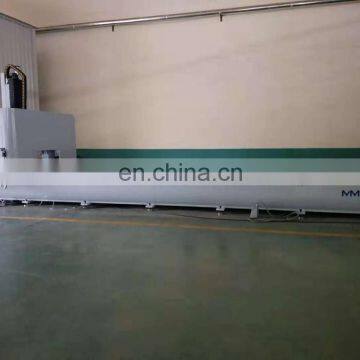

LM4-CNC-6000 Gantry Four Axis Machining Center
Feature:
1. Adopt PA CNC control system, have the function of clear interface and easy operate.
2. With the professional COM software, the clamps can moving automatically according to require. Machine can achieve high efficient 3D 4 axis processing work.
3. CAD patterns can input to system directly, Can draw the patterns directly on CAD platform in system , then create the NC file, editing to achieve processing.
4. Single positioning and dual positioning design, separately loading and unloading profile without stop machine, has more high processing efficiency.
5. Lubrication adopt intermittent supply system, blades cooling adopt system control spray pump device.
6. Machine can be used on processing aluminum , aluminum wood composite profiles, copper profile and other light metal.
7. One time clamping can complete finish the profile of multi-sided drilling, tapping, chamfering, milling, milling slot and shaped hole processing.
8. Adopt imported high-precision ball screw, rail and rack to assure the high precision and stability of machine.
9. Adopt YASKAWA servo motor and driver, original Italian HSD automatic tool change spindle, make sure machine high precision.
10. Two sets of tool magazine, one is disc tool magazine 8 sets, another is linear tool magazine 8 sets, total 16 sets
11.The head adopts fully enclosed safety structure, to make sure the safety of the operator.
Technical Parameter
Power supply:380v,50Hz
Working pressure: 0.6~0.8 Mpa
Total power: 16 kw
Spindle power:9.5 kw
Spindle rotary speed: 24000rpm
Spindle maximum output torque:6.4 NM
Air consumption:
Tool magazine: 8+8
Tool shank model: ISO30
Max tool length: 100mm
Clamps No.: 8
Processing travel:X-6000
Y-500
Z-300
Feeding speed: X50m/min
Y25m/min
Z10m/min
Processing size: 6000x500x300
Lubrication : automatic
Cooling :Oil mist pump
Overall dimension:9000x2230x3060
Weight: 5700kg
Company Profile
Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
