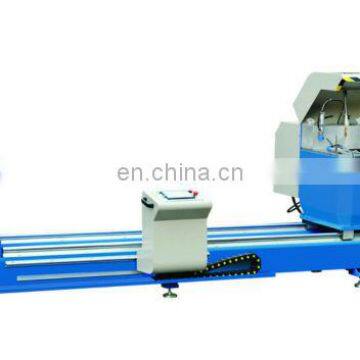

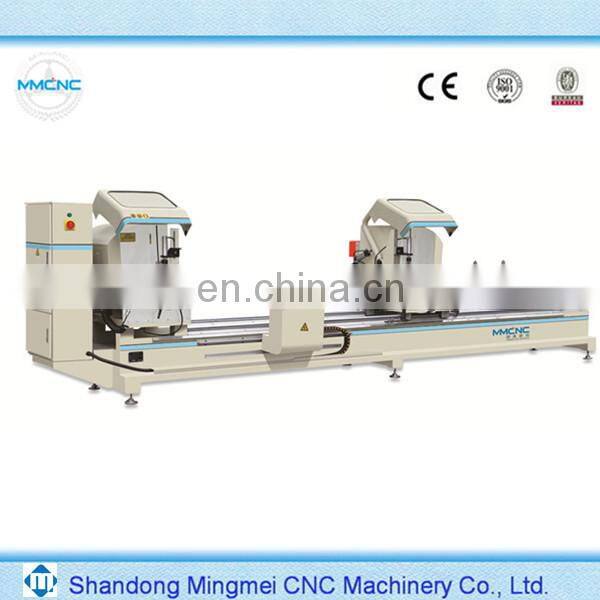

Wall Profile Aluminium Led, Aluminium Wall Led Profile / Precision CNC Saw

1.Eequipment Features

1.1   The main material for aluminum alloy curtain wall, window material cutting, and can also be used for plastic profile cutting

1.2    The use of carbide saw blades, diameter up to 500 dia, line of high speed, high precision machining.

1.3    Right heads feeding adopts pitch ball screw-lead motion,with high accurate driving ,locating and smooth working.

1.4    This machine uses the numerical control technology, profiles of different specifications can be completed automatically under the expected size

1.5    Machine during operation, two saw blade can cut, can separate cutting.

1.6    The saw head can be set to 45 degrees and 90 degrees need angle

1.7    The blade from the bottom to the top, sawing profile is more safe and reliable, and the cutting height and cutting width are large

1.8    Adopted the electrical motor protect device to improve the safety.

 2 Technical Parameter

2.1   Input power :5.9kw

2.2    Power supply 3800V50/Hz

2.3    Working pressure : 0.6-0.8MPa

2.4    Motor rotary speed :2800r/min

2.5    Saw blade specification:φ480xφ30x4.4

2.6    Cutting angle:90° . 45°

2.7     Cutting length:480-4200mm

2.8    Cutting width x height:235x130

2.9    Overall dimension :5750x1300x1500

3.0    Weight:1500kg

Attention Please:
       We can produce machine according to client need!
