aluminum profile window Factory pvc window machine upvc machinery
- 200 Set / Sets per Month
- Qingdao China curtain wall 3 axis cnc center
- T/T Credit Card
- Special shaped holes aluminum alloy profiles cnc milling drilling machine curtain wall industry milling grooves
- X travelling area 6 meters Factory high-speed 4 axis cnc processing center
- aluminum profile window cnc drilling milling machine aluminum spacer bar bending machine insulating window
- CE certified SKX3+1-CNC-3000 cnc siemens and fanuc system milling machine process milling circular holes
- CE certified SKX3+1-CNC-3000 aluminum profile milling and drilling machine process milling circular holes
- 3 meter or 1.2 meter aluminum alloy profiles aluminum profile cnc milling machines price in india curtain wall industry
Product Details
Brand Name: | Maxicut | Place of Origin: | Shandong, China | Model Number: | LCJG3-CNC-6000, LCJG3-CNC-6000 |
Type: | Vertical | Certification: | ISO9001 CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Warranty: | 12months | Weight: | 2360KG | Dimension(L*W*H): | 7100 x 1600 x 2200mm |
Voltage: | 380V/50Hz | Condition: | New | Power(W): | 12KW |
Packaging Details
Plastic film, wooden box or as customer's request pvc window machine upvc machinery
Product Description
Factory Direct Sale !!aluminum profile window door pvc window machine upvc machinery
1. Feature
1.1 This machine is designed for processing round holes,slots,keyhole etc on aluminum profile,window-door and curtain wall industry,it is also suitable for processing milling,chamfering,
engraving plane surface and other procedure.
1.2 Main spindle adopt air-cooling electric main axis from Italy,have the function of high
precision,high safety and high reliable.
1.3 Adopt Taiwan SYNTEC CNC control system.Have professional CAD-CAM programming
software.It can transform processing code automatically,have the function of easy operation,
high efficiency and lower labor intensity.
1.4 Imported guide rail,sliding block,X axis adopt high precision oblique gear and rack driving.
Y and Z axis adopts high precision ball screw drive.The drive is stable,so can improve the
precision of whole machine.
1.5 Inside blades storage can hold 6 sets blades,the handle is approved ISO 30 standards,it is
very safety and reliable.
1.6 Adopt manual pump oil supply system,blades adopt system control system control spray
cooling device.
1.7 The main electrical parts:circuit breakers,AC contactor are all SCHNEIDER brand.
1.8 The main components adopts steel structure and they are all through aging treatment.
2. Specification
2.1 | Power supply | 380v 50Hz |
2.2 | Air pressure | 0.5~0.8MPa |
2.3 | Total power | 12kw |
2.4 | Max rotary speed | 24000/min |
2.5 | X-axis speed | 6000mm |
2.6 | Y-axis speed | 500mm |
2.7 | Z-axis speed | 350mm |
2.8 | Y and Z axis speed | 1500mm/min |
2.9 | Overall dimension | 7100 x 1600 x 2200mm |
3.0 | Weight about | 360kg |

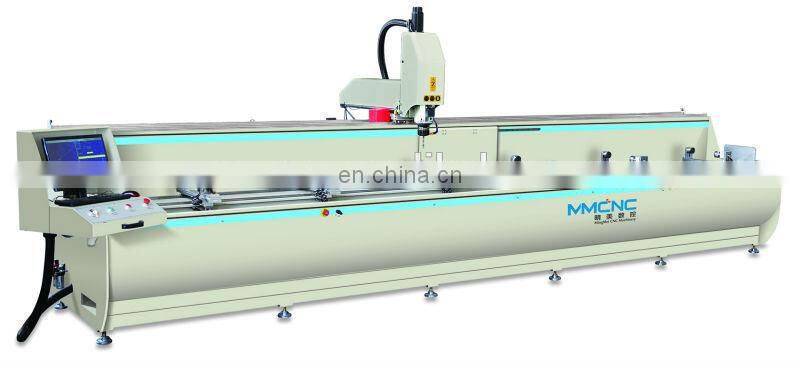

3.Picture of machine
4. Machine On Exhibition
These machines will be packed with steel pallet and standard export wooden case, to make sure customer will receive the machines they ordered Intact.
1.When we send machine to you ,we would send quick-wear part together to ensure you can
use the machine for long time.
2.We provide "7/24" style after service, one week 7 days, one day 24 hours, we will reply
your emails within 24 hours, commonly we will reply customer's email within 1 hour,small
problem we will solve on email, large problem we send engineer to your factory.
Shandong Mingmei CNC Machinery Co., Ltd. was founded in 1995, located in Jinan
economic dev. Zone. Company cover an area of 70000 square meters and 200 staffs.
As leading manufacturer of industrial aluminum equipment which is a modern private
enterprise specialized in technology development, machinery manufacture and machine sales.
MMCNC machine include Processing machine for making aluminum PVC window and door as well as curtain wall, such as Double-head Cutting Saw; Corner Crimping Machine;
End miller; Copy Router; PVC Welding Machine; Corner Cleaning Machine; we also
produce CNC Router etc.
We have advanced machining centers, large planer, horizontal boring machine and other
specialized machine equipment, realize the specialized and scale model manufacturer.
Q1: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
Q2: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q3: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q4: What sales terms do you have?
A: T/T, L/C,West Union.
Q5: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q6: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q7: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q8: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
Company Profile
Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
