cnc control aluminium fabrication tube cutting machine
- 20 Set / Sets per Month
- Qingdao
- T/T Credit Card
- aluminium double head 45 degree cutting saw miter machines
- double mitre automatic sawing machine cut off saw for aluminum
- digital measuring system aluminum window making machine aluminum cutting machine
- aluminum door and window frame cnc cutting machine price
- PVC Window Processing Machine Window Film Cutting Machine Double Head Mitre Saw
- Automatic PVC Doors and Windows Making Machine for Cutting PVC Profile / Aluminum Key Cutting Saw
Product Details
Brand Name: | Sinon | Model Number: | LJJ02-CNC-500 |
Packaging Details
wooden case or according to customers' demand for cnc control aluminium fabrication tube cutting machine
Product Description
cnc control aluminium fabrication tube cutting machine
Details
- cnc control aluminium fabrication tube cutting machine is used for cutting corner connecter of aluminium profiles
- Adopts industry grade computer system, the user can set the processing parameters according to profile, the cutting size shift quickly, locating precision high, the repeat locating precision is ±0.2mm(optional: cnc model)
- Automatic alarm function when without work pieces or finish cutting
- Auto device to realize the continuous feeding
- The feeding stroke can adjustable within 3-600mm
- Saw blade rotates smoothly due to high accurate main spindle, steady running with high precision
- The speed of saw blade infeed in linearity adjustable by air-hydraulic cylinder
- Equipped with phase sequence protection device, so as to protect the machine once shut off or misconnect the phase.
Technical Specifications
Power supply | 380V 50HZ |
Total power for motor | 3.0KW |
Blade specification | Φ500mm×φ30mm×4.4mm |
Cutter feeding speed | 0-3m/min |
Cutting length | Max 300mm Min3mm |
Blade W*H | 135*135mm |
Cutting angle | 90° |
Repeat locating length tolerance | ±0.20mm |
Cutting profile surface plane | ≤0.10 mm |
Cutting angle tolerance | ±5′ mm |
Cutting profile surface roughness | Ra12.5um |
Contour dimension(L*W*H) | 5500×1700×1900mm |
Weight | 750kg |

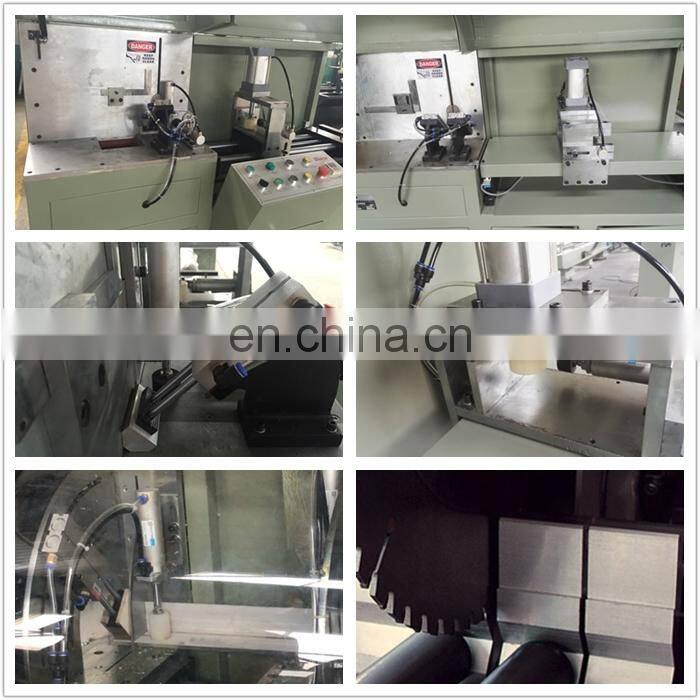

Details Photo
Machine Layout Drawing for 30-50 Aluminum windows and doors per shift
- Sinon LJZ2B-CNC-500*4200 Double-head precision cutting saw (LJZ2B-CNS-500*4200)
- Sinon SSJ06-3700 Double head cutting saw
- Sinon LSFX-100 Cory router for aluminium window (SX01-100) 2 set
- Sinon DX06-250 End milling machine for aluminium profile (DX06A-250) 1 set
- Sinon LJJ02A-500 Coner connector automatic cutting saw (LJJ01-450) 1 set
- Sinon LYJ-75 Punching machine for aluminium window (LY6-50) 2 set
- Sinon LZJ03-130 Corner crimping machine for aluminium window 3 set
