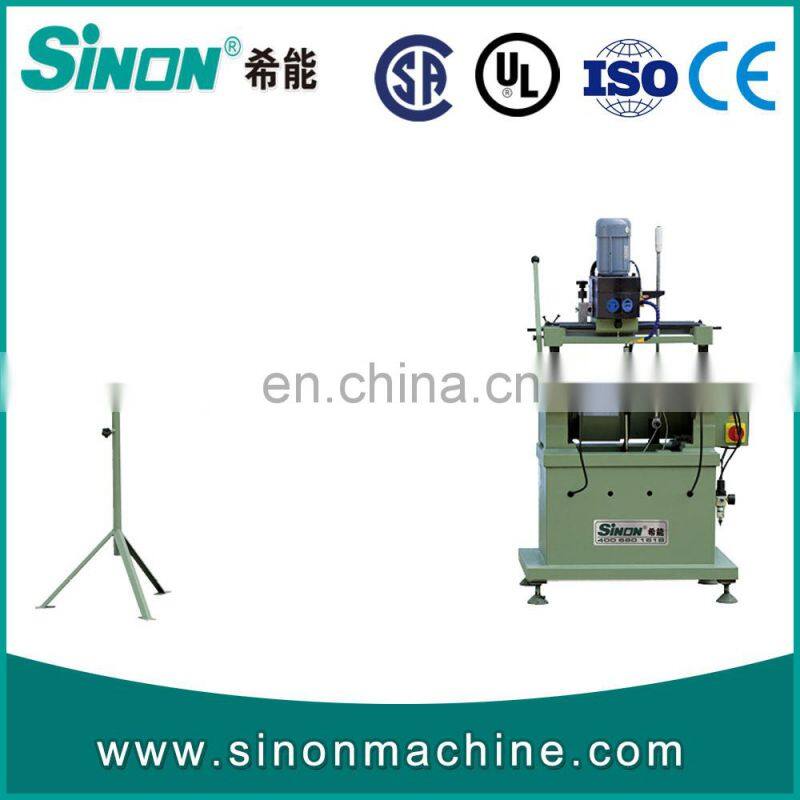

SINON Patent Portable Single Head Aluminium Copy Router / Labor Saving Template Copy Router Machine for Aluminum
- 20 Set / Sets per Month
- QingDao sport
- T/T Credit Card
You May Like
-
High Working Efficiency Curtain Wall Cutter Machine / Aluminium Profile Arbitrary Angle Double Head Cutting Saw
-
Any Angle Aluminum Profiles CNC Double Mitre Saw Machine with Schneider System
-
Aluminum Profiles Smart Schneider System with Any Angle CNC Control Double Mitre Saw
-
High Precision Aluminum and PVC profiles Any Angle CNC Cutting Saw Machine
-
PVC and Aluminum Door Window Profile Double Head Miter Saw With Digital Display
-
LJZ2B-500x4200 Automatic High Precision Double Miter Saw for Aluminum
Product Details
| Brand Name | Sinon | Model Number | LSKC03-120 |
wooden packing.
Product Description
SINON Patent Portable Single Head Aluminium Copy Router / Labor Saving Template Copy Router Machine for Aluminum
LSKC03-120
Main purpose and scope:
SINON Patent Portable Single Head Aluminium Copy Router / Labor Saving Template Copy Router Machine for Aluminum is specially used for processing handles in three holes and the slots which for installing the hardwares at the PVC and Aluminum profile.
Features:
- The copy routing size is controlled by the standard template and the proportion is 1:1.
- Adopt the high-speed copy-routing milling head.
- The ruler can be adjusted according to the rotate wheels.So that make the three driller always at the middle of the profile.
Optional:
- PVC Window Door Middle Mullion Cutting Saw.SJT03-420
- Double-head Cuting Saw for Aluminum Profile.SSJ06-450x3600
Technical Specifications
Power supply | 380V 50Hz |
Total power for motor | 0.75Mpa |
Motor rotary speed | 2800r/min |
Air working pressure | 0.5~0.8MPa |
Diameter of the milling cutters | range 5 mm, range 8 mm |
Motor rotary speed |
0-12000r/min |
Contour dimension(LxHxW) | 2000x950x1500mm |
Weight | 230kg |
Copy-routing range | Vertical:290x90mm Horizontal:100x300mm |
Profile section | W230mmxH150-210mm |
Processing roughness |
Ra 12.5μm |
Equipment Layout:
1. Sinon SSJ07-450*3600 (SSJ06-3700) Double-head cutting saw
2. Sinon LJVW-60 PVC window V-cutting machine (End milling machine)
3. Sinon SJT02-350 PVC window mid-mullion cutting saw
4. Sinon SCX03-3*60 Automatic 3-axis water slot milling machine
5. Sinon SSK02-100 (LSKC03-120) Lock-hole processing machine
6. Sinon HJ02-4500*4/4*A 4-head welding machine
7. Sinon JQK04-CNC-120 PVC corner cleaning machine
8. Sinon SQJ05-120 PVC window V-corner cleaning machine
9. Sinon SYJ03-1800 PVC window glazing bead saw
10. Sinon SFX02-160 Sealing cover milling machine
11. Sinon SHD01-120 PVC window variable-angle welding machine for arch window
12. Sinon SYH1800 PVC arch bending machine for arch window
The Sinon company successively passed the ISO9001 international quality certification system and the European Union CE safety certification and the United Safety certification,the products are exported to Russia.Romania.the Czech republic,Australia,Britain,India and other 20 countries and regions .Export turnover accounted for the proportion of company in the future development direction,we warmly welcome all customers come to jinan,can come to sinon company to visit,negotiate and cooperate.
related products
- Pre-sales service:
. Provide free domestic and foreign project analysis
. Free to provide domestic and foreign industry information
. Free design drawings for factory
. Free layout Plan for complete sets of equipment
. Free Factory electrical Road layout and site installation instructions
- Middle-sales Service:
. Free installation, commissioning equipment
. Free training ,operation and use
. Free training doors and windows production technology
. Free Training Plant Maintenance engineer
- After-sales Service:
. Equipment 12 months warranty, life-long maintenance, regular maintenance and maintenance
. Key areas provide 24-hour instant service
. Provide timely and fast spare parts supply to domestic and abroad
. Provide online "outpatient" to solve technical problems for customers
FAQ
- Q1: Are you trading company or manufacturer ?
A1: We are factory . We are a leader in aluminum window machine manufacturing for 20 years in China. - Q2: How long is your delivery time?
A2: Generally it is 3-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity. - Q3: How does your factory do regarding quality control?
A3:We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out. - Q4. What will you do if the machines have problems?
A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment. - Q5: What is your terms of payment ?
A5: 30% TT deposit,70% balance before shippment . Deposit must be TT ,balance could accept 100% irrevocable L/C at sight . - Q6: How long from Jinan airport to your factory ?
A6: About 10minutes . We could pick you up at the airport or railway station if you need. Q7: If I make Aluminum window and door, how many basic machines do I need?
1).Double /Single-head cutting saw
2).Copy routing machine
3).End milling machine
4).Corner connector automatic cutting saw
5).Corner crimping machine
6).Punching machine- Q8:If I make PVC window and door, how many basic machines do i need?
1).Double /Single-head cutting saw
2).Welding machine
3).Glazing Bead saw machine
4).Water-slot Milling machine
5).V cutting machine / End Milling machine
6).Lock hole Milling machine
7).Corner cleaning machine
Company Profile
Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
