Double Head Corner Combining Machine for Aluminum Window Door
- 20 Set / Sets per Month
- QingDao sport
- T/T Credit Card
- Ready Stock Available Single Phase Water Slot Machine For PVC Windows and Doors
- Overseas Service Upvc Windows fabrication In Stock Lock Hole Machine
- Three Phase Motor PVC Windows Manufacturing Glazing Beading Machine
- Best Price UPVC Sliding Casement Folding Windows Doors V-Cutting Machine
- Two Head Any Angle UPVC Plastic Door and Window Profile Cutting Saw
- Good Price Single Head PVC Plastic Window Frame Welding Machine
Product Details
Brand Name: | Sinon | Model Number: | LZJZ2-100x1800 |
Packaging Details
wooden packing.
Product Description

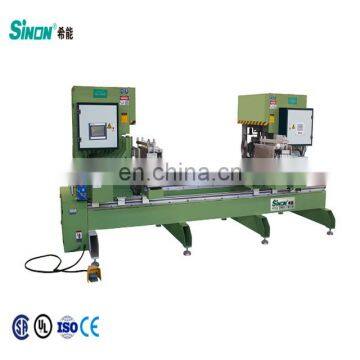

Double Head Corner Combining Machine for Aluminum Window Door
LZJZ2-100x1800
Main purpose and scope:
Double Head Corner Combining Machine for Aluminum Window Door is used for corner combination of aluminum alloy profile.
Features:
- Adopt programmable controller (PLC) to ensure the machine running more steay and reliable.
- Two corners connecting at one time is available with high efficiency production.
- It is equipped with the clamping cylinder, inner/outer located block and preload device so as to avoid dislocation of the corner when combination and improved the precision of the localization and working efficiency.
- Inner / outer located block can be adjustable vertically ,also can be used for processing with multi layers piled up so that ensure the localization accuracy.
- Hydraulic system through high and low voltage conversion to realize the second pressing function so that ensure the higher intensity of corner combination.
- The combination cutter can easily adjust from front to back and left to right,is suitable for the demand of processing different profiles.
Technical Specifications
Power supply | 380V 50Hz |
Total power | 3.0KW |
Rating oil pressure | 15MPa |
Operation air pressure | 0.5~0.8MPa |
Air consumption | 1.2L once |
Capability of oil box | 40L |
Max processing frame size | 3500mm |
Min frame dimension | 480x480mm |
Profile width | 90mm |
Contour dimension(LxHxW) | 4500x2200x1800mm |
Equipment Layout:

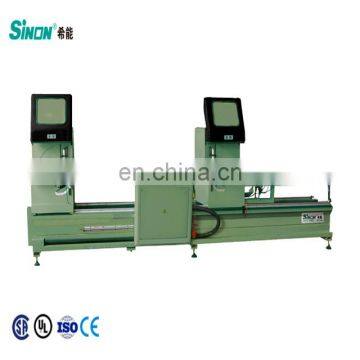

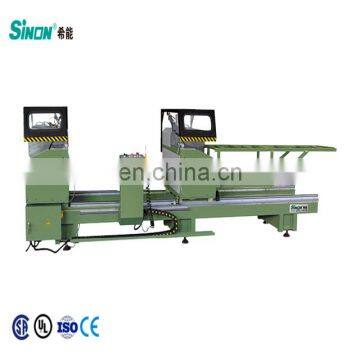

1. SSJ06-3700 Double-head cutting saw
2. LSFX-100 Copy router for aluminium profile (SX01-100)
3. LJVW-60 PVC Window Door V-Cutting Saw
4. DX05-200 End milling machine for aluminium profile
5. LYJ-75 Punching machine for aluminium window (LY6-50)
6. JQK04-CNC-120 PVC Window Door Corner Machine With CNC
Quality has a long tradition at Sinon. Quality and innovation are the supporting pillars of our company.
Our customers constantly face with competition, with which we want to support them as best as possible. For this purpose, the quality of the products and the processes in the field of consultancy, support and service have to be just as good as the interpersonal factors – and be so internally and externally.
· From raw materials, machining, assembly, inspection, finished products to packaging, each link we strictly control, to ensure that the best quality products to customers.
The Sinon company successively passed the ISO9001 international quality certification system and the European Union CE safety certification and the United Safety certification,the products are exported to Russia.Romania.the Czech republic,Australia,Britain,India and other 20 countries and regions .Export turnover accounted for the proportion of company in the future development direction,we warmly welcome all customers come to jinan,can come to sinon company to visit,negotiate and cooperate.
- Pre-sales service:
. Provide free domestic and foreign project analysis
. Free to provide domestic and foreign industry information
. Free design drawings for factory
. Free layout Plan for complete sets of equipment
. Free Factory electrical Road layout and site installation instructions
- Middle-sales Service:
. Free installation, commissioning equipment
. Free training ,operation and use
. Free training doors and windows production technology
. Free Training Plant Maintenance engineer
- After-sales Service:
. Equipment 12 months warranty, life-long maintenance, regular maintenance and maintenance
. Key areas provide 24-hour instant service
. Provide timely and fast spare parts supply to domestic and abroad
. Provide online "outpatient" to solve technical problems for customers
FAQ
- Q1: Are you trading company or manufacturer ?
A1: We are factory . We are a leader in aluminum window machine manufacturing for 20 years in China. - Q2: How long is your delivery time?
A2: Generally it is 3-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity. - Q3: How does your factory do regarding quality control?
A3:We have strict control in testing of raw material, production process and final process. Only qualified products can be sent out. - Q4. What will you do if the machines have problems?
A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment. - Q5: What is your terms of payment ?
A5: 30% TT deposit,70% balance before shippment . Deposit must be TT ,balance could accept 100% irrevocable L/C at sight . - Q6: How long from Jinan airport to your factory ?
A6: About 10minutes . We could pick you up at the airport or railway station if you need. Q7: If I make Aluminum window and door, how many basic machines do I need?
1).Double /Single-head cutting saw
2).Copy routing machine
3).End milling machine
4).Corner connector automatic cutting saw
5).Corner crimping machine
6).Punching machine- Q8:If I make PVC window and door, how many basic machines do i need?
1).Double /Single-head cutting saw
2).Welding machine
3).Glazing Bead saw machine
4).Water-slot Milling machine
5).V cutting machine / End Milling machine
6).Lock hole Milling machine
7).Corner cleaning machine
CONTACT US:
Alice Wang
Website Address :Jinan Sinon CNC Machine Co Ltd
What's app / wechat / mobile: +86 15066150993
Skype:15066150993
Company Profile
Based on the principle of "people-oriented, honesty first", we have set up more than ten offices all over the country, equipped with sales and service engineers with rich experience in industry services, providing reliable technical services and product sales consultations at any time. Our aluminum door and window equipment, plastic steel door and window equipment, insulating glass equipment, glass deep processing equipment have been exported to the United States, Russia, Canada, Mexico, United Arab Emirates, Indonesia, Mauritius, Yemen, Vietnam, North Korea, Saudi Arabia and other nearly 30 countries and regions. , deeply praised by foreign users. As a professional manufacturer of door and window equipment, plastic steel door and window equipment, aluminum door and window equipment, insulating glass equipment and glass deep processing equipment, we rely on our own scientific research strength to continuously update and improve product quality and service. We are looking for friends in the door and window industry with more competitive prices and more thoughtful after-sales service.
