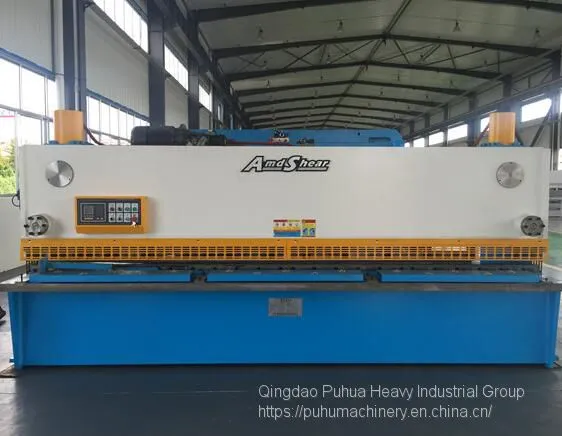

Amd-357 CNC Hydraulic Sheet Shearing Machine
- QINGDAO
- T/T
- 15 days
You May Like
Product Details
| Place of Origin | China | Condition | New |
Product Description
cnc hydraulic shearing machine, smooth cutting machine
Item No.: 44
1. The frame is steel-welded construction, vibrating to eliminate stress, with high strength and good rigidity.
2. Hydraulic driven and returning stroke is activated by the accumulator or nitrogen cylinder smoothly and promptly.
3. The sheet is moved easily through rolling ball equipped on worktable and protect the surface of sheet plate.
4. Closed loop control system is composed of NC controller and the encoder. It has the automatic function of inspection and compensation.
5. The back gauge driven by servo motor adopts rolling ball screw, rolling guiding way, so it's positioning precision could reach 0.10mm.
6. There is a display to count the number of cutting, the stroke of beam could be adjusted stepless.
7. The clearance of blades could be adjusted by hand wheel, the value adjusted is display on the indicating plate.
8. Full machine is guarded with safety guard with interlocker to prevent the operator from injured.
Model | Shear size | Shear Angle | Strodes | Backgauge | Main | Weight | Overall Dimensions |
QC12Y-4×2000 | 4×2000 | 1 ° 30’ | ≥21 | 20-600 | 7.5 | 4,650 | 2540×1610×1650 |
QC12Y-4×2500 | 4×2500 | 1 ° 30’ | ≥18 | 20-600 | 7.5 | 5,500 | 3140×1610×1650 |
QC12Y-4×3200 | 4×3200 | 1 ° 30’ | ≥14 | 20-600 | 7.5 | 6,600 | 3840×1610×1650 |
QC12Y-4×4000 | 4×4000 | 1 ° 30’ | ≥10 | 20-600 | 7.5 | 7,550 | 4680×1705×1700 |
QC12Y-4×5000 | 4×5000 | 1 ° 30’ | ≥10 | 20-600 | 7.5 | 16,000 | 5786×2200×2160 |
QC12Y-6×2000 | 6×2000 | 1 ° 30’ | ≥22 | 20-600 | 7.5 | 5,100 | 2540×1960×1650 |
QC12Y-6×2500 | 6×2500 | 1 ° 30’ | ≥18 | 20-600 | 7.5 | 5,500 | 3140×1610×1650 |
QC12Y-6×3200 | 6×3200 | 1 ° 30’ | ≥14 | 20-600 | 7.5 | 6,600 | 3840×1610×1650 |
QC12Y-6×4000 | 6×4000 | 1 ° 30’ | ≥10 | 20-600 | 11 | 8,500 | 4640×1705×1700 |
QC12Y-6×5000 | 6×5000 | 1 ° 30’ | ≥10 | 20-750 | 11 | 19,700 | 5786×2200×2160 |
QC12Y-6×6000 | 6×6000 | 1 ° 30’ | ≥7 | 20-800 | 15 | 25,000 | 6900×2570×2280 |
QC12Y-8×2500 | 8×2500 | 1 ° 30’ | ≥14 | 20-600 | 11 | 5,500 | 3140×1610×1650 |
QC12Y-8×3200 | 4×2000 | 1 ° 30’ | ≥12 | 20-600 | 11 | 6,600 | 3840×1610×1650 |
QC12Y-8×4000 | 8×4000 | 1 ° 30’ | ≥8 | 20-600 | 11 | 8,500 | 4680×1705×1700 |
QC12Y-8×5000 | 8×5000 | 1 ° 30’ | ≥7 | 20-750 | 15 | 21,000 | 5786×2252×2310 |
QC12Y-8×6000 | 8×6000 | 1 ° 30’ | ≥5 | 20-750 | 15 | 28,000 | 6900×2570×2280 |
QC12Y-10×2500 | 10×2500 | 2 ° | ≥10 | 20-600 | 15 | 7,500 | 3350×1750×1950 |
QC12Y-10×3200 | 10×3200 | 1 ° 48’ | ≥10 | 20-600 | 15 | 9,500 | 3975×1750×1950 |
QC12Y-10×4000 | 10×4000 | 2 ° | ≥12 | 20-800 | 18.5 | 15,000 | 4800×2280×2100 |
QC12Y-12×2500 | 12×2500 | 2 ° | ≥11 | 20-600 | 15 | 7,500 | 3350×1750×1950 |
QC12Y-12×3200 | 12×3200 | 1 ° 30’ | ≥10 | 20-800 | 18.5 | 12,500 | 4020×2050×2230 |
QC12Y-12×4000 | 12×4000 | 2 ° | ≥7 | 20-800 | 18.5 | 18,000 | 4820×2300×2300 |
QC12Y-16×2500 | 16×2500 | 2 ° | ≥8 | 20-800 | 18.5 | 15,000 | 3400×2060×2350 |
QC12Y-16×3200 | 16×3200 | 2 ° | ≥7 | 20-800 | 18.5 | 16,300 | 4062×2300×2350 |
QC12Y-16×4000 | 16×4000 | 2 ° | ≥5.7 | 25-800 | 30 | 20,000 | 4850×2300×2300 |
QC12Y-20×2500 | 20×2500 | 2 ° 30’ | ≥6 | 20-800 | 37 | 14,000 | 3440×2088×2570 |
QC12Y-20×3200 | 20×3200 | 2 ° 30’ | ≥5 | 35-800 | 37 | 20,000 | 4150×2310×2730 |
QC12Y-20×4000 | 20×4000 | 2 ° 30’ | ≥5 | 30-1000 | 37 | 25,000 | 4920×2400×2770 |
QC12Y-20×5000 | 20×5000 | 2 ° 30’ | ≥4 | 20-800 | 37 | 30,000 | 5900×3000×3300 |
QC12Y-25×2500 | 25×2500 | 3 ° | ≥5 | 40-800 | 37 | 16,500 | 3450×2300×2730 |
QC12Y-25×3200 | 25×3200 | 3 ° | ≥4 | 40-1000 | 37 | 26,000 | 4100×2400×2770 |
QC11K-8×6000 | 0.5 ° —2 ° | ≥7 | 20-750 | 22 | 25,500 | 6700×2270×2620 | |
QC11K-12×6000 | 0.5 ° —2 ° | ≥6 | 20-1000 | 30 | 29,000 | 6750×2405×2850 | |
QC11K-16×6000 | 0.5 ° —2.5 ° | ≥6 | 20-1000 | 37 | 36,000 | 6800×2555×3000 |
