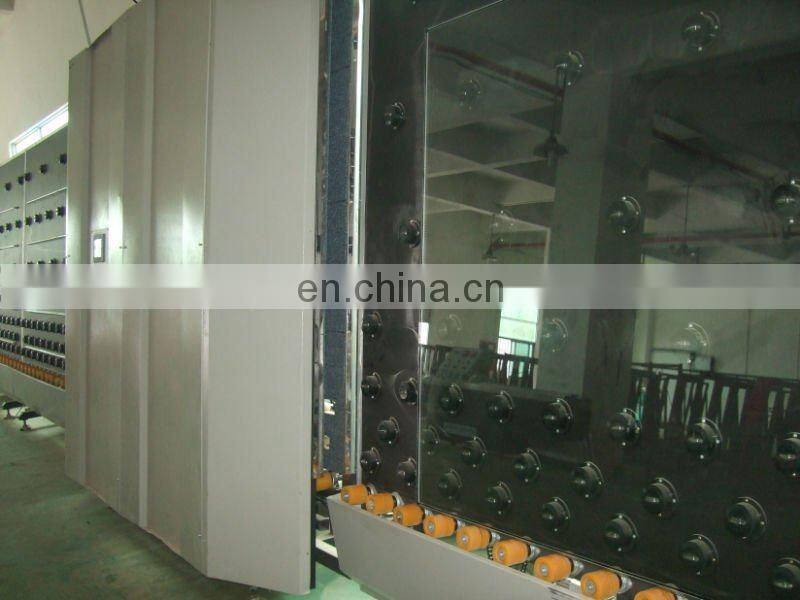

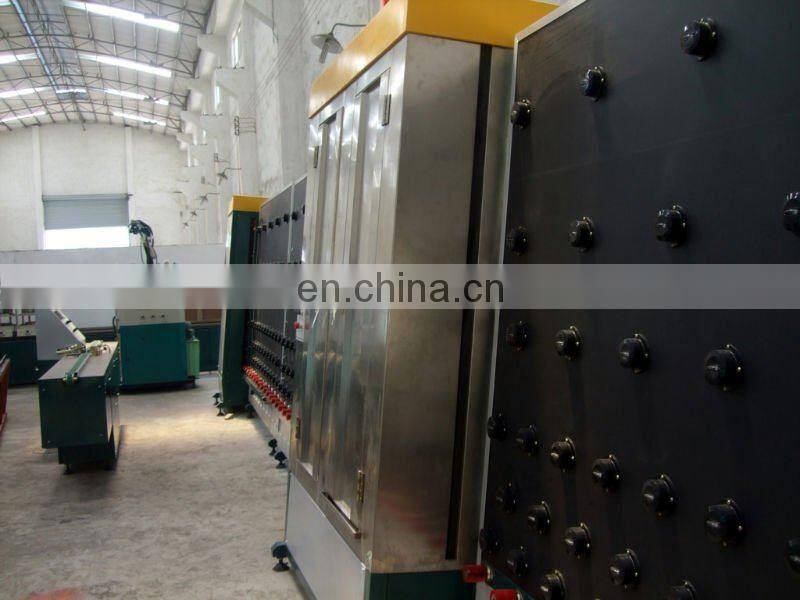

Vertical Automatic Insulating Glass Flat-press Production Hollow Glass Equipment

Brief Introduction

        LOW-E Insulating Glass Production Line.

• Automatic control function for LOW-E Glass(3-brush treatment for LOW-E).
• 2-monitor using system -Temperature/Speed/Production volume -Mechanical trouble check -Whole line control function with 1monitor.
• Specially designed for step insulating glass and three layers insulating glass processing.
• Full distance automatic changeable frequency speed adjustment, which can save work waiting time and improve production efficiency.
• When glass is pressed, the front and back part of flat pressing machine willup the glass with lever- type arm and hand system, ( mechanical position + mobile sucking system) all this will ensure no malposition.

Technical Parameter

Max. glass size         2500×3000~3300mm

Min. glass size          450×200mm

Glass thickness         3—15mm

Working speed          8-48m/min

brush       3 To

Electric power           28kw  3P 380V/1P+N225V  50HZ

Overall dimension     25900mm×1800mm×3350mm

Weight                                  8000kg
