Hebei Hengye Electrical Technology Co.,Ltd: Main products: Solar street light, solar led street light, led solar street light, Lanscape light, Industrial light

Home > Products > LED Solar Street Light > Street Light Solar

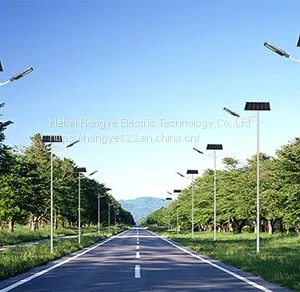

Street Light Solar

Name: Street Light Solar
Brand: Hengye
Availability: InStock

FOB Price

US$ 20 - 450 / Piece

1 Piece(Min. Order)

Port Tianjin / Shanghai
Payment TermsT/T L/C PayPal
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Hengye		Place of Origin	China
Application	Highway		Lighting Bulbs & Tube	Energy Saving

Product Description

Street Light Solar

Light pole:	High-quality steel, hot-dip galvanized, sprayed on the surface of the lamp body (color can be customized)
Power parameters:	220V ± 10V / 50Hz-60Hz
Voltage:	≤36V (inclusive)
Light cover material:	Acrylic
Light body material:	Aluminum
Light source type:	LED
Power:	16W (inclusive) -20W (inclusive)
Irradiation area:	15㎡-30㎡
Lamp height:	8~15 meters
Protection level:	IP65
Warranty period:	2 years

Product Details

1. This lamp holder show

17YS-D-LED004	IP65
Lamp shape(L/W/H)	Power(W)	Material	Path width	Pole height	Pole distance	Ground illumination(LUX )
680/300/160	30/40/50/60	All aluminum	7m-llm	5m/6m/7m	15m-20m	Max26 Average17
810/320/210	70/80/100	All aluminum	12m-20m	7m/8m/9m	20m-30m	Max30 Average20
930/370/230	100/120/150	All aluminum	20m-30m	10m/llm/12m	30m-40m	Max40 Average30

2. Polycrystalline silicon solar photovoltaic panels make photoelectric conversion high efficient and fast charging

Solar cells: Polysilicon solar cells with high efficiency (17.5% or more) are packaged to ensure sufficient power generation of solar panels.

Glass: Low iron toughened suede GLASS (also known as white GLASS), with a thickness of 3.2mm and a transmittance of over 95%, has a high reflectivity for infrared light greater than 1200NM, and can withstand the radiation of ultraviolet light from the sun without decreasing the transmittance.

Rubber film EVA: The high-quality EVA film with a thickness of 0.78mm added with anti-ultraviolet agent, anti-gasification agent and curing agent is used as the sealant of solar cells and the connecting agent between glass and TPT, with high light transmittance and anti-aging ability.

Back glue TPT: The back of the solar cell is covered with fluoroplastic film, which is white and reflects sunlight. Therefore, the efficiency of

the component is slightly improved, and because of its high infrared emissivity, it can also reduce the working temperature of the component, which is also conducive to improving the efficiency of the component.Of course, the fluorine plastic film as solar cell packaging materials required by the aging, corrosion resistance, airtight and other basic requirements at first.

Frame: The aluminum FRAME has high strength and strong mechanical impact resistance.

Power	Optimum working voltage	Optimum working current	Short circuit current(A)	Open circuit voltage	Component size (mm)	Weight (Kg)	Operating temperature (℃)
60W	18	3.33	3.78	21.6	67065030	4.8	-40〜85

3. Featured digital constant current controller / intelligent energy saving, high conversion rate and multi-time lighting control

Digital constant current controller features:

1. Full temperature-40-50℃, full power range, high precision, high efficiency and low power

2. Through the ultimate endurance test, to ensure reliability in extreme environments

3. Six hours programmable load power control

4. Intelligent battery charge and discharge management, intelligent energy-saving control

5. Temperature protection / photovoltaic cell polarity protection / overload protection / overcharge and overdischarge protection / battery polarity protection / sensor fault protection

6. Expandable infrared human body induction, voice-controlled microwave sensing. Remote communication control function.

Power

Charging method

Applicable method

Discharge method

The output voltage

Maximum output / Charging current

Operating temperature

120V/40W

pwm

Lead acid colloid

Boost constant current

12V system: 17V-59V

24V system: 33V-60V

2. 0A/10A

-35〜55

4. Built-in large-capacity gel battery / large-capacity power for long service life

Gel battery characteristics:

High and low temperature resistance: wide temperature range (lead acid: -25 ° C ~ 45 ° C; colloid: -25 ° C ~ 45 ° C), Suitable for indoor and outdoor use in various environments.

Long life: Nano-colloidal electrolyte, corrosion-resistant, no electrolyte layer, battery design life lead acid is greater than 12 years, colloid is greater than 15 years.

Charging efficiency: Low-resistance raw materials and advanced process design, small internal resistance, and strong low-current charging capability.

Recovery performance: It adopts flat-pole plate and special lead paste formula, low self-discharge rate and deep discharge, and has strong capacity recovery ability.

Green and environmental protection: The battery formula does not contain cadmium substances that are polluted by the environment and difficult to recycle. The colloidal electrolyte has no leakage, which truly guarantees the environmental protection and safety of the battery.

Comprehensive performance: Product design and quality control, R&D and production management follow high quality requirements.

Name	Adapted power	Recharging current	Discharge parameter	Operating temperature℃	Overcharge protection	Over discharge protection	Size and weight
Lead-acid batteries (colloid)	50AH	5A	50W/14H	Lead acid: -25℃~45℃ Colloid: -25℃~45℃	14.40±0.10v	≥10.80±0.10v	15.7kg

5. Built-in maintenance-free lithium battery / high capacity 1000 times or more cycle charge and discharge

1. Digital intelligent detection operation, detecting the charge and discharge ratio to ensure normal lighting in rainy days.

2. Intelligent charging. Using light effect control, strong light fast charge and slow charge, to ensure efficient use of light energy.

3. Intelligent detection of matching light sources to effectively improve load efficiency.

4. Real-time reading of working status and writing working parameters on site.

5. Automatically detect overcharge and over discharge control and activate.

6. Relative to the battery, the lithium battery can be densely packed and has a high storage energy density. It has reached 460-600WH/KG, which is about 6-7 times that of lead-acid batteries.

7. Batteries with lithium ferrous phosphate as the positive charge and discharge through ICDOD. There are records that can be used 1000 times.

8. Self-discharge rate is low, no memory effect.

Name	Load power	Load performance	Adapter PV module	Adapter battery	Size (MM)	Time
Lithium battery machine	30W	10 string 3 and 90mA	60V	20WH	55010954	30W6h 20W10h

6. Led solar street light equipment

The company has first-class LED series production equipment and testing equipment

LED solar energy production, testing, assembly workshop intelligent production line, testing equipment

Hengye LED production workshop has intelligent production automatic assembly line, all kinds of testing equipment. LED high-power placement machine, beading machine, CNC reflow soldering machine ensure high standard, high speed and high quality of LED intelligent production; which can ensure the normal operation of the lamp in a wide range of voltage levels; The detection system can quickly detect the light source parameters and issue the test report.

Large stock and Capacity guarantee

7. Standard parameters of street light:

The city light system consists of lamp pole, flange,lamp arm, lamp head and embedded parts.

Solar street light system consists of lamp pole, flange, lamp arm, lamp head, embedded parts, solar support, solar panel, battery and controller.
