New Arrival UG69PD2 DL6950 USB-C Universal Docking Station for Laptop with Power Delivery
Main Features:
1. USB3.1 Type-C and Standard-A connectors compatible both Type-C Laptop
2. 100Watt Power Adapter support 60Watt upstream Laptop Charging, and 40Watt power for all downstream devices
3. Build in USB 3.0 GPU, Plug and Display Certified by DisplayLink

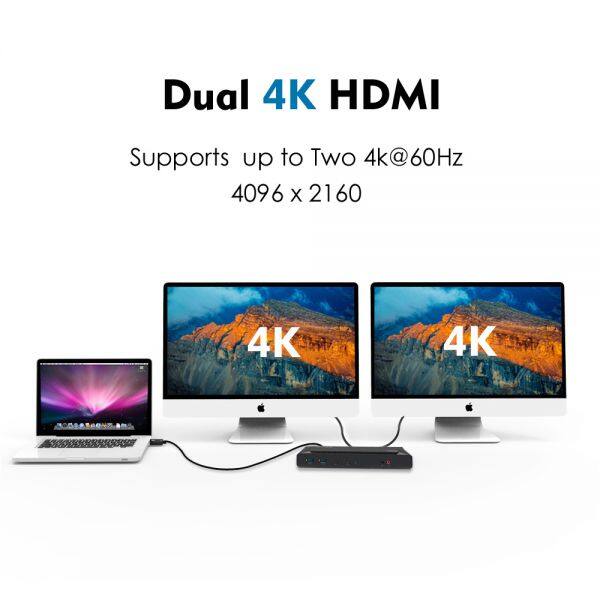

4. 2 x DP++ (Dual Mode DP1.2) support resolution up to (4K)4096 x 2160p6

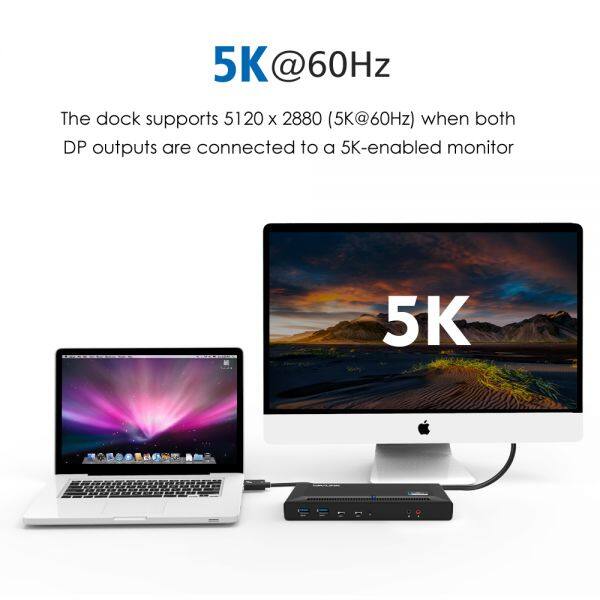

5. Support resolution 5k)5120 x 2880p60 when only using one DP++ port
6. Support Extend and Mirror Video Mode. 5.1 Channel surround-sound through Display Port interface

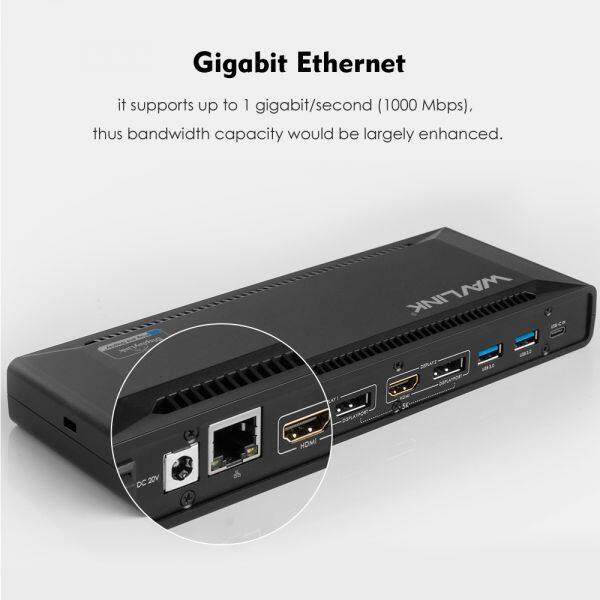

7. Gigabit Ethernet network RJ-45 backward 10/100 Ethernet
8. 2.0 Audio Line-out Jack for Earphone and Line-In Jack Microphone
9. 4 x USB 3.0 downstream ports, and 2 x USB-C Gen1 support BC1.2 fast charging to devices
Specifications:
| Model No. | UG69PD2 |

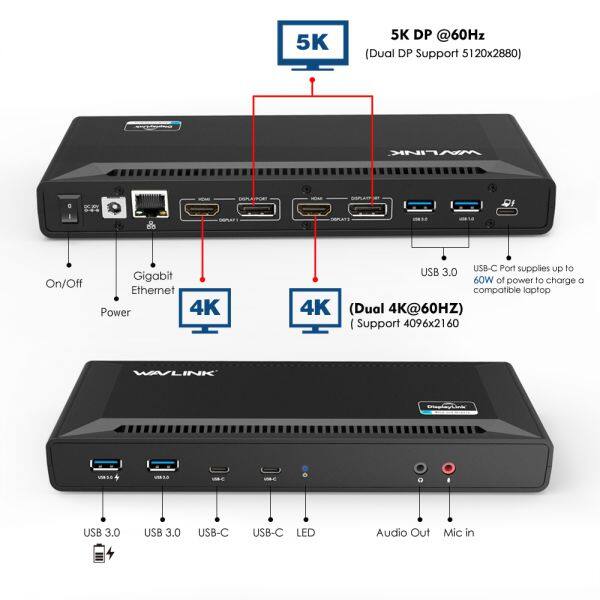

| Ports | 1 xUSB-C(to Host); 2 xDP; 2 xHDMI; 4 xUSB3.0 Type-A ports; 2 x USB-C Gen1 ports; Earphone and Microphone Jack; RJ45 Jack; LED; On/Off Switch |
| Button | On/Off Switch |
| LED | Blue LED |
| Chipset | DL6950 FL5002 GL3523 |
| Flash | 64Mb |
| SDRAM | DDR3 8Gb |
| Power Supply | DC20V/5A 100Watt |
| Power Plug | US/EU/UK or by request |
| Power Consumption | 60Watt upstream and 40Watt downstream |
| Rated Volt./ Freq./Current | 100-240 Va.c. 50/60Hz, 2A Max , CLASSⅡ |
| Working Standards |
1. Hub running at USB3.0 speed 2. Upstream Charging 60Watt 3. DP or HDMI resolution Max. 4096 x 2160 p60 4. Ethernet running at Gigabit 5. 2.0 channel Audio |
| Operating System Support | Microsoft Windows & Apple Mac OS |
| Max. Pixels | 5120*2880 p60 |
| Max. Charing Current(A) | Upstream 20V / 3A Charging to host PC |
| Operating Temperature | 0ºC~40ºC |
| Storage Temperature | -10ºC ~70ºC |
| Relative Humidity(Operational) | 10%~90%,noncondensing |
| Relative Humidity(Storage) | 10%~90%,noncondensing |
