upvc casement window door profile cnc vertical 4 corner welding machine

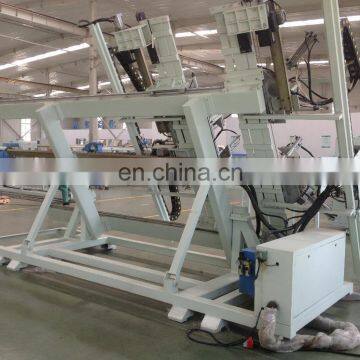

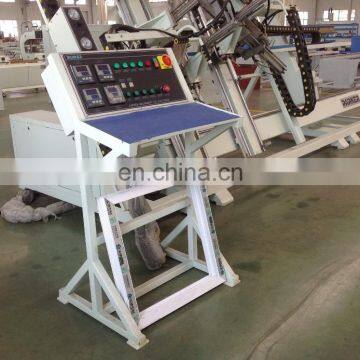

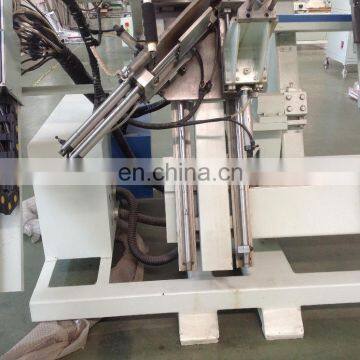

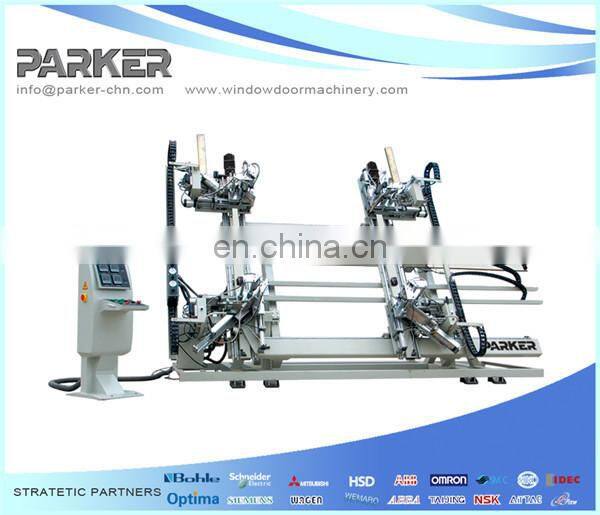

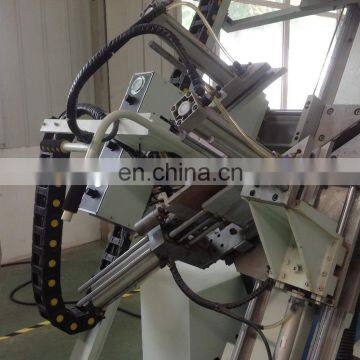

SHP4-CNC-1800×3000 4 corner vertical welding machine is a special automatic machine for welding PVC door and window profiles. This CNC vertical four-point welding machine is a new type of product developed by our company. It is an ideal equipment for mass production of PVC windows and doors. The four welding heads can finish the welding of rectangle window frames or sashes in one-time operation with high efficiency. Parker 4 corner vertical welding machine also uses CNC control system, imported MITSUBISHI servo motor and PLC, and super touch screen control system. This CNC vertical four-point welding machine is easy to operate.
1. The 4 corner vertical welding machine has crimping and positioning functions. It effectively ensures the dimensional accuracy of welding products, such as the shape and location accuracy and flatness.
2. This CNC vertical four-point welding machine can realize welding a frame at one time, which greatly enhances the work efficiency.
3. SHP4-CNC-1800×3000 4 corner vertical welding machine is equipped with servo motor and assistance brake system.
4. Transmission adopts the original imported ball bearing master screw. The precision is extremely high so that it can guarantee the welding quality.
5. Through the rational control, our CNC vertical four-point welding machines can effectively increase profile welding area and increase 30% welding intension.
| Model | SHP4-CNC-1800×3000 |
| Type | CNC 4 Corner Vertical Welding Machine |
| Voltage | 380V 50 Hz |
| Total Power | 10 kW |
| Air Pressure | 0.5 to 0.8 MPa |
| Air Consumption | 120 L/min |
| Max. Welding | 3000 mm × 1800 mm |
| Min. Welding | 380 mm × 420 mm |
| Profile Height | 20 mm to 120 mm |
| Max. Profile Width | 120 mm |
| Conveying Speed in the Middle Part | 30 m/min |
| Overall Dimension | 5000 mm × 2100 mm × 2870 mm |
| Weight of CNC Vertical Four-Point Welding Machine | 3000 kg |
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement
