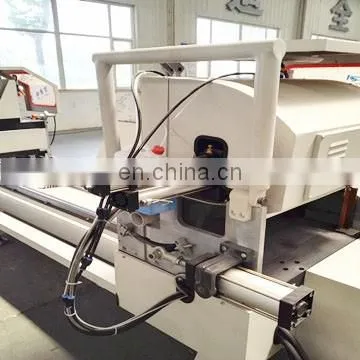

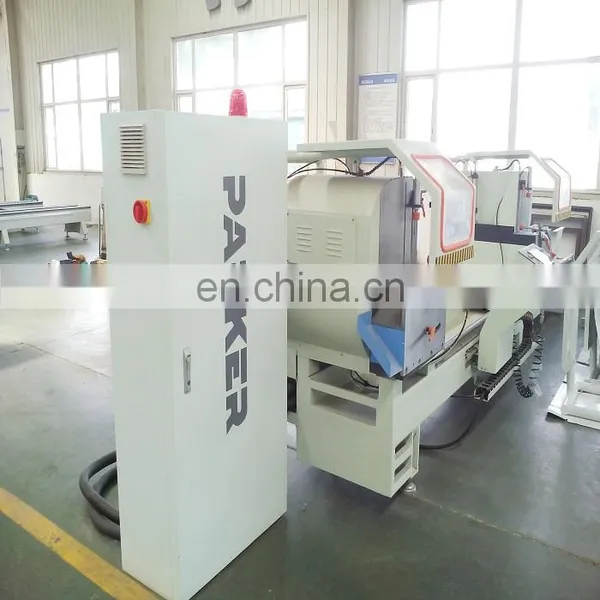

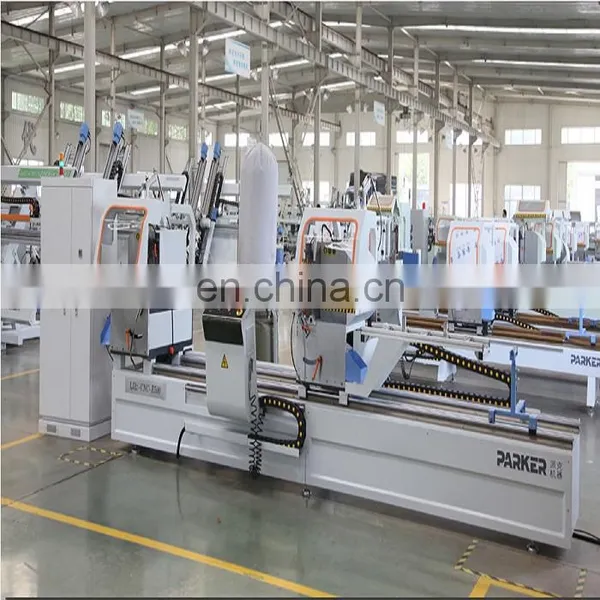

Hot Sale Good Quality Cutting saw aluminium Door and Window Making Machine
Model: LJZ -CNC-E500
Feature:
1. It has large cutting range, hi-efficiency and perfect safe guards. It is suitable for large scale production.
2.The structure is strong and of excellent rigidity and reliability, so it is impossible to be out of shape.

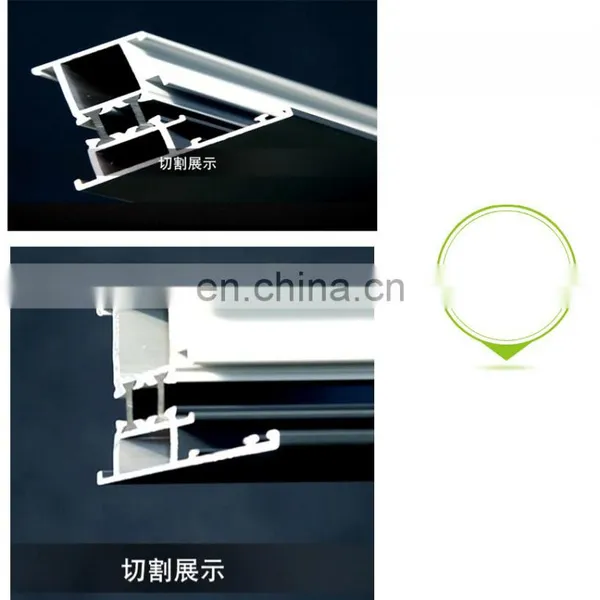

3.The hi-quality imported special hard-metal saw makes cutting more precision.

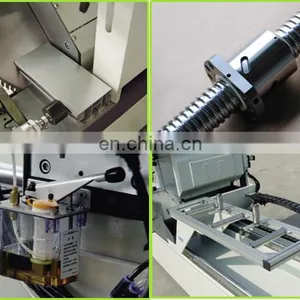

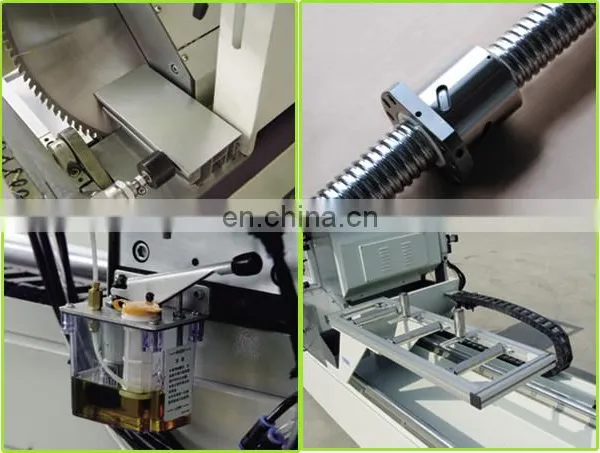

4.The main shaft with hi-precision makes the saw operating stable and the cutting surface smooth.
5.The gas-liquid damping cylinder realizes smooth feeding and steady moving.
6.The imported guide rails and the linear motion pair can realize high precision and accurate location.
7.The two-way location-and-clamping features high precision and steadiness.
8.The well-sealed safeguard of saw blade prevents the cutting bits from flowing everywhere.
Parameter:
Voltage: 380V 50HZ
Power: 5.9KW
Air pressure: 0.5-0.8MPa
Air consumption: 200L/min
Blade specification: Φ500 × Φ30 × 4.4 Z = 120 (standard size)
Cutting length: 400mm-4200mm
Cutting width: Max.135mm
Cutting height: Max.300mm
Cutting angle: 45° 67.5° 90°
Repeat locating length error: ± 0.2 mm
Cutting angle error: ± 4′
Surface plainness: ± 0.1mm
Surface roughness: Ra12.5 m
Overall dimension: 5500mmX1750mmX1990mm

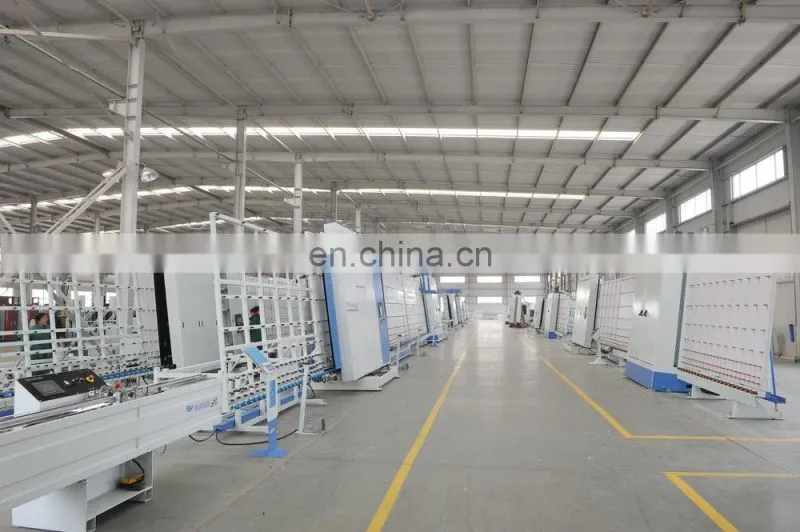

Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
Parker Company Video link:
/watch?v=hYwmgxfRge4
