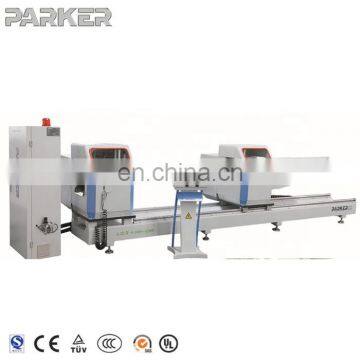

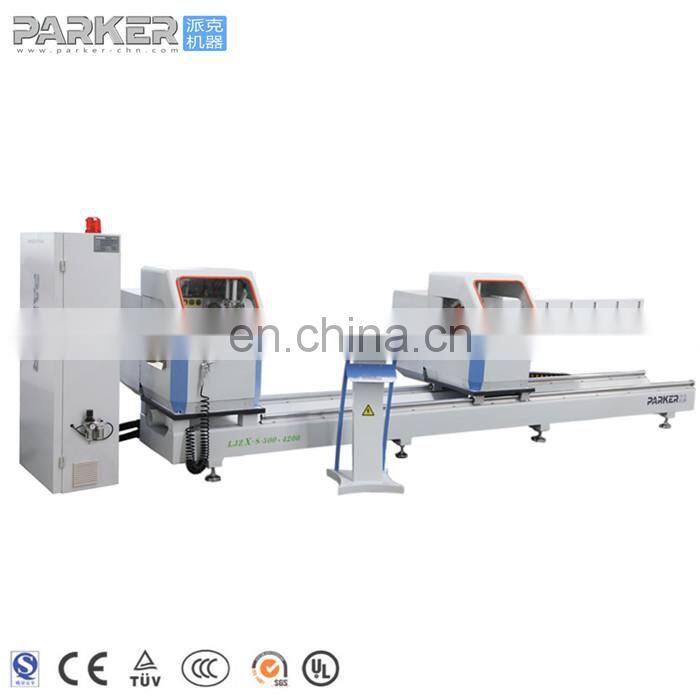

LJZ2X-S-500/650*4200 Heavy Duty CNC Double Head Any Angle Cutting Machine
US$ 22,000 - 22,000
1 (Min. Order)
- T/T Credit Card
You May Like
Product Details
| Brand Name | PARKE | Place of Origin | Shandong, China | |
| Certification | ISO CE SGS | |||
| Weight | 1800KG | |||
| Dimension(L*W*H) | 6000*1420*1650mm | Condition | New | |
| Voltage | 380V/50HZ/3PH, 380V/50Hz | Usage | PVC and aluminium profile any angle cutting | |
| Power(W) | 4KW | Style | Horizontal |
Product Description
LJZ2X-S-500/650*4200 Heavy Duty CNC Double Head Any Angle Cutting Machine
Product Description
LJZ2X-S-500/650*4200 Heavy Duty CNC Double Head Any Angle Cutting Machine is used for cutting aluminum alloy profiles and wall profiles. As a CNC controlled equipment, it can realize cutting profiles in any or arbitrary angle. Parker is a professional manufacturer and supplier of CNC cutting saws in China. In addition to this aluminum window and door machinery, we also provide aluminum profile corner crimping machine, end milling machine, aluminum profile punching machine, aluminum profile copy router, ACP processing machine, etc. The three axis aluminum profile cutting saw (3 axis CNC cutting saw for aluminum profile) has won widespread praise and recognition by customers.
Main Features
1.It is mainly used for cutting aluminium profiles such as industrial profiels,curtain wall and window profile,PVC profile can also be cut.
2.Equipped with hard alloy saw blade,the maximum external diameter can be up to 650mm,with high linear velocity and processing precision.
3.Equipped with Italian CNC length positioning system,working table and saw blades can be rotated with any angle;with enlarge 4 KW motor.
4.High precision for length and angle positioning which is much suitable for cutting large section and various angle curtain wall and window profiles.
2.Equipped with hard alloy saw blade,the maximum external diameter can be up to 650mm,with high linear velocity and processing precision.
3.Equipped with Italian CNC length positioning system,working table and saw blades can be rotated with any angle;with enlarge 4 KW motor.
4.High precision for length and angle positioning which is much suitable for cutting large section and various angle curtain wall and window profiles.
Paraneters
| Cutting Length | 350-4960mm |
| Cutting Height & Width | 350*180mm(90°) 330*130mm(45°) |
| Main Motor Power | 4KW |
| Main Motor Rotation Speed | 2880r/min |
| Saw Blade Specification | Φ650*5.0/4.0*φ30 |
| Cutting Angle | 90°-45° |
| Blade Feeding Speed | 0-3m/min |
| Blade Returning Speed | 2-3m/min |
| Air Pressure | 0.5-0.8Mpa |
| Voltage | 380V 50Hz |
| Overall Dimension | 6000×1420×1650mm |
| Weight | 1800kg |

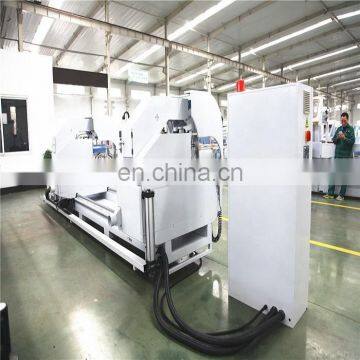

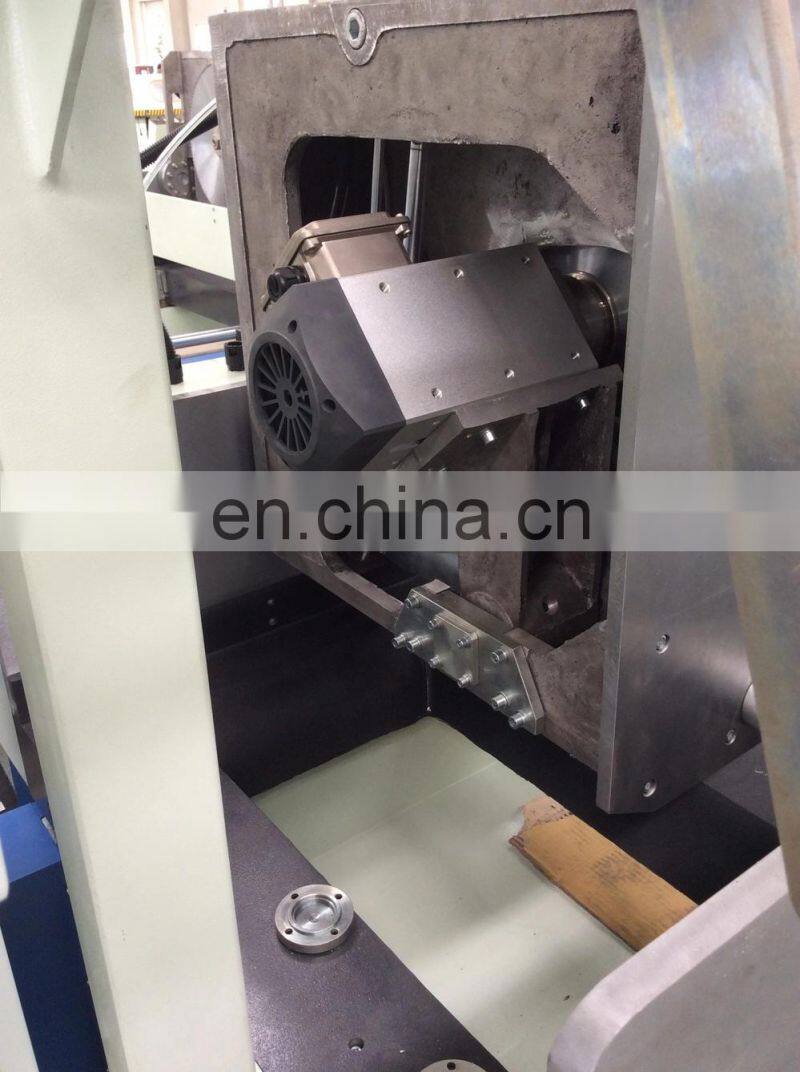

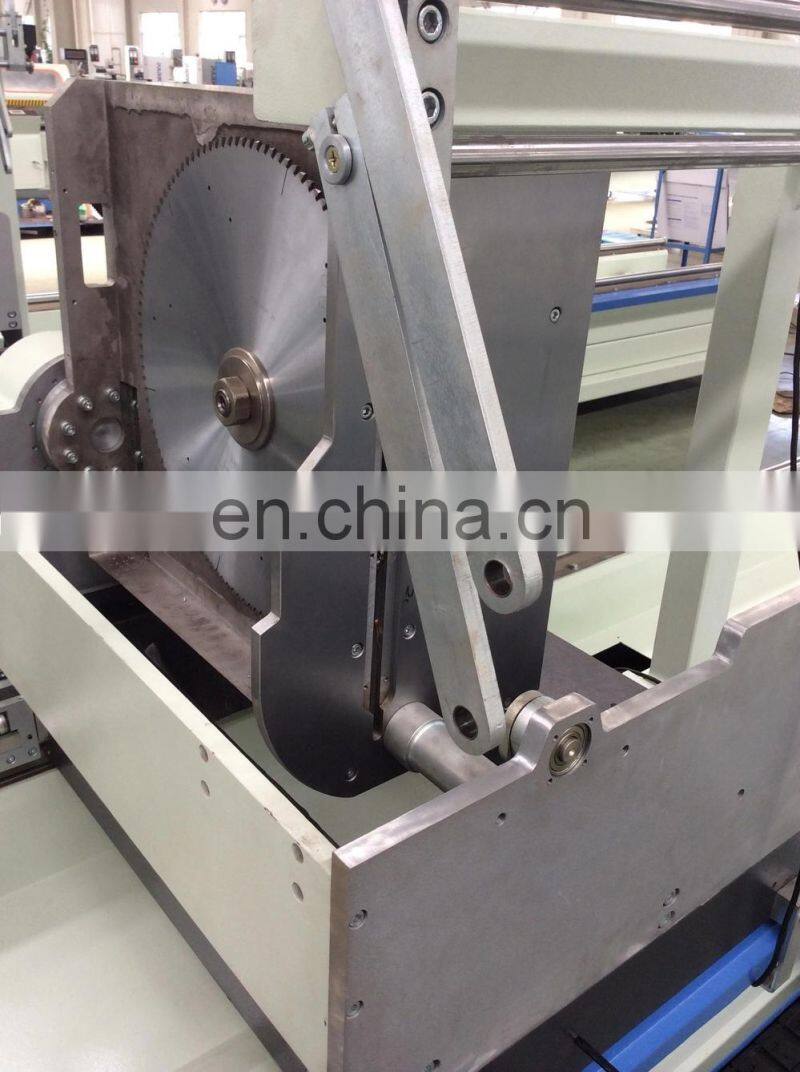

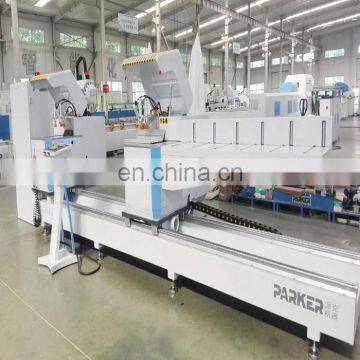

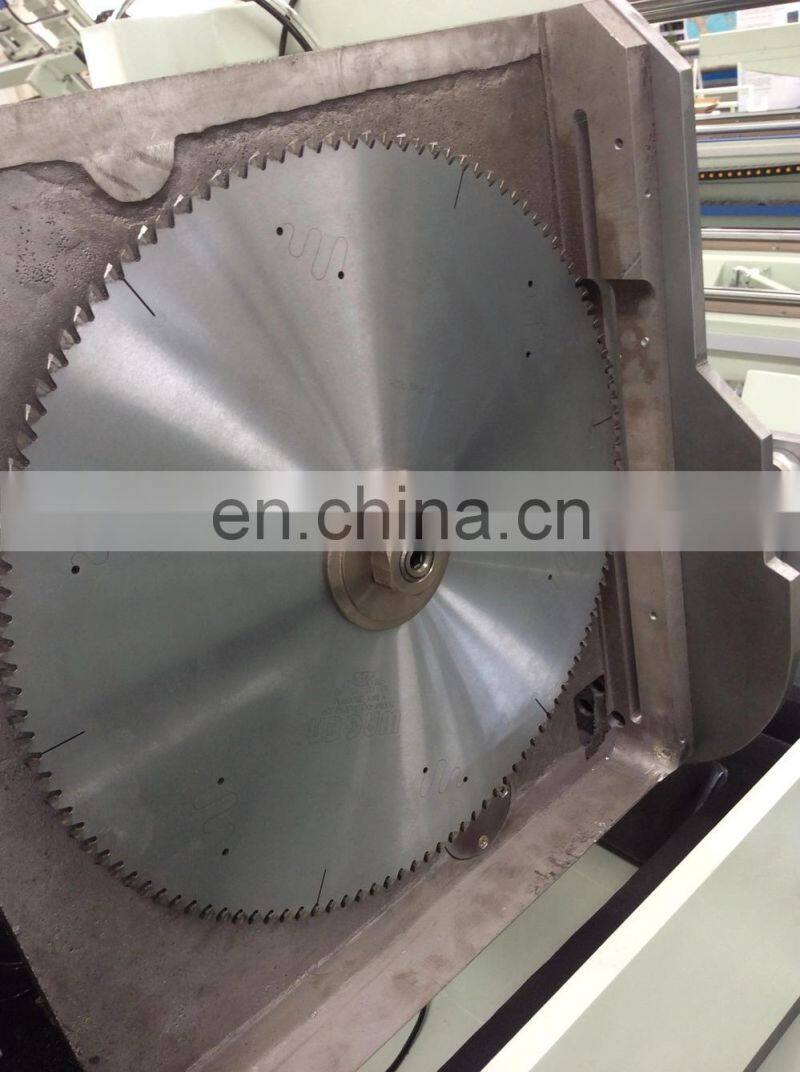

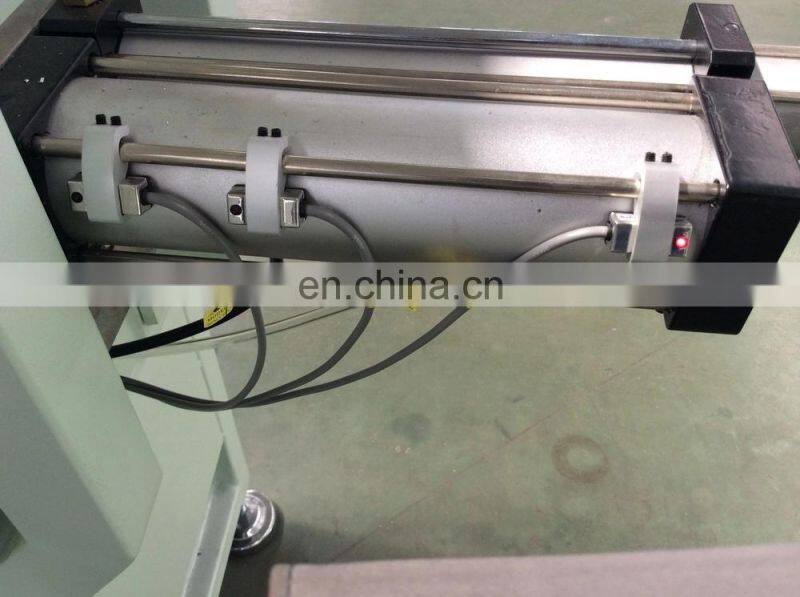

Detail pictures

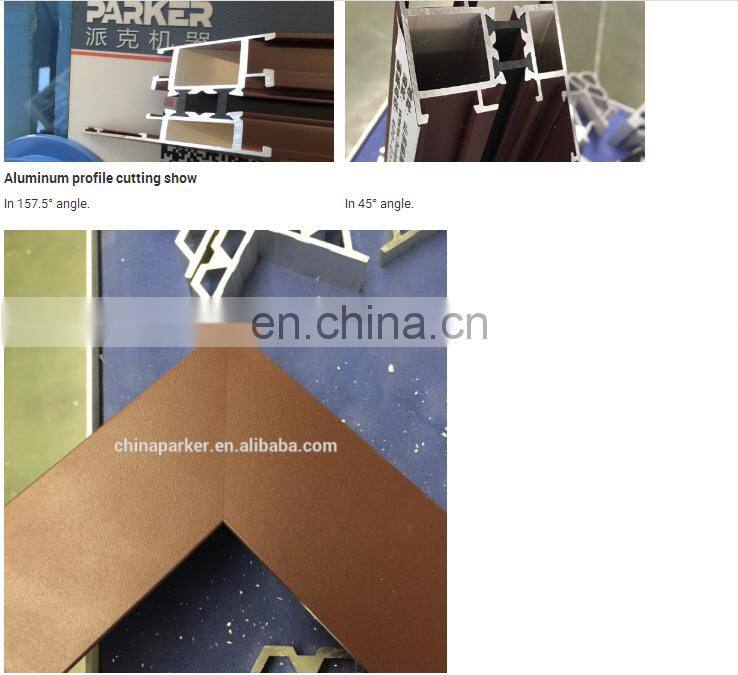

Samples

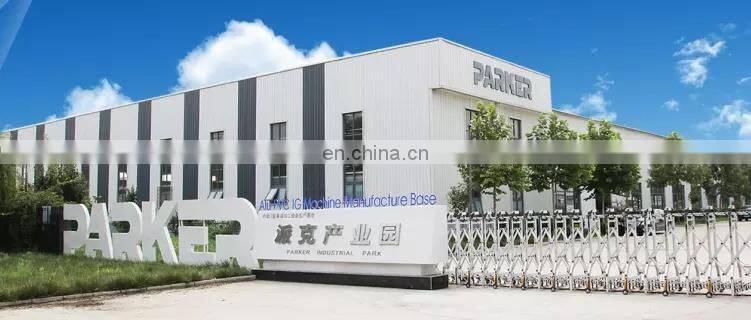

Factory
