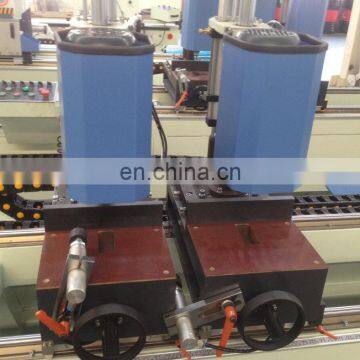

Help CenterCnc Drilling Machine for Aluminum and PVC and Wooden Profile Drilling
Related Products
-
Multi Head Automatic Drilling Milling Machine for Aluminum Window and Door and Facade ProfilesUS$ 11,900 - 29,900MOQ: 1 Set -
Manual Type Aluminum Window Cutting Machine Single Head Mitre Saw TypeUS$ 3,900 - 9,900MOQ: 1 Set
-
Aluminum Window Mullion Profile Fabrication Machine for End MillingUS$ 7,900 - 13,900MOQ: 1 Set
-
Aluminum Window Profile End Milling Machine for MullionUS$ 7,900 - 13,900MOQ: 1 Set
-
Aluminium Window Door Cutting Saw Cutting MachineUS$ 12,000 - 12,000MOQ: 1
Description
LDDZZ6-13 multi-head drilling machine is primarily used for the punching process in the manufacture of aluminum alloy and curtain wall profiles. This drilling equipment is also used for the processing of industrial profiles and window profiles. Adopting pneumatic-hydraulic damp feeding system, it can drill holes more steadily and accurately. Installed with many punching dies, multi-head drilling machine can process many holes simultaneously. Besides, Jinan Parker drilling equipment is suitable for long profiles and large-scale production.
Features
1. The feeding system adopts the hydraulic damper cylinder to realize stable feeding.
2. LDDZZ6-13 multi-head drilling machine is applied for the profile or the section of no more than 250 × 250 mm. The processing length can reach 5000 mm.
3. This drilling equipment can be installed with multi-head drilling seats, which satisfies the processing performance of many groups of holes.
4. Parker has an independent R&D team that can design and develop multi-head drilling machines based on our own technology. There are a lot of market research engineers engaged in design and improvement of this drilling equipment.
Parameter:
Model |
LDDZZ6-13 Multi-Head Drilling Machine |
Power Supply |
380V 50 Hz |
Motor Power |
0.75 kW × 6 |
Rotary Speed |
1400 rpm |
Air Consumption of Multi-Head Drilling Equipment |
60 L/min |
Max. Drilling Diameter |
13 mm |
Max. Distance between Two Drilling Holes |
5000 mm |
Workbench Dimension |
300 mm × 220 mm |
Drilling Cutter Feeding Travel |
125 mm |
Max. Forward-Backward Moving Distance of Head |
60 mm |
The Quantity of Power-Drill |
6 |
Hole Dimension Error |
± 0.3 mm |
Hole Position Error |
≤ 0.3 mm |
Overall Dimension |
5000 mm × 1260 mm × 2000 mm |
Weight of Multi-Head Drilling Machine |
2500 kg |
Founded in 2003, Parker Machinery Co., Ltd has developed an assembly line for door, window, curtain wall and insulating glass equipment. With over ten years' production experience, Parker has become a leading manufacturer of window door machinery in China. The operation of high precision, advancement and specialty ensure that we are able to supply high-quality window and door equipment for customers.
During the past few years, Parker has made great progress and has become well known and outstanding in domestic fairs for window door machinery. With advanced technological equipment, tremendous technical strength and reliable product quality, our window and door equipment has been well received by customers from Russian, Kazakhstan, Vietnam, Iran, etc. We have a perfect sales network and complete service system in China. We are also taking a leading role in setting branch companies abroad.
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement
1. When can we arrange shippment?
We usually arrange shippment in 15 days after getting deopsit, but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
