Aluminum Window Door Profiles Frame Making Machine/ Hydraulic Double Head Corner Crimping Machine

Aluminum Window Door Profiles Frame Making Machine/ Hydraulic Double Head Corner Crimping Machine photo-1

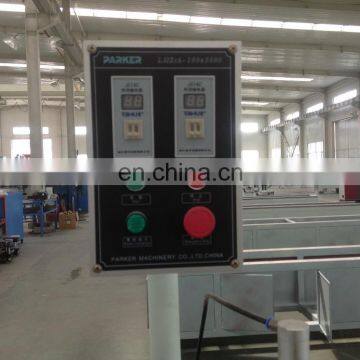

Aluminum Window Door Profiles Frame Making Machine/ Hydraulic Double Head Corner Crimping Machine photo-2

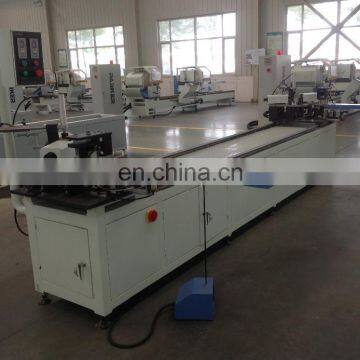

Aluminum Window Door Profiles Frame Making Machine/ Hydraulic Double Head Corner Crimping Machine photo-3

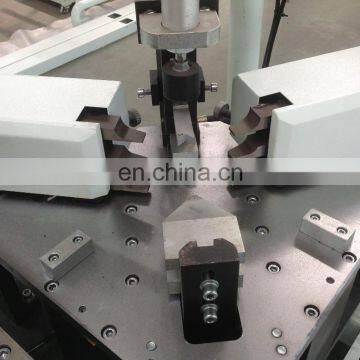

Aluminum Window Door Profiles Frame Making Machine/ Hydraulic Double Head Corner Crimping Machine photo-4

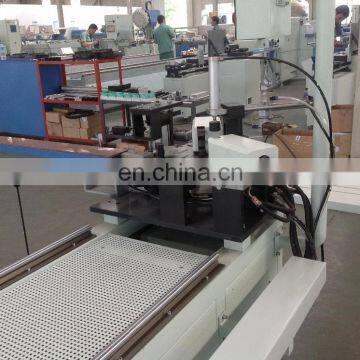

Aluminum Window Door Profiles Frame Making Machine/ Hydraulic Double Head Corner Crimping Machine photo-5
US$ 2,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Parker
Place of Origin:
Shandong, China
Model Number:
LJJZ2A-100X3500
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Parker
Place of Origin Shandong, China
Model Number LJJZ2A-100X3500
After-sales Service Provided Engineers available to service machinery overseas







Product Description



1. Used for corner punching and riveting combination of aluminium window and door. Two corners connecting at one time is available with high efficiency production.

2. Wide profile processing range due to convenient locating and clamping device setting.

3. High processing accuracy due to super precision linear motion pair adopted in mobbing parts.









    Aluminum Window Door Profiles Frame Making Machine/ Hydraulic Double Head Corner Crimping Machine





Aluminum Window Door Profiles Frame Making Machine/ Hydraulic Double Head Corner Crimping Machine



Features:



1. Used for corner punching and riveting combination of aluminium window and door. Two corners connecting at one time is available with high efficiency production.

2. Wide profile processing range due to convenient locating and clamping device setting.

3. High processing accuracy due to super precision linear motion pair adopted in mobbing parts.

4. Hydraulic system supplied large punching and riveting force.

5. The double-foot brakes make it operate freely, and the reject lowered. So the efficiency and the precision are increased greatly.

6. It can feed automatically and operate easily.



Parameter:





Voltage:

380V   50HZ

Power:

4KW

Air pressure:

0.5-0.8MPa

Air consumption:

60L/min

Hydraulic system pressure:

15MPa

Oil tank capacity:

40L

Corner assemble:

0-50mm

Max. distance between the two heads:

Max 3500mm   Min450mm

Max. dimension of window:

510x510mm

Max. width of profile:

100mm

Seam of crimping error

≤0.15mm

Overall dimension:

4300mmx1200mmx1350mm









Our Services



1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.

3.Life time free maintenance service.

4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement





FAQ

1. When can we arrange shippment?

We usually arrange shippment in 15 days after getting deopsit, but customized machines should be more than 25 days.

2.What you can do if my machines have problems?

a.We can send you free components to you if your machines are in guarantee time.

b.We can send our engineers to repair your machines
