Insulating Glass Machine Vertical Washing Glass Machine - Double Glass Line

FOB Price

US$ 30,000 - 70,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	PARKER	Place of Origin	Shandong, China
Model Number	IGV25-S	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	1 year
Weight	5500Kg	Dimension(LWH)	22800mm * 2800mm * 3400mm
Production Capacity	800pieces/day	Condition	New
Voltage	380V 50HZ	Power(W)	31KW
Machine Type	Insulating Glass Production Line

Insulating Glass Machine Vertical Washing Glass Machine - Double Glass Line

Model: IGV25-S

Features:

ØThe electric component, sensor and PLC auto-controlling is imported low power supply;
ØThe appliance is efficient for the operator can input the order continuously;
ØTouching screen is imported originally. It is easy to operate. The process and fault can be showed automatically;
ØIt is controlled by punctuated system which is energy-saving. The inspecting and combining speed up when other non operating parts are intelligent-asleep;

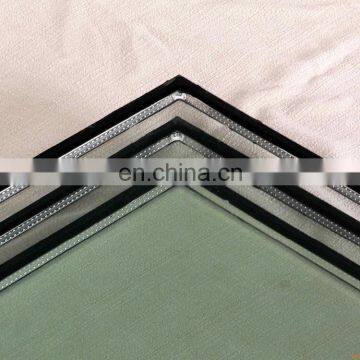

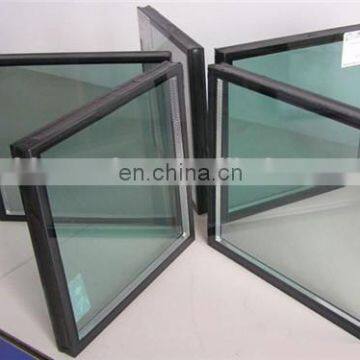

ØIt can produce big and small scale insulating glass(Optional)

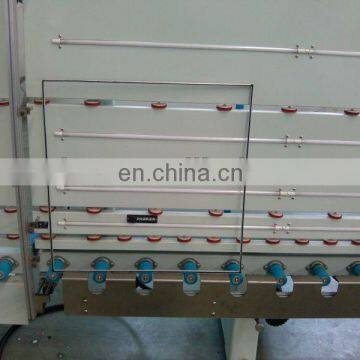

ØCleaning Part is consisted of stainless steels. Three pairs of brush can work separately. It can recognize the LOW-E glass automatically. So it can protect the LOW-E glass from scratching.
ØThis machine adopts inverter control transmission motor. So it can easily slow down and accelerate.
ØThis machine has the self- diagnosis function, which is easy for check the error.

Parameter:

ØVoltage:	380V 50HZ
ØPower:	31KW
ØAir pressure	0.5-0.8Mpa
ØAir consumption:	160L/min
ØWashing Speed:	0-12m/min
ØMax. processing speed:	40m/min
ØMax. process dimension:	2500mm x 3450mm 2500×5000mm (for second time pressing)
ØMin. process dimension:	250mm x 480mm
ØProcessing glass type	ordinary-coated
ØProcessing thickness of insulating glass	12-60mm
ØGlass cleaning thickness:	3-12mm
ØOperating height	485±50mm
ØInclination angle	6°
ØDepth of coating	0-20mm
ØWorking direction	Left-right or Right-left
ØStepped glass size	Vertical: 0-40mm, horizontal: 0-230mm
ØWorking type	Lead screw
ØOverall dimension:	22800mm * 2800mm * 3400mm
ØWeight	5500Kg
