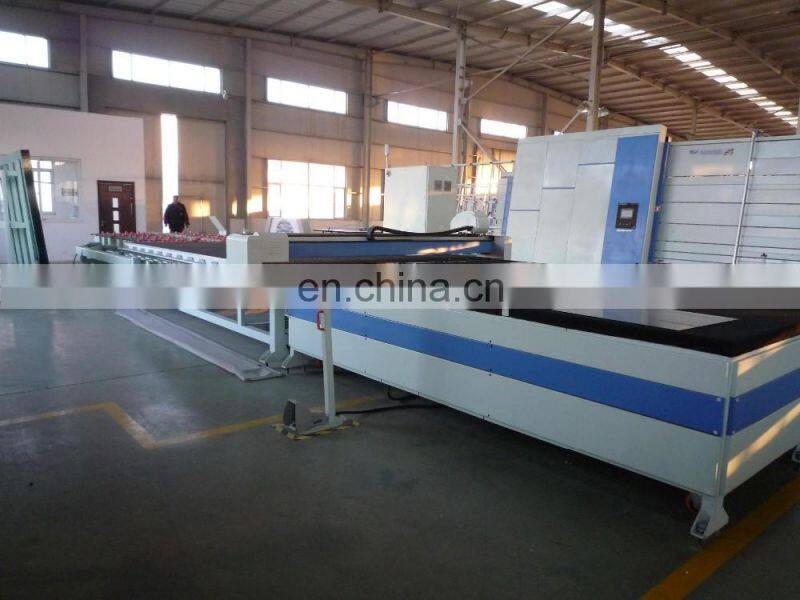

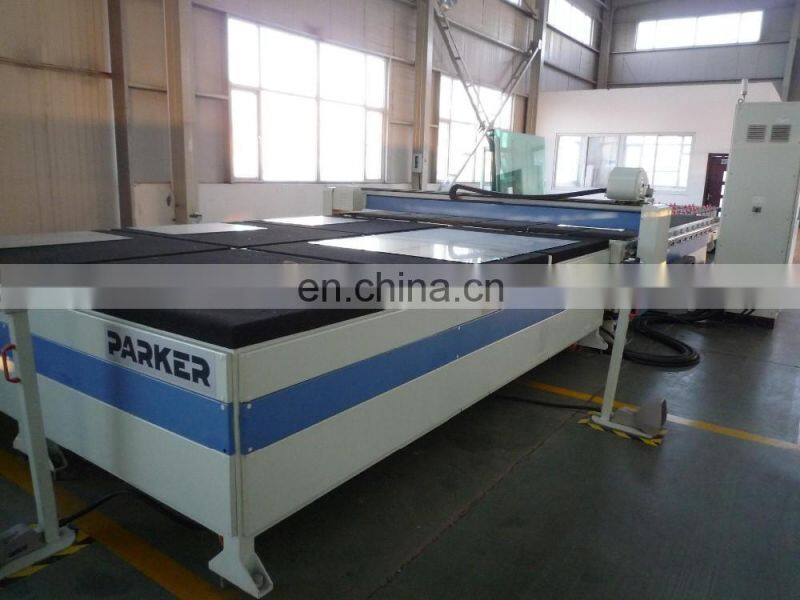

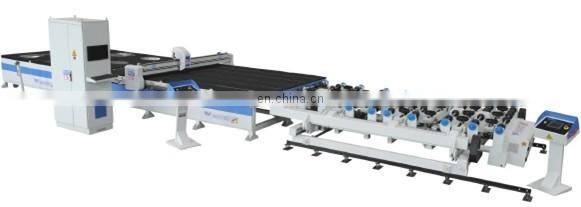

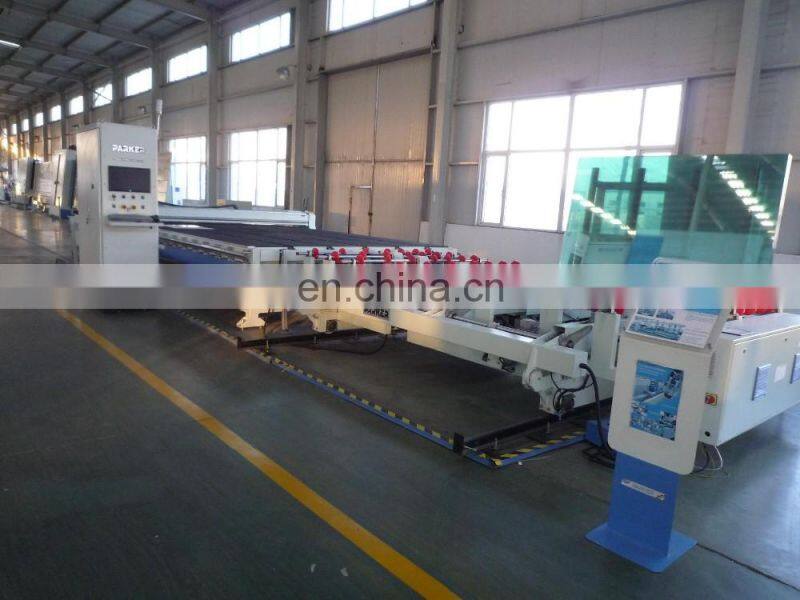

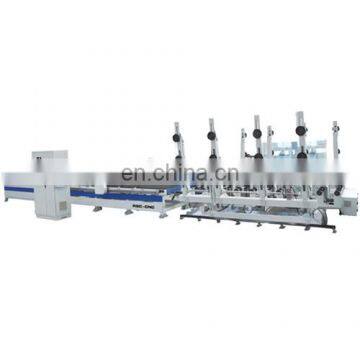

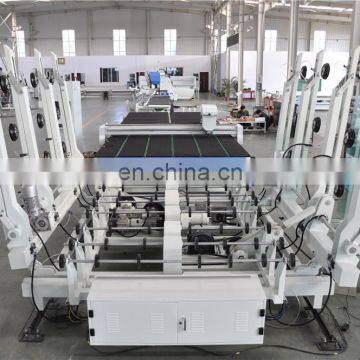

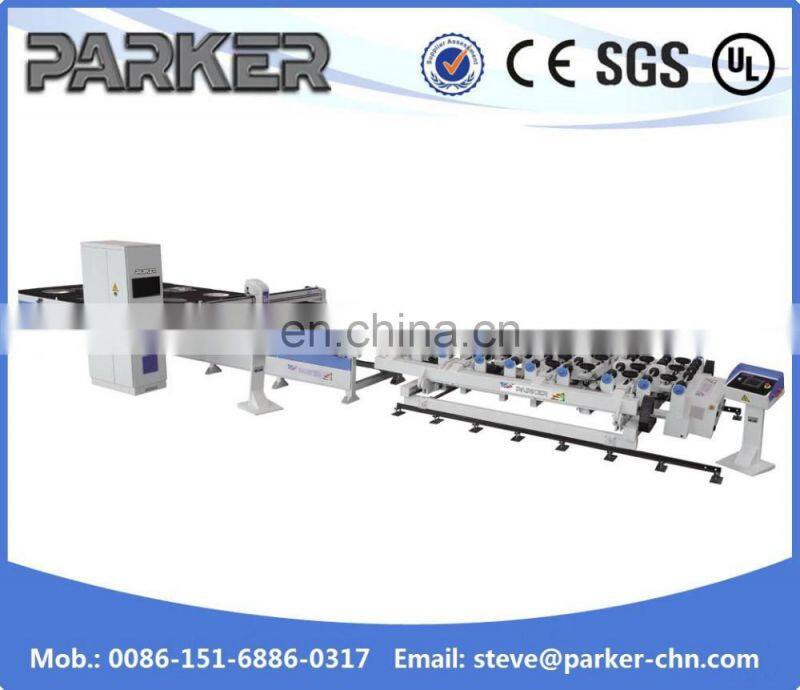

CNC Glass Cutting Machine/glass Cutting Table

              Voltage:

380V/220V 50HZ

              Power:

9KW

              Air pressure:

0.5-0.8Mpa

              Vacuum pressure:

-70~90Kpa

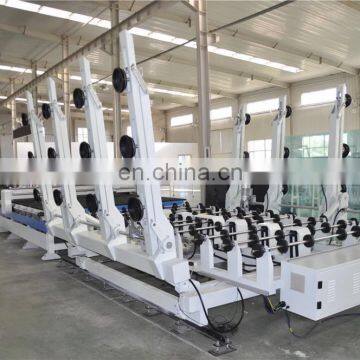

              Loading Sheet size

Min. size:1500*1500mm,

Max. size:2440*3660mm

              Loading thickness:

2~19mm

              The fastest loading cycle:

30-60s

              Transfer speed:

0~40m/min

              Max. suction depth:

750mm

              Max. loading weight:

900Kg

              Unilateral upper arm volume:

Four arms

              The number of single arm suckers:

Three

              Turning arm:

Double

              Loading position:

Multi-position

              X axis normal moving speed:

25m/min

              Y axis normal moving speed:

5m/min

              Table Height:

900±50mm

Voltage:

380V 50HZ

Power:

15-20KW

Air pressure:

0.5-0.8Mpa

Cutting size Max.:

3660mmx2500mm

Cutting speed:

0-150m/min

Glass thickness:

2-25mm

Cutting accuracy

±0.20mm

Blade arm moving speed:

160m/min

Blade arm location error:

±0.15mm

Carrying glass size:

Min. 1500mm x 1500mm

Max. 2440mm x 3660mm

Carrying glass thickness:

2-19mm

Carrying Max. weight:

900kg

Carrying arms:

2 x 3 single arms

Each arm has 3 sucking disc.

Overall dimension:

14800 mm x 3900mm x900mm
