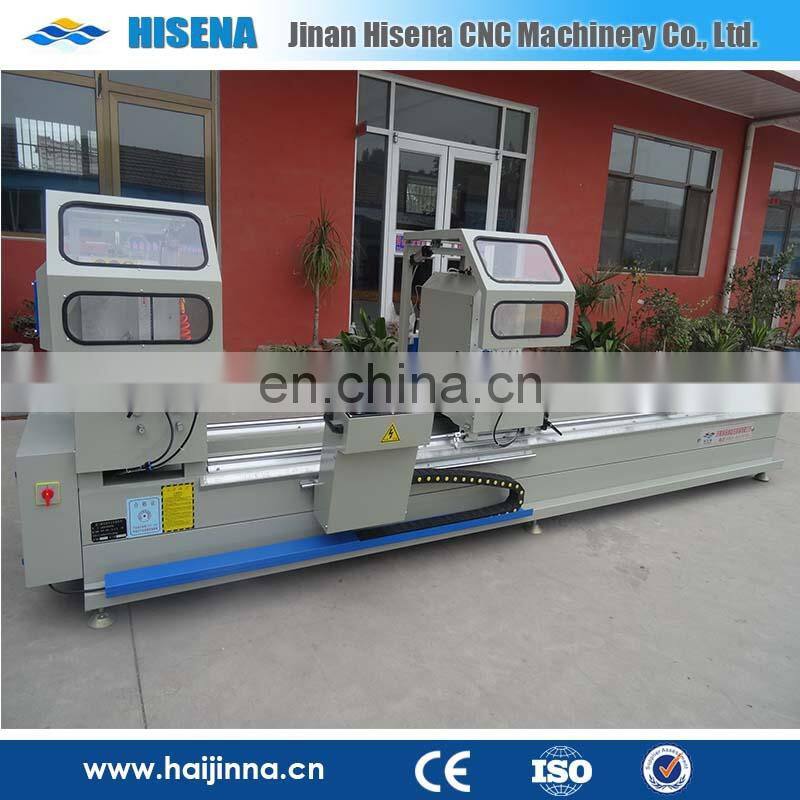

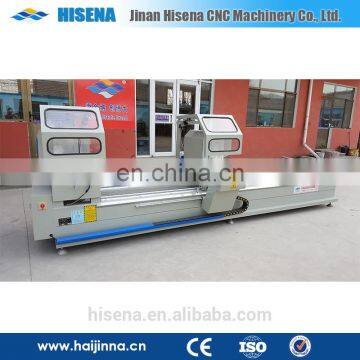

Used For making window frame Double head Mitre Saw for Aluminum window machine LJZ2--450*3700
Specifications
Double head Mitre Saw for Aluminum window machine
1.aluminum mitre saw
2.Used for aluminum profiles cutting.
3.CE.ISO 20000
Double head Mitre Saw for Aluminum window machine, aluminum mitre saw LJZ2-450*3700
Main Features:

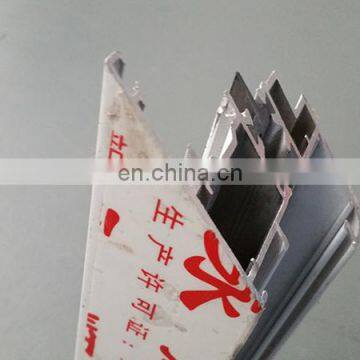

1. Used for not only aluminum profile and curtain wall profile cutting, but also corner connector cutting.
2. Feeding system adopts imported linear guide pair, with high accuracy and long service life.
3. 90°and ± 45° cutting is available.
4. Saw blade rotate smoothly due to high accuracy main spindle.
5. Imported carbide saw blade give accurate processing and high endurance.
6. Imported linear bearing motion pair ensured steady processing accuracy.
7. Uniform speed feeding and smooth motion due to airdraulic damping cylinder.
8. Auto-opening guard shield ensured safety operation.
Main Technique Parameter:
Power supply |
380V 50Hz |
Input power |
3.7kw |
Air pressure |
0.5-0 .8 M pa |
Air consumption |
200L /min |
Main motor rotation speed: |
2800rpm. |
Max/min Cutting length |
3700-580mm |
Saw blade dimension: |
φ450× φ30 |
Cutting angle: |
-45 ° 90 ° 45 ° |
Cutting W x H |
120x160 ( mm ) |
Repeat locating length |
≤0.2mm |
Angle cutting tolerance |
±5′ |
Plane of cutting surface |
≤0.10 |
Cutting profile surface roughness |
Ra12.5um |
Size: (width × high × long) |
4500mm × 1100mm × 1400mm |
Weight: |
1500Kg |
Remarks
Contact Person : Mr Ray Meng Mobile : 0086-18853160312
1. Q : When you can arrange the shipment ?
A : We usually arrange the shipment in 10 days after we got the deposite . If the order is customized , we had to defered in 25 days.
2. Q : What's your plan when the machine failure ?
A : We can send you the accessery by mail for free in the term of service .Or we can send our engineers .
