LJZ2A--450*3700 All Kinds of Aluminum Windows High Efficiency Double Head Mitre Saw Machine
- Any Port
- T/T Credit Card
You May Like
-
Aluminium Doors Window Manufacturing Machine/Double Head Mitre Saw/ LJZ1A--450*3700 for Aluminum Window Machine
-
LJJA--150 Aluminum Inside Corner Connector CNC Cutting Saw Cut Machine
-
Aluminum Window Making Machine LJZZ--150 Corner Connector Automatic Cutting Machine Aluminum Window Machine
-
LJB1A--500*4200 Double Head Mitre Saw 45 Degree Digital Display Aluminum Cutting Machine
-
Aluminium Double Head Windows and Doors Cutting Machine With Corner Cleat Cutting
-
LJZZ--100 Glazed Window Thermal Break Aluminum Corner Cleat Corner Key Cutting Saw
Product Details
| Brand Name | Hisena | Model Number | LJZ2A-450*3700-08 |
Product Description

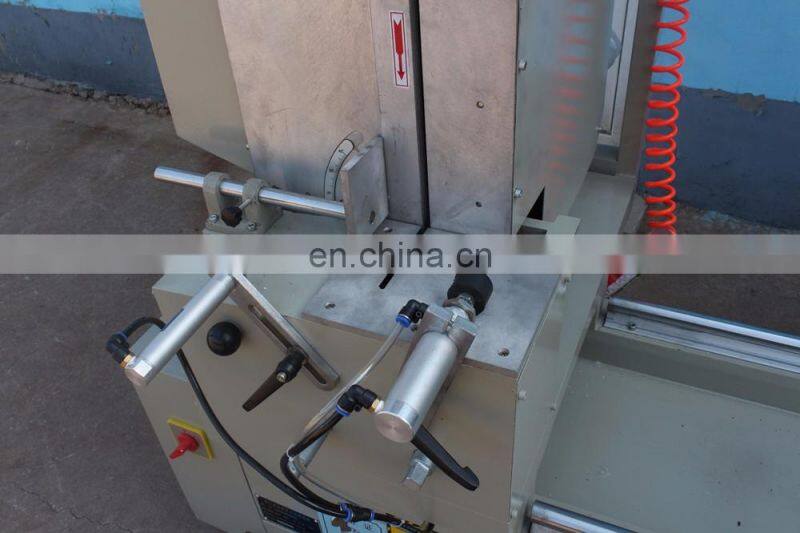

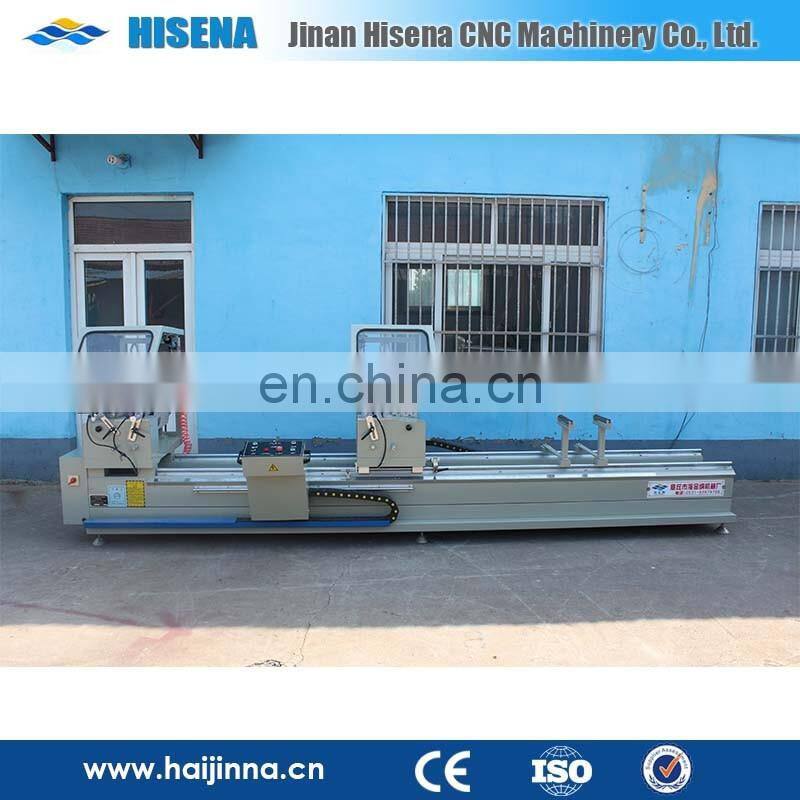

LJZ2A-450X3700 aluminum window and door high efficient double head cutting machine
mitre saw machine
Main Features:
1. Used for aluminum profile and curtain wall profile cutting .
2.Two head can work Simultaneously or Separate .
3.Sawblade feeding system adopts imported linear guide pair, with high accuracy and long service life.
4. 90°and ± 45° cutting is available. Saw blade rotate smoothly due to high accuracy main spindle.
5. Imported carbide saw blade give accurate processing and high endurance.
6.Require length automatic cutting .Outward 45°cutting automatic calculate length .
7.Right head can feed profile automatic .
8. Auto-opening guard shield ensured safety operation.
9. Spraying cooling system, make sure carbide saw blade long service life .
Main Technique Parameter:
Power supply | 380V 50Hz |
Input power | 2×1.5kw |
Air pressure | 0.5-0 .8M pa |
Air consumption | 200L /min |
Motor rotation speed: | 2800rpm. |
Cutting length | 580-3700mm |
Cutting width | Max 120mm |
Cutting height | Max 200mm |
Saw blade dimension: | Φ450mm×Φ30mm×δ4mm Z=100 |
Cutting angle: | -45 ° 90 ° 45 ° |
Repeat locating length | ≤0.2mm |
Angle cutting tolerance | ±5′ |
Plane of cutting surface | ≤0.10 |
Cutting profile surface roughness | Ra12.5um |
Size: (width × high × long) | 4500mm × 1100m × 1400mm |
Weight: | 1000kg |
Remarks
Contact Person : Mr Ray Meng Mobile : 0086-18853160312
We will follow the requirements of customers to arrange the packing and shipping .

We can provide trainings to your workers .
IF the machine failure,we can send you the accessery by mail for free in the term of service or we can send our engineers .

1. Q : When you can arrange the shipment ?
A : We usually arrange the shipment in 10 days after we got the deposite . If the order is customized , we had to defered in 25 days.
2. Q : What's your plan when the machine failure ?
A : We can send you the accessery by mail for free in the term of service .Or we can send our engineers .
HAIJINNA company is very expacted to do business with anyone who needs our products.
If you have any question about our products , contact us .
Contact person : Mr Ray Meng
Cellphone:0086+18853160312
