Used SHACMAN F2000 8x4 Dump Trucks
US$ 25,000 - 40,000
/ Unit
1 Unit(Min. Order)
- Shanghai port
- T/T Credit Card
You May Like
-
Excellent Condition Heavy Duty 371HP 50ton 6X4 Sinotruck HOWO Dump Truck for Construction
-
6 Wheels China 40 Ton Tri-Ring Sitom 6X4 Dump Tipper Truck for Sale
-
12 Wheels Tipper Truck 8X4 High Quality Dump Truck
-
Newindu Mining Use Heavy Duty Dump Truck Tipper
-
Dump Truck Mining Dump Truck for Sale From Stock
-
Mining Dump Truck With Factory Supply Price
Product Details
| Brand Name | SHACMAN | Place of Origin | Shaanxi, China |
Product Description

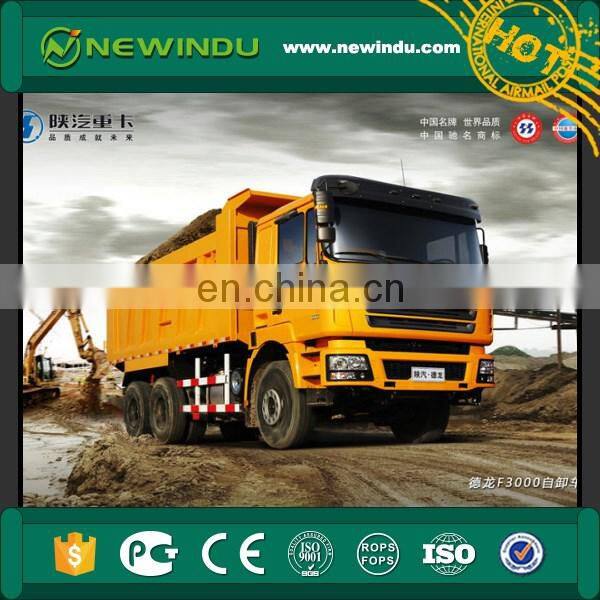

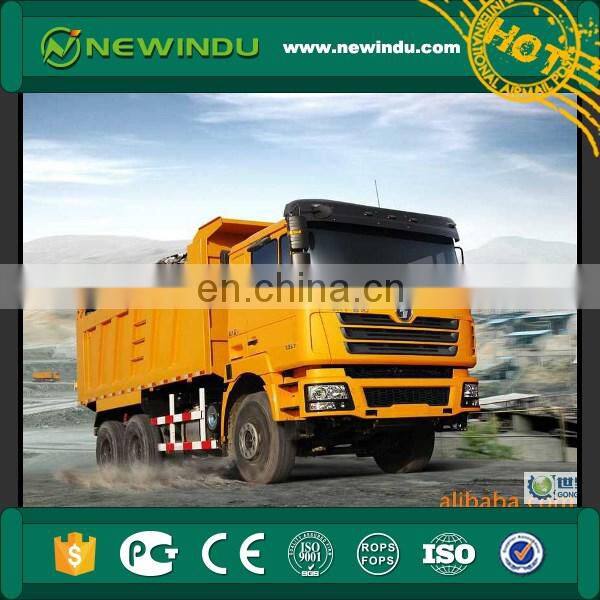

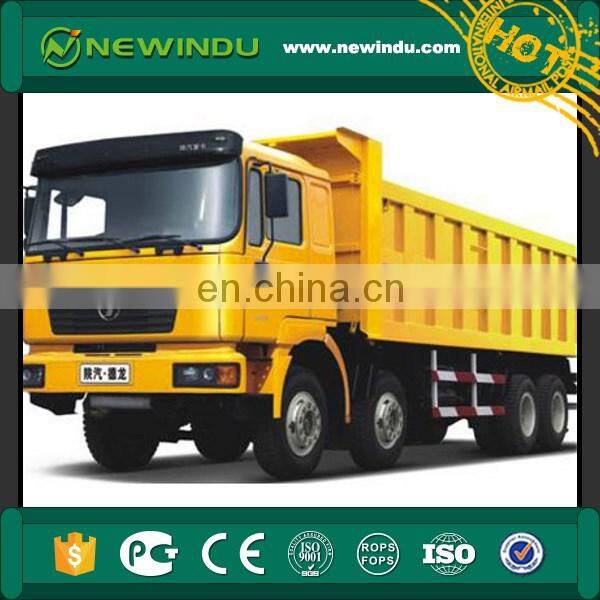

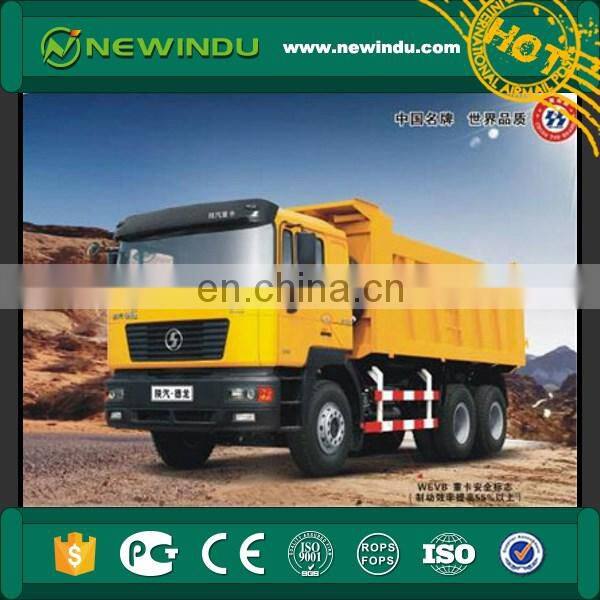

used SHACMAN F2000 8x4 dump trucks
Product Description
| Model | Shacman F2000 Dump Truck | |
| Driving type | 6x4, 4x2, 8x4 | |
| Weight | Complete kerb mass (kg) | 14500 |
| GVW (kg) | 32500 | |
| Dimensions | LxWxH (mm) | 8329x2490x3450 |
| Body size(mm) | 5600x2300x1100,1300,1500 | |
| Front/rear overhang(chassis) | 1525/1650 | |
| Wheel base (mm) | 3800+1350 | |
| Track width (mm) | 2036/1850 | |
| Performance | Max. speed ( km/h) | 74 |
| Min. turning circle (m) | 17 | |
| Min. ground clearance (mm) | 314 | |
| Approach/Departure angle(°) | 22/30 | |
| Max. gradeability (%) | 33 | |
| Transmission | Brand | FAST |
| Model | RT-11509C | |
| Control type | Manual | |
| Gear shift | 9-forward and 1-reverse speeds | |
| Clutch | Type | Single plate, diaphragm spring |
| Diameter (mm) | D-430 | |
| Action | Mechanical type, hydraulic and pneumatic operation | |
| Brakes | Type | Drum |
| Service brake | With dual-circuit compressed air brake | |
| Park brake | Power spring brake acting on rear wheel | |
| Auxiliary brake | WEVB | |
| Optional | ABS | |
| Steering | Type | Integral circuiting ball power steering |
| Optional | ZF8090 | |
| Chassis | Type | Ladder structure with parallel straight |
| 300x8x(8+7) | ||
| Suspension | Front suspension | Longitudinal leaf spring |
| Rear suspension | Inverted leaf spring stabilizator suspension | |
| Tyres | Type(standard) | 11.00-20 |
| Optional | 12.00R20/11.00R20/12.00-20/12R22.5 | |
| Fuel tank | Tank capacity (L) | 380 |
| Material | Metal | |
| Electrics | Type | 24V |
| Starter | 5.58kw (24V) | |
| Generator | 1.54kw (28V55A) | |
| Battery | 2x135Ah | |
| Cab | Type | MAN F2000, Middle Lengthened flat roof |
| Equipemets | Hydraulic suspension cab, hydraulic chair with seatbelts,1 sleeping bed… | |
| Optional | 4 point are suspension, A/C, air suspension driver seat with handle and seatbelts, 2 sleeper bed ,Electric windows, electricity heated…… | |
| Engine | Brand | Weichai |
| Model | WP12.375 | |
| Power (kw/HP) | 276/375 | |
| Max. torque (N.m)/rpm | 1500/1200-1600 | |
| Displacement (L) | 11.596 | |
| Emission standard | Euro II | |
| Axles | Brand | HANDE |
| Front axle | 7500kg | |
| Rear axle | 13000kg,Double reduction driving axle with inter-wheel differential and differential lock | |
| Ratio | 5.73 | |
