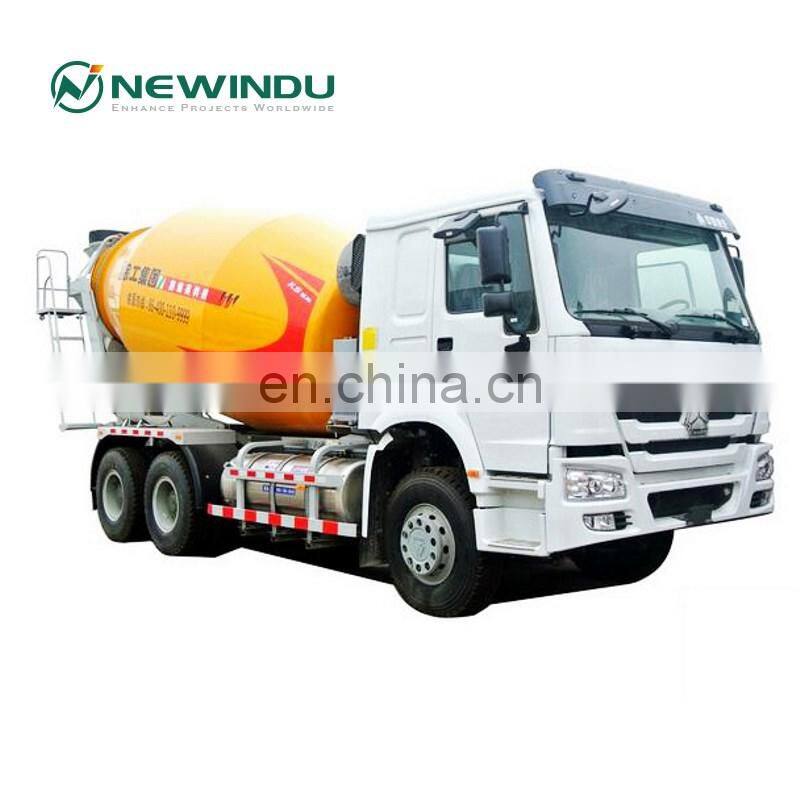

Sinotruc H owo 10 wheels 25ton 10CBM Concrete Cement Mixture Mixing Mixer Truck Price
Cement mixer truck of the shipment to points, there are wet material type, material type and semi-dry material type three mixer truck. It can be shipped by mixing plant (station) production of concrete or mixed according to the ratio of aggregate (sand and gravel), cement and water, during transport, slowly stirring constantly wet material, to prevent the initial setting of concrete during transport and segregation.
|
Weight Parameter
|
Complete Vehicle Kerb Mass(kg) |
12250 |
||
Maximum authorized total mass (kg) |
24870 |
|||
|
Dimension Parameter
|
External Dimensions(mm)
|
Length (mm) |
8145 |
|
Width(mm) |
2496 |
|||
Height(mm) |
3170 |
|||
wheelbase(mm) |
3625+1350 |
|||
Drum Volumetric |
8 cubic |
|||
Drum Thickness(mm) |
6 |
|||
|
Performance Parameter
|
Maximum Speed(km/h) |
75 |
||
Turning diameter(m) |
16 |
|||
|
Recommended Configuration
|
Engine |
Engine Type |
WD615.69 |
|
|
Rated power(kW)/Rev(r/min) |
247/2200 |
||
Transmission |
Manual operation,10 forward & 2reverse with no synchronizer |
|||
Axle |
Front Axle Payload(kg) |
9000 |
||
|
Rear Axle Payload(kg) |
16000 |
||
Fuel Tank(L) |
300 |
|||
Track(mm) |
2022+1830 |
|||
Front overhang/rear overhang(mm) |
1500/2295 |
|||
Tire |
12.00R20 |
|||
