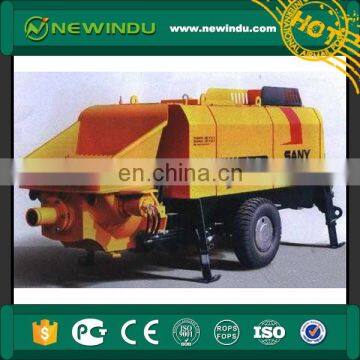

Electric Mobile Trailer Mounted Concrete Delivery Pump for Concrete Construction
- T/T Credit Card
You May Like
-
Hot Sale HBT9018K Diesel Engine Trailer Concrete Pump With CE Certification
-
Newinbdu Hot Selling Trailer Concrete Pump HBT10020K for Sale
-
Factory Supplied HZS40 Concrete Mixing Plant for Sale
-
Construction Machinery Stationary 30 m Hydraulic Concrete Pump
-
Manual Hydraulic Pump 30 m SANY Concrete Pump Price
-
SANY 62 m Pump Price of Portable Lightweight Concrete Pump
Product Details
| Brand Name | Newindu | Place of Origin | Jiangsu, China | |
| Certification | CE ISO9001 | |||
| Warranty | 1 Year | Weight | 3000Kg | |
| Dimension(L*W*H) | 4500*1500*1720mm | Power Type | Diesel | |
| Condition | New |
Product Description
Electric Mobile Trailer Mounted Concrete Delivery Pump for Concrete Construction
1. Powerful machine adopts diesel engine (made in China).
2. Import generator is optional.
3. The high quality hydraulic valves and oil pump use Germen REXROTH products.
4. The valve for change-over from high pressure to lower pressure is designed to be easily controlled, which can adjust the condition of the pump easily in accordance with the requirement of job site. Dismantle the tube is not necessary so that it can avoid the pollution.
5. Advanced hydraulic system which change direction hydraulically can run without electrical part.
6. Concrete piston can run back to washing tank, which can easily change the piston and be convenient for maintenance.
7. Tungsten steel glasses shaped plate and cutting ring guarantee long using life.
8. Hydraulic outriggers make easily positioning.
9. Pump can be easily washed.
Maximum outlet pressure | 13Mpa |
Production capacity | 5-5.5m3/h |
Bore diameter stroke | 140*1000 |
Max delivery distance(horizontal / vertical) | ≤200m |
Suitable material ratio | Cement/ Gravel =1:3-5 |
Applicable materials water-cement ratio | ≤0.4-0.45 |
Maximum aggregate size | ≤20mm ≤30mm |
Inner diameter of delivery hose | 51mm |
Working pressure | 0.2-0.4Mpa |
Air consumption | 7-8m3/min |
Motor power | 45KW |
Voltage | 380V or 660V |
Maximum theoretical | Level 200m |
Weight | 2200kg |
Transport distance | Vertical 160-170m |
Dimension (L*W*H) | 190*67*12mm |
