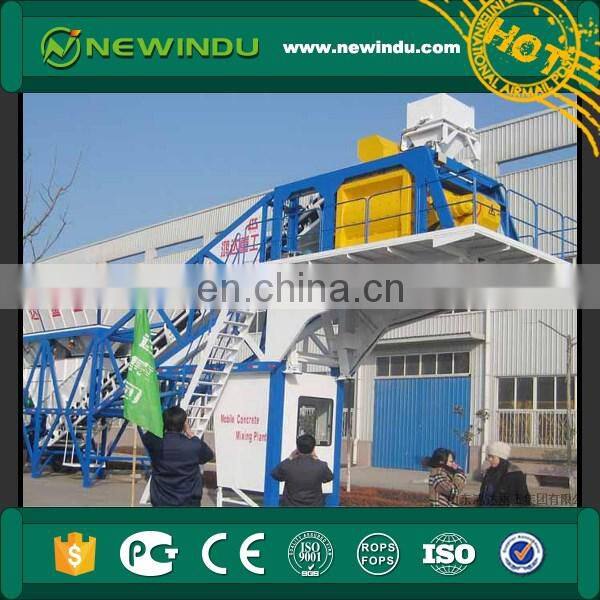

Mobile 40m3/h Small Concrete Batching Plant for Sale
mobile 40m3/h small concrete batching plant for sale
| Output capacity | 40m3/h |
Discharge height |
3.8m |
||
Main mixer feeding-output |
1200L-0.75m3 |
Power |
380v/50Hz |
||
Automatic Electric Control System |
PLC+ Computer |
Total capacity |
60Kw (excluding optional items) |
||
Hopper volume |
4x5.5m3 or 2x11m3 |
Total weight |
≈ 23000kg (excluding optional items) |
||
|
Measurement range |
Aggregate (superimposed measurement) |
2500Kg±2% |
Outline |
In working |
17.3mX3.4mX7.41m |
powder |
600Kg±1% |
in transporting |
17mX2.4mX4.34m |
||
water |
300Kg±1% |
Trailer speed |
≤40Km/h |
||
Additive |
20Kg±1% |
Optional items |
Silo, Cement Screw |
||
Aggregate size |
≤60mm |
||||
YHZS40: It need 3 sets of 40HQ Containers to ship(without the Silos& Cement Screw Conveyors) | |||||

Send Inquiry to This Supplier
