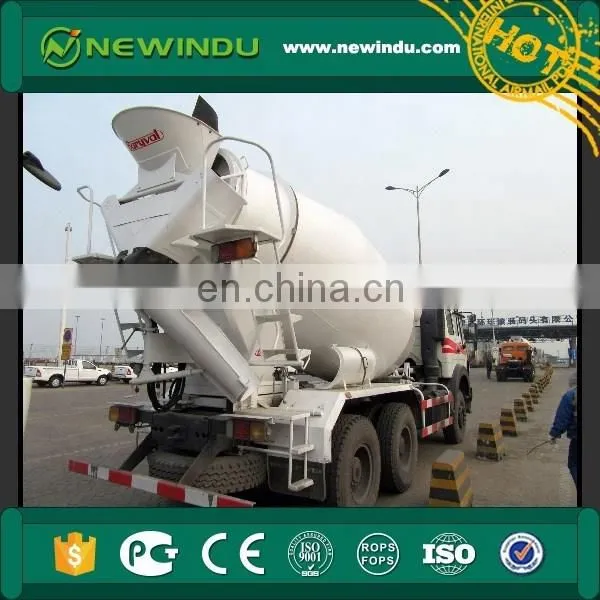

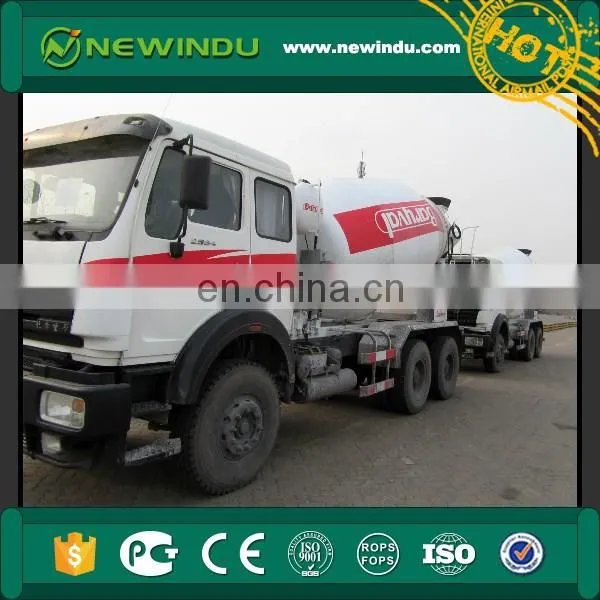

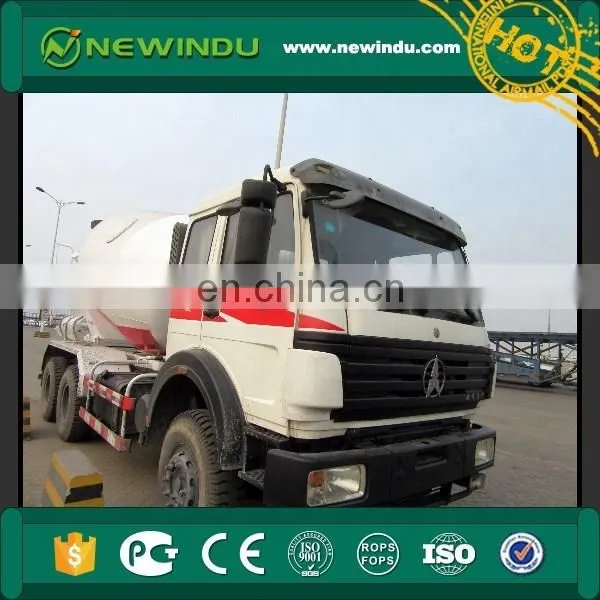

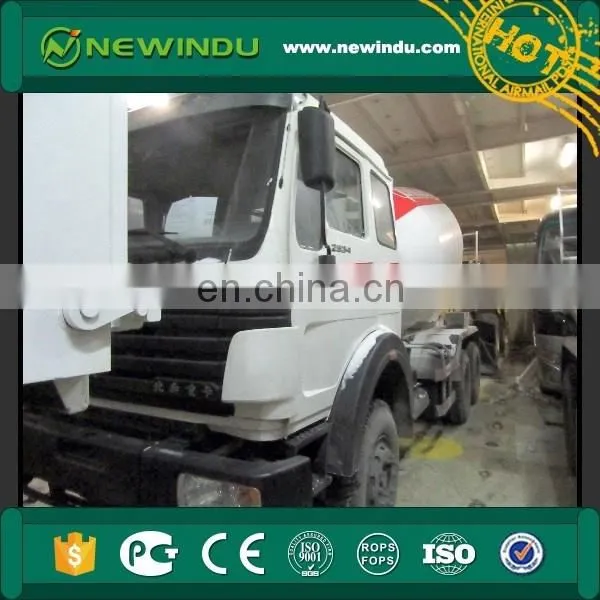

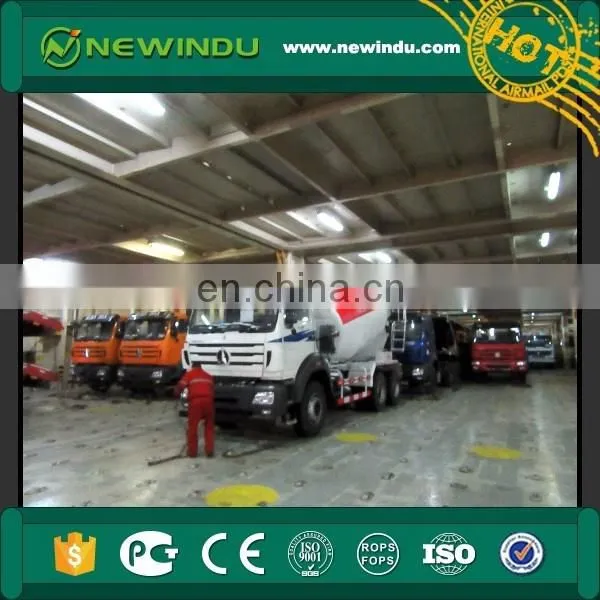

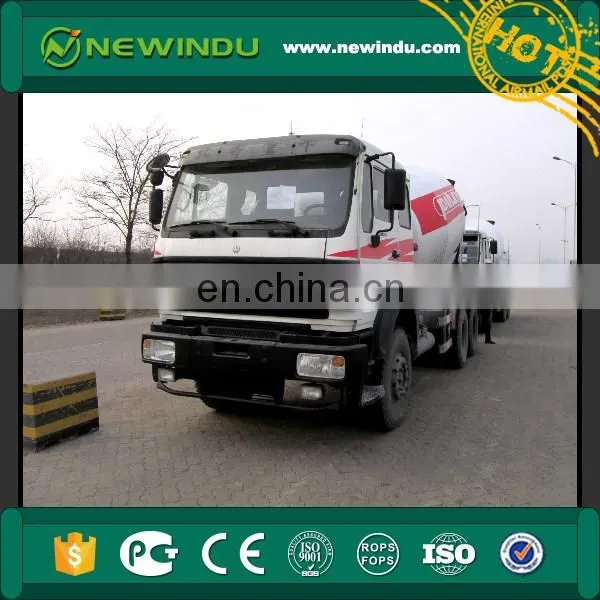

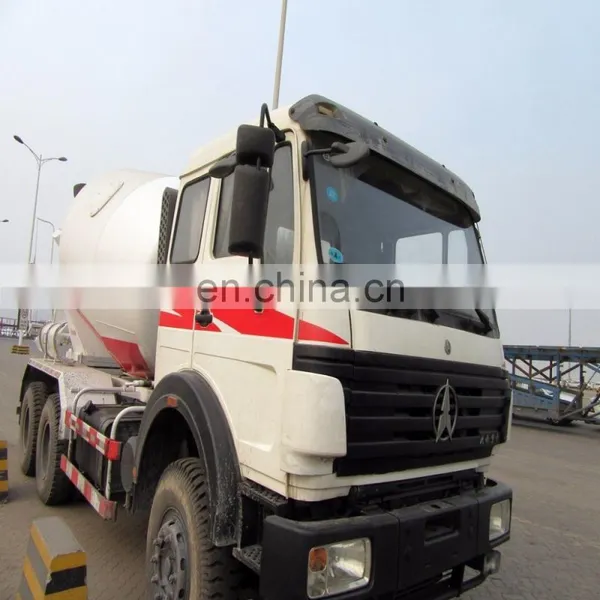

China Hot Sale 16m3 BEIBEN 8X4 Concrete Mixer Truck Price
US$ 35,000 - 50,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
BEIBEN
Place of Origin:
Inner Mongolia, China
Certification:
ISO CE
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SINOTRUCK HOWO 8x4 Concrete Mixer Truck PriceUS$ 35,000 - 50,000MOQ: 1 Unit -
Cost Effective HOWO 8x4 10m3 Concrete Mixer Truck for SaleUS$ 35,000 - 50,000MOQ: 1 Unit
-
8m3 Concrete Mixer Truck SANY 6x4 With Improved Braking TechnologyUS$ 35,000 - 50,000MOQ: 1 Unit
-
8m3 Sany SY308C-8(R) New 6x4 Concrete Mixer TruckUS$ 35,000 - 50,000MOQ: 1 Unit
-
9m3 SANY Small 6x4 Concrete Mixer Truck SaleUS$ 35,000 - 50,000MOQ: 1 Unit
Brand Name
BEIBEN
Place of Origin
Inner Mongolia, China
Certification
ISO CE
Warranty
1 Year
Weight
16825kg
Dimension(L*W*H)
10950*2500*3990mm
Condition
New
Power(W)
250KW
China hot sale 16m3 BEIBEN 8X4 Concrete mixer truck price
Product Description
| 3138BY /8×4/1500+3850+1450/Long-Flat Roof Cab | ||||||
| Dimension | 10950*2500*3990mm | |||||
| Approaching angle/Departure angle | 16/15° | |||||
| Overhang(front/rear) | 1515/2685mm | |||||
| Wheel base | 1500+3850+1450mm | |||||
| Max speed | 90km/h | |||||
| Curb weight | 16825kg | |||||
| Loading capacity | 14045kg | |||||
| Slope climbing capability | Max.40% | |||||
| Engine | Model | WP10.375,water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection | ||||
| Displacement | 9.726L/Diesel | |||||
| Stroke | 126/130mm | |||||
| Max. power | 276/2200 (kw/rpm) | |||||
| Max.torque | 1460/1200-1600(Nm/rpm) | |||||
| Emission stantard | EuroⅢ | |||||
| Fuel tanker capacity | 300L | |||||
| Clutch | 430, Single dry frictional disc,Hydraulic boosting | |||||
| Gearbox | 9T-180mechanism,9 forward gears,1 reverse gear, manual operated, with synchronizer | |||||
| Gear ratio of gear box | 12.82/7.93/6.00/4.43/3.43/2.31/1.75/1.29/1.00 R: 11.21 | |||||
| Suspension system | Front | Non-free standing leaf spring,telescopic shock absorber with stablizer bar suspension , 10pcs | ||||
| Rear | Non-free standing stablization spring, balance suspension system, 13pcs | |||||
| Brake system | Service brake | Brake gap can be adjusted automatically, double circulation air brake system | ||||
| Assistant brake | Engine exhaust brake | |||||
| Park brake | Potential springs pressing on middle and rear wheels | |||||
| Steering system | TAS85,whole circulation in ball, hydraulic booster | |||||
| Frame | Fish belly shape, variable width, variable sections | |||||
| Front axle ( Technology) | Double-shoe pneumatic brake, non-driving steering axle | |||||
| Middle and Rear axle (Technology) | Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle | |||||
| Tyre | 12.00R20 Radial | |||||
| Electrical system | Battery | 2X12V/135Ah | ||||
| Generator | 28V-35A | |||||
| Starter | 5.4Kw/24V | |||||
| Cabin | V3 Long-Flat roof cabin with single sleeper Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; High back seat for driver;Electric lifting window ; With inner A/C |
|||||
| Main technical parameters of concrete mixer | ||||||
| Drum performance parameter | Geometric Volume m3 | 26.1 m3 | ||||
| Effective Volume m3 | 16 m3 | |||||
| Filling Ratio % | 61.30% | |||||
| Gradient of the Drum ° | 9° | |||||
| Filling speed m3/min | ≥3 | |||||
| Discharging Speed m3/min | ≥2 | |||||
| Surplus Ration % | <1% | |||||
| Range of Slump mm | 20~300 | |||||
| Hydraulic System | Pump | Eaton 64 (ACA642337) | ||||
| Motor | Eaton 64 (HHD6423321) | |||||
| Gear Box | PMB7.8SP | |||||
| Water supply system | Volume of water tank | 400L | ||||
| Water supply type | Air pressure Type | |||||
