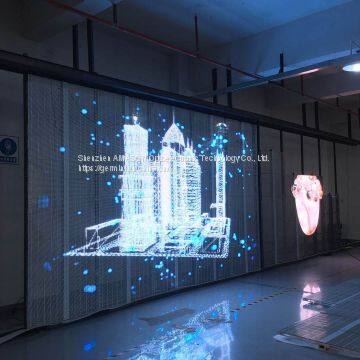

LED transparent display

   1, Single Cabinet

1) Pixel: 3.91-7.82mm

2）Density: 32768dot/m²

3)  LED Composition: 1R1G1B

4)  Color: Pure Red + Pure Green + Pure Blue

2, Whole Screen

4, Best Viewing Distance: 7-250m

5, Best Viewing Angle: horizontal:120. Vertical: 120

6, Environment Temperature: Storage:-40℃ ～+85℃，Working:  -40℃ ～ +60℃

7 Humidity: 10%～95%

8, Screen Depth: t8cm

3, Power

1）Working Voltage: 100-220v

2）Average Consumption: 200W/m²

3）Max Consumption: ≤600W/m²

4, Control System

1） Control Computer: Lenovo

2）Operation System: WIN 98/ 2000/ NT/XP

3）Control Way: synchronization

4）Display Card: DVI display card

Ø

5, Main Technology Specification

1)  Driver :ICN2038

2）Driver Way: Static, 1/8scan

4）Refresh Rate: ≥1920HZ

5) Gray/Color: red/green/blue65536 levels, 16.7M colors

6）Brightness: ≥1500cd/m²

7) Brightness Adjustment way: software adjust 100 levels.

8) Screen Signal: PAL/NTSC

9) Screen input/output way: 8 ways for input/ 8 ways for output

10) control system: PCTV+ DVI Display Card + Fullcolor Control System

11)  Average trouble-free time: ≥10000 hours

12) Lifetime: 10,0000 hours

1) Flatness: every pixels ≤1mm

             Every modules ≤1mm

14) Uniformity: the brightness is uniformity

17) PC Display Mode: 800×600，1024×768，1280×960 etc.

a. Communication Distance: ≤120m (cat5)

  Multi-mode Fiber 500m, Single-mode Fiber 20KM

6.Software

LED Studio

Humidity Protection, Dust Protection, Rust Protection, Static-Protection, etc.
