US$ 12,000 - 14,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
LONKING
Place of Origin:
Shanghai, China
Model Number:
FD35
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10Ton LG100DT Diesel Cheap Price Small Forklifts for SaleUS$ 20,000 - 21,000MOQ: 1 Unit -
Factory Price 10t Electric Pallet Truck Electric Forklift for SaleUS$ 20,000 - 21,000MOQ: 1 Unit
-
China Low Price 10 Ton Forklift LG100DTUS$ 20,000 - 21,000MOQ: 1 Unit
-
7Ton Electric Manual Hand Stacker Hydraulic ForkliftUS$ 12,000 - 13,000MOQ: 1 Unit
-
Lift Cargo Equipment Manual Hand Forklift for Cargo LoadingUS$ 12,000 - 13,000MOQ: 1 Unit
Brand Name
LONKING
Place of Origin
Shanghai, China
Model Number
FD35
Certification
ISO
Type
Manual Pallet Truck
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Rated Loading Capacity
3500kg
Overall Dimensions
3775*1225*2100mm
Fork Width
125mm
Fork Length
1070mm
Min. Lifting Height
3000mm
Max. Lifting Height
6000mm
Power Souce
Diesel Engine
3.5 Ton Manual Hydraulic Forklift from Lonking Brand
Please Contact
Aring Zhou
Email: aring at
Wechat/Whatsapp/Mobile: +86 15855426352
Skype: zyy1520724641 at
Web: /
Product Description
1. Advance Ergonomic Design
2. High Reliability&Supper Stable
3. Sufficient Capacity Tank
4. Excellent Security
5. Wide View Mast
6. Solid Overhead Guard
7. Comfortable Seat
8. Powerful Engine
Main Parameters
| Model | FD35 | |
| Rated Capacity | 3500kg | |
| Load Centre | 500mm | |
| Lift Height | 3000mm | |
| Fork Size | 1070*125*45mm | |
| Mast Tilt Angle(F/R) | 6°/12° | |
| Overhang(wheel center to fork force) | Front | 478mm |
| Rear | 580mm | |
| Turning Radius(outside) | 2520mm | |
| Min Intersecting Aisle | 4215mm | |
| Speed(load/unload) | Max.Driving Speed | 20/20km/h |
| Max.Lifting Speed | 420/380km/h | |
| Max Gradeability | 20% | |
| Service Weight | 4750kg | |
| Tire | Front | 28×9-15-14PR |
| Rear | 6.5-10-10PR | |
| Wheel Base | 1700mm | |
| Ground Clearance(Bottom of Mast) | 132mm | |
| Engine | Model | C490BPG |
| Manufacture | XINCHAI | |
| Rated Output | 40kw | |
| Rated Torque | 160/1800-1900 | |
| No. of Cylinder | 4 | |
| Displacement | 2.67 cm3 | |
| Fuel Tank Capacity | 60 ltr | |

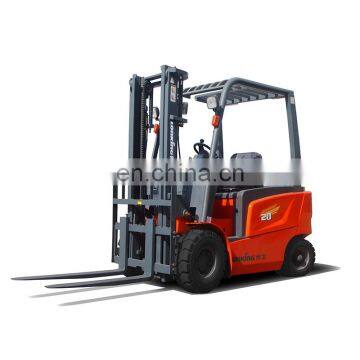

Product Image
