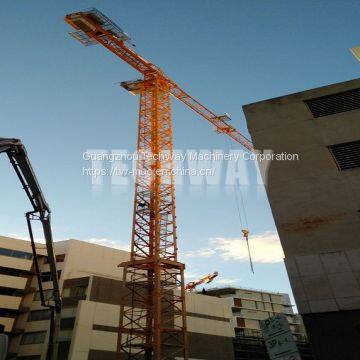

Flat Top Tower Crane
Features1:
Topless or Flat Top Cranes are typified by the lack of a “tip” or the traditional “crane head.” This configuration allows an extensive maneuvering with an overlap of crane arms, flexibility in planning and positioning as well as optimized operation in a site with many cranes. In fact, the Topless Tower Crane allows a minimal height difference of approximately 5 meters between the crane’s hook and its top and shortening its arms to 20 meters. When working with cranes in overlap in a working environment, this is a crucial advantage, allowing concentration of as many cranes as possible in the required area, maximizing the efficiency and reaching the optimal product.
The advantages of our 8T Topless Tower Crane are following:
Nearly 20 years experiences in manufacturing industries. We pass ISO9001 Certification, / Manufacture License of special equipment by AQSIQ, / CE certificate for the motors adopted on our construction equipments etc.National-level engineering and service team along with local agent providing worldwide after-sales service. Different types of mast section and tie-in for worldwide famous tower crane brands, Ball blasting and high quality of epoxy painting production line, make sure 100% compatible with the original products. Free easy wearing parts Plus One Year Warranty.
Flat Top Tower Crane, its biggest characteristic is it has no tower top, which strengthens the structural strength of big arm and balance arm. We can supply 5T, 6T, 8T, 10 T Topless Tower Crane.
Features2:
MODEL |
TCP5516 |
MAX LOAD |
8T |
TIP LOAD |
1.6T |
JIB LENGTH |
55M |
FREE STANDING HEIGHT |
44M |
MAST SECTION |
1.6X1.6X3/2X2X3M |
