Introduction of the UHMW-PE wear strips :
UHMW-PE wear strip is an amazing thermoplastic engineering plastic . It combines the superior performance of all plastic .
Features of the UHMW-PE wear strips :
1. Best shock resistance even in low temperature
2. Low frictional factor, and well sliding bearing material
3. Lubricity (no caking, in adhesion)
4. Best chemical corrosion resistance and stress craze resistance
5. Excellent machinery process ability
6. Lowest water absorption
7. perfect electric insulativity and anti-static behavior
8. Nice high energy radioactive resistance
9. Abrasive resistance which always have in thermoelectricity polymer
10. Density is lower than other thermoplastic
Data of the UHMW-PE wear strip :
Density |
0.93-0.96 |
g/cm3 |
Average molecular weight |
3 million -10 million |
g/mol |
Tensile strength (23°C in air ) |
22 |
Mpa |
Breaking strength |
42 |
Mpa |
Tensile strain at break |
600 |
% |
impact strength (notched) |
No break |
Mj/mm2 |
Ball indentation hardness |
42 |
N/mm2 |
Shore hardness |
65-70 |
-- |
Abrasion |
70-80,steel=100 |
% |
Static friction coefficient |
≤0.16 |
-- |
Kinetic friction coefficient |
≤0.10 |
-- |
Water absorption |
NIL |
-- |
Elongation at break at 23°C |
≥300 |
% |
Temperature resistance |
From -269 to 85 |
°C |
Melt temperature |
130-140 |
°C |
Advantages of the UHMW-PE wear strips :
1. Best shock resistance even in low temperature.
2. Low frictional factor, and well sliding bearing material
3. Lubricity( no caking, in adhesion)
4. Best chemical corrosion resistance and stress craze resistance
5. Excellent machinery process ability
6. Lowest water absorption(
7. Paragon electric insulativity and antistatic behavior
8. Nice high energy radioactive resistance
9. Abrasive resistance which always have in thermoelectricity polymer.
10. Density is lower than other thermoplastics (
11. Long using temperature range: -60°C--85°C
Applications areas of the UHMW-PE wear strips :
1. food processing
2. food packaging
3. filling machinery
4. transport equipment
5. mechanical parts
6. electronics industry
7. robot industry
8. medical instrument
9. glass machinery
10. aircraft accessories
11. ship manufacturing

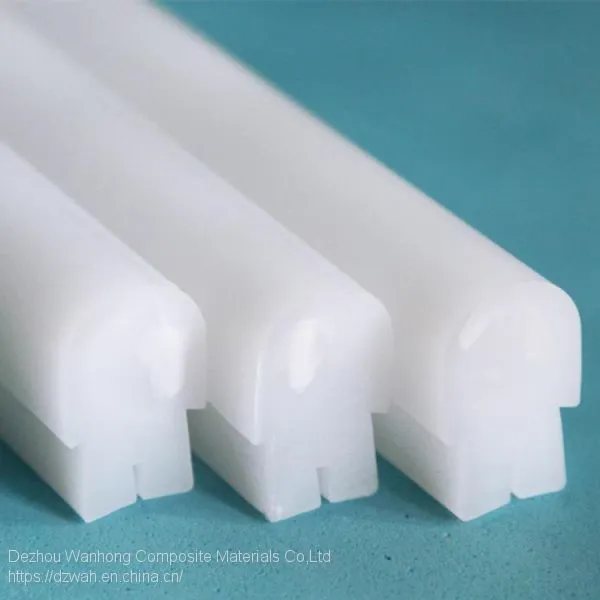

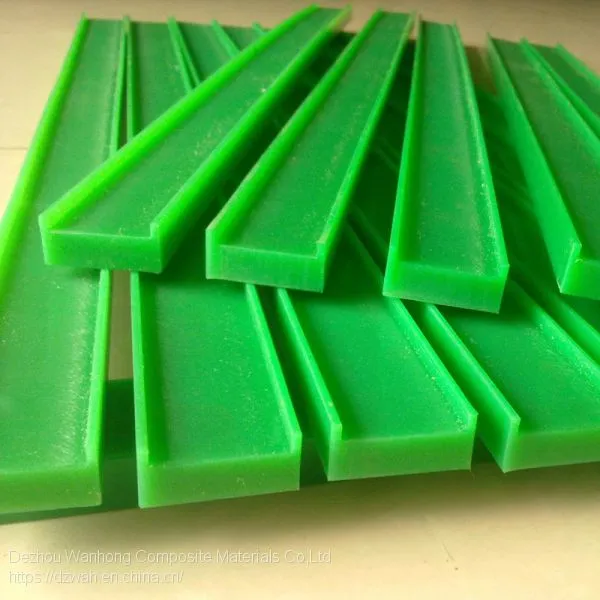

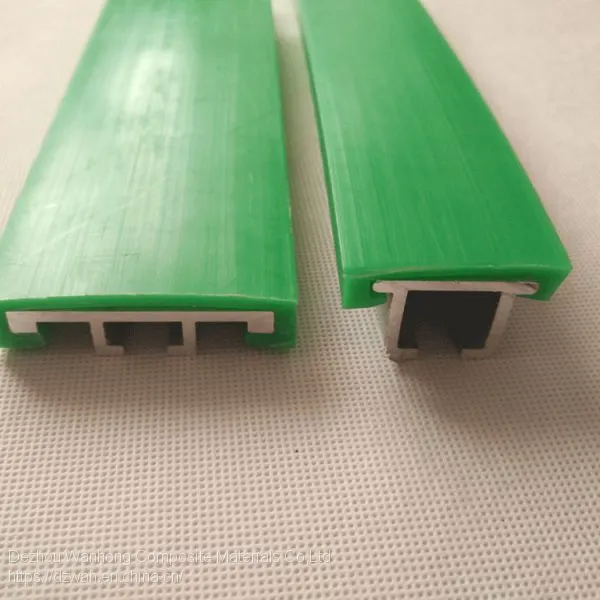

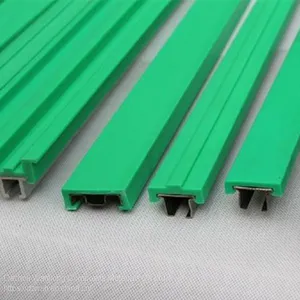

pictures shows of the UHMW-PE wear strips :
