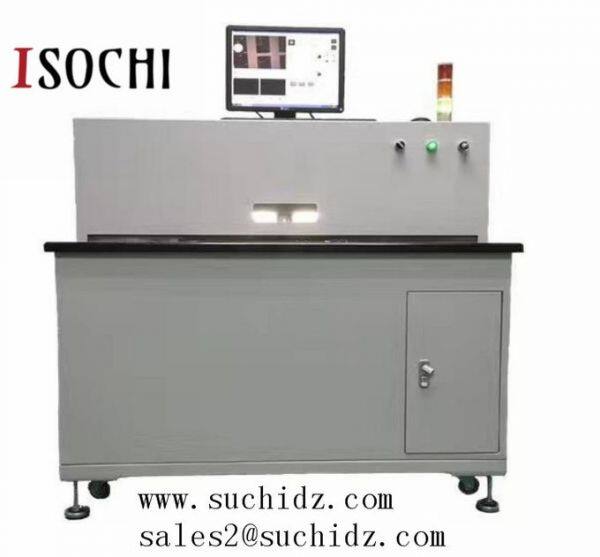

X-Ray Inspection Machine for Printed Circuits Board Lamination and Drilling
1.1 Production Function:
advance, to avoid batch quality problems.
1.2 Workind Condition:
1.3 Product Data:
| Light Pipe Type | Closing pipe |
| Maximum tube voltage | 50kV |
| Maximum tube current | 1.0mA |
| Focus size | 0.1 *0.1mm |
| Detector | High - resolution X - ray CCD camera |
| Focus size resolution | 20lp/mm |
| Windows | Φ25mm |
| Magnification | 10-15-20 times |
| Monitoring Area | 1060 mm *800mm |
| Machine Body Size | H1600 mm *W700 mm *L1200mm |
| Weight | 200kg |
| Power supply | power supply |
| Radiation dose | ＜1μSv/h |
Learn more to click the video:
/watch?v=OtbD2qkKz88
Our Company:
We is a combo of manufacturing and exporting.
What we offer:
1.PCB CNC drilling machine and routing machine
2.Parts and accessories for PCB machine(collet/chuck,spindle,air cylinder,sensor,tool change,etc.)
3.Manufacturing and processing for automobile molds and parts.
4..Custom-made is available
5.CNC parts
FAQ:
Q：Which resolution and voltage value have a greater impact on clarity
A：The voltage level determines the penetration ability.
In general, the higher the voltage, the stronger the ability to penetrate objects.
Q：How does our machine achieve radiation protection?
A：The sheet metal of our machine is made of steel with 3mm lead plate (80KV), which is welded seamlessly. The key parts of the machine are protected by lead.
Q：Our equipment life and stability are compared with Softex of Japan , Haoshuo of Taiwan, accuracy and advantages and disadvantages?
A：Our light pipe warranty time is 5000 hours (the actual use for the customer is 3.5-6 years), which is a long time in the industry.
