Supply High Quality Trapezoidal Screw Micro Low Cost Lift Linear Actuator For Automation Equipment

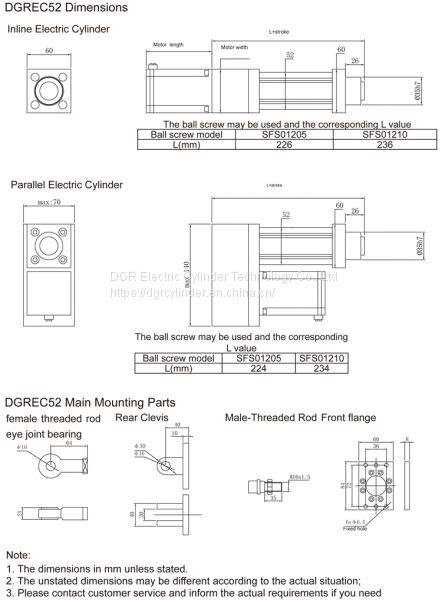

DGR-EC-52 Supply High Quality  Linear Actuator Model designations:

DGR-EC-52 Supply High Quality  Linear Actuator Model Code:

Note:

1. If you need to know the ball screw life, please contact customer service for detailed consultation;

2. The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used.

3. If the Max. stroke exceeds 500mm, it is recommended to add a guiding device;

Note: If you require beyond the specification chart above, please contact us directly, we can able to customize according to customers’ requirements on the load (up to 20 ton), speed(up to 2000mm/s) and stroke (up to 2800mm).

DGR-EC-52 Lift Linear Actuator For Automation Equipment Motor Selection List

Note:

1.DGR electric cylinder servo motor brands include Panasonic, Mitsubishi, Yaskawa, Delta, Syntron, Motec, and Tuoda;

2. DGR electric cylinder stepper motor brands include Japan Samsr, Leadshine, MOONS', etc;

3. The DGR electric cylinder gear box brands include Nidec-Shimpo, Taiwan KunTai, Taiwan Li Ming, and Shanghai Jinmo;

4. The cylinder can be equiped with a motor or gear box, and the motor brands and gear box brands can be designated by the customers, please kindly contact our sales for more detailed information;

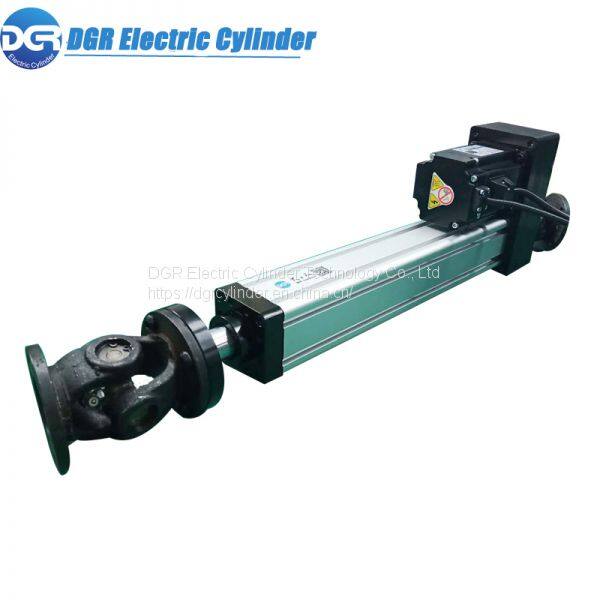

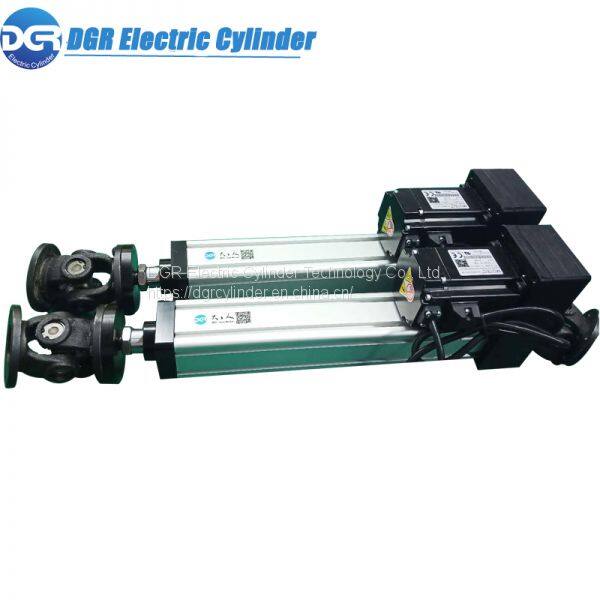

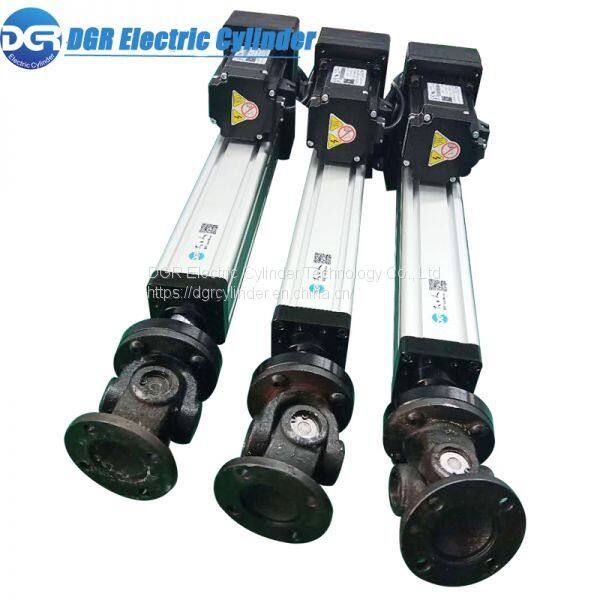

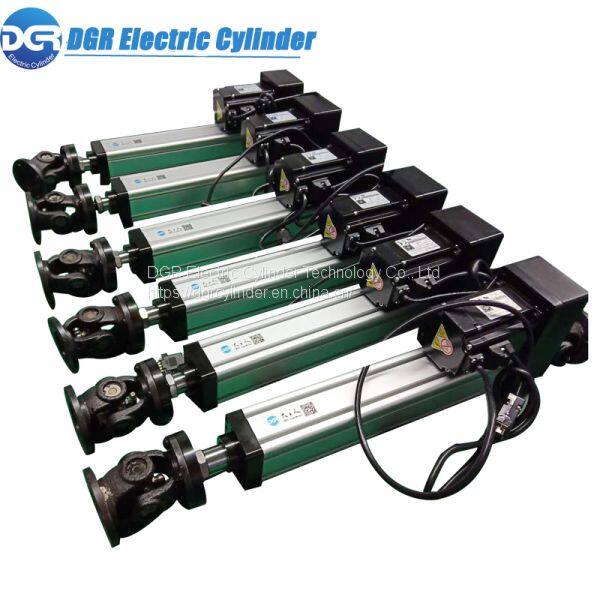

Linear Servo Electric Actuator Products Show

Features Of DGR-EC-52 Lift Linear Actuator For Automation Equipment

High Accuracy

High precision, Repeatability as good as ±0.01mm

High Reliability

Self-locking Ball screw for safe horizontal and vertical applications

Long Life

Run over 100,000km

Wide Thrust Range

Select famous branded roller ball screws, ball screws and lead screws which are made of high-quality materials. (Double the theoretical rated push-pull force).

Careful Material Selection

1. Made of aluminum alloy as the cylinder material, simple and light, beautiful appearance

2. Key components are made of high quality materials and require vacuum heat treatment or surface treatment (including: coating, azotizing, oxidation)

3. Use brand bearings and gears to achieve the best mechanical performance in mechanical structure

4. Use high quality grease to minimize friction, which the drive efficiency can reach up to 90%.

Refined Design and Processing

1. The connection between the screw nut and the piston rod is rigid

2. Snap fastener will be required to locate the part in its fixed position to avoid assembly errors that affect mechanical properties.

3. All screw threads are coated with screw locking adhesive after commissioning to ensure the equipment is stable and trouble-free.

4. Product default with anti-rotation mechanism

5. Professional machining processing equipment minimizes the cost.

Duty Cycle

Use ball screws for frequent operation (greater than 50% or continuous operation)

Complete Testing

Professional factory inspection: including appearance, mechanical properties, stability, noise decibels, etc.

Excellent Service

1. Each equipment is backed by a lifelong tracking service to ensure it can be used normally over its life cycle. (including: handling product failure, providing spare parts and technical information)

2.DGR Electric cylinder can be custom engineered for customer’s particular application.

3.5 years’ experience in electric cylinder production.

4.All customer requirements are response within 12 hours

Wide Selection of Motors

1. Can choose a variety of AC servo motors or stepper motors: such as Delta, Mitsubishi, Panasonic, Yaskawa and other brands

2. Motor comes with brake to ensure secure operation.

Applications Of DGR electric cylinder

	Entertainment  Six degrees of freedom motion platform platform widely used in a variety of analog simulation, dynamic entertainment, robot arms and joints, dynamic seats.
VR Simulations Multi-degree of freedom platforms can be applied to virtual reality motion seats, such as: VR gaming, racing simulator
	Automobile industry Electric cylinder servo press, also known as precision servo press, its working principle is that servo motor drives high-precision ball screw for precision pressure assembly work, can be realized in the pressure assembly operation Closed-loop control of the entire process of press-fitting force and press-in depth enables precise press-fitting of online quality management.Widely used in: Automotive industry: Press-fitting of engine components (cylinder heads, liners, oil seals, etc.), press-fitting of steering gear assemblies (gears, pins, etc.), press-fitting of driveshaft assemblies, press-fitting of gearbox assemblies, brake disc assemblies Press-fitting, etc.;
3D Robotic Billboard The motor controls the motion of each unit in the 3D robotic billboard, and constructs various static and dynamic patterns through matrix elevation changes to simulate three-dimensional topography, text patterns, wave motion, and the like. The 3D robotic billboard can also be combined with projection and digital image to realize the multimedia and digitization of the matrix, making it more ornamental and dynamic.
	Automation Industry The electric cylinders are widely used in the automation industry, such as automation production line, steel continuous casting, material handling, injection molding machine, valve control, precision machine tools, pharmaceutical machinery, precision machining, mechanical lifting platform, food industry, etc
Solar Tracking Systems The solar tracking system maximizes the solar system's electricity production by moving the solar panels by electric cylinders to follow the sun throughout the day, which optimizes the angle at which your panels receive solar radiation. The electric cylinder includes: motor (DC brushless motor, stepper motor, servo motor Etc.), worm gears, push rod, sensor systems, etc.

Brand Introduction

Shenzhen DGR Electric Cylinder Technology Co., Ltd. is a high-tech innovative private enterprise specialized in designing and manufacturing of linear motion products, including servo motor electric cylinders, stepper motor electric cylinders.

Since January 2014, Shenzhen DGR Electric Cylinder Technology Co., Ltd has

introduced advanced technology and hired senior mechanical motion engineers for

researching and developing linear motion system, the electric cylinder developed

by the company featured high positioning accuracy, low noise and long life. It has

received compliments from many famous enterprises worldwide.
