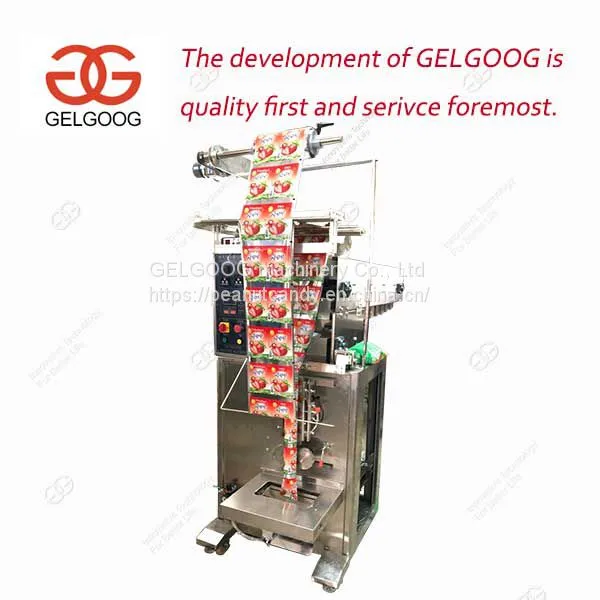

1. Product Description:
This Vertical Granule Packing Machine is very popular in China. It has a stainless steel material so it can be used in a long time with doubtly competitive. Suitable to pack non-sticky, bulk or granule medicines, foodstuff, seeds, granulated juice, sugar, coffee, salt, melon, rice, oatmeal, peanuts, looses tea leaf, fragile food, tea, desiccant, snacks, chips, popcorn and etc.
2. Features:
1, Product packaging, printing date is completed once.
2, Optimized structural design, disassembly, cleaning is more convenient.
3, Horizontal and vertical sealing temperature independent control, better adapt to various packaging materials.
4, According to the material conversion opening and closing mode metering device.
3. Working Principle:
Packaging Execution System:
The package execution system of this machine consists of a paper feeding mechanism, a elephant nose former, a paper feed roller, a heat sealer and a cutter. The wrapping paper is pulled from the reel through the paper-feeding roller, and the packaging and forming device is made into a paper bag. A pair of paper-pulling rollers on the lower part of the front side of the machine pulls the bag-tube down a long distance, and the heat sealer longitudinally and laterally seals the bag. The material is then immediately loaded into the paper bag. When the heat sealer is again heat sealed, a heat seal package is completed. The cutter cuts the paper bag from the middle of the sealing portion. The heat sealer and the cutter are driven synchronously by the same transmission mechanism.
4. Product Parameters:
| Model | GG-320 | GG-350 | GG-480 |
| Voltage power | 220v/1.8kw | 220v/1.8KW | 220v/1.8KW |
| Measuring range | 10-120g | 10-120g | 200-1000g |
| Film width range | 60-280 | 60-300 | 60-420 |
| Packing size | L:40-160 w:20-140 | L:40-280 w:20-140 | L:40-300 w:20-200mm |
| Machine size | 820*980*1680 | 820*980*1680 | 820*980*1980 |
| Machine weight | 480kg | 380kg | 450kg |
| Film thickness | 0.03mm-0.07mm | 0.04mm-0.08mm | 0.04mm-0.08mm |
