2D Bar Code Bluetooth Wireless Scanner

Name: 2D Bar Code Bluetooth Wireless Scanner
Brand: Joinsmart
SKU: 160744647
Availability: InStock

US$ 1 - 38 MOQ: 1 Piece

Key Specifications

Brand Name:

Joinsmart

Place of Origin:

China

Model Number:

KC-2402

Shenzhen Joinsmart IOT Co,.Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen / Hongkong

Delivery Detail:

5 days

Brand Name Joinsmart

Place of Origin China

Model Number KC-2402

Type Barcode Scanner

Interface Type COM, USB

Products Status Stock

Colour Depth 32 Bit

Max Paper Size A4

Scan Speed 280 times / sec

Optical Resolution ≥ 5mil

Scan Element Type CMOS

Performance Parameter
Wireless Transmission Distance ( Without Barrier )		≤ 10 Meters
Resolution Ratio		30 million pixels
Optical Source		620nm Visible red light diode
Image Resolution		≥ 5mil
Minimum Contrast		≥ 30%
Barcode Types		1D CODE128 , EAN-8 , EAN-13 , UPC-E , UPC-A , Interleaved 2 of 5 ITF14 , MATRIX 25 , Code39 , Codabar , Code93 , UCC/EAN-128 , Code11 , ISBN , INDUSTRIAL25 , STANDARD25 , Plessey , MSI_Plessey 2D PDF417 , QR Code , Aztec , DataMatrix , Maxicode
Barcode Sensitivity	Tilt	±55°
	Rotate	±25°
	Deflection	±75°
Data Interface Port		Micro USB

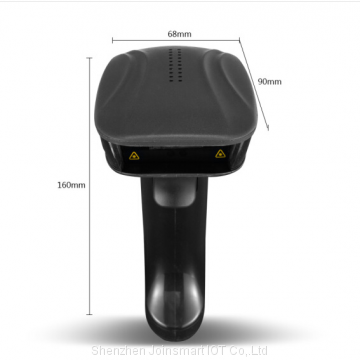

SIZE(Length x Width x Height)		94mm63mm161mm
Net Weight		155g
Indicator		Siren and LED Light
Battery Capacity		500mah
Max.Power		1218mw
Working Voltage		4.2V
Current	Max.Current	290mA
	Working Current	84mA~290mA
	Standby Current	84mA
	Sleeping Current	≤ 10uA
Charging Current		450mA
Battery Charging Time		≤ 3.5 Hours
A fully charged readable		≥100,000 times
Environmental Parameter
Storage Temperature		-40°C ~ 60°C
Working Temperature		0°C ~ 50°C
Relative Humidity		0 ~ 95%
Height range		1.5M
IP Rating		IP52
