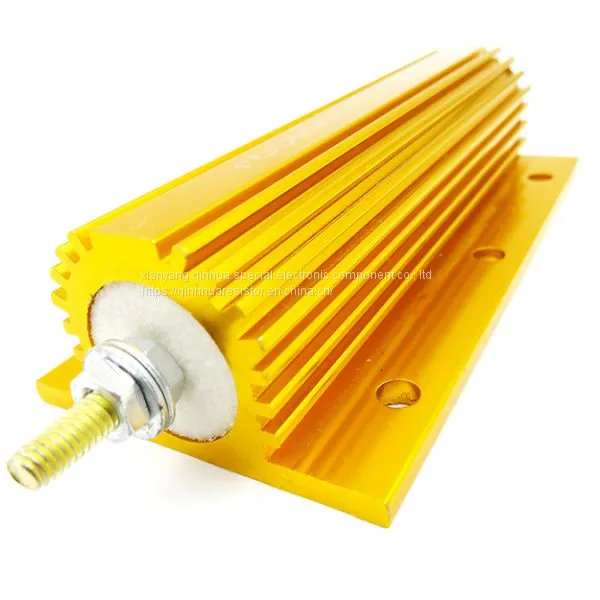

50w 200w 1ohm 10ohm Gold Aluminum Wire Wound Resistor

50w 200w 1ohm 10ohm Gold Aluminum Wire Wound Resistor thumbnail-1
50w 200w 1ohm 10ohm Gold Aluminum Wire Wound Resistor thumbnail-2
50w 200w 1ohm 10ohm Gold Aluminum Wire Wound Resistor photo-1
50w 200w 1ohm 10ohm Gold Aluminum Wire Wound Resistor photo-2
Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
QINHUA
Place of Origin:
China
Model Number:
RX24
Contact Supplier Request Quote Chat Now
Xianyang Qinhua Special Electronic Component Co., Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name QINHUA
Place of Origin China
Model Number RX24
Type Fixed Resistor
Rated Power 50w-200w
Operating Temperature 100ppm-400ppm
Package Type Surface Mount
Resistance Tolerance 5%
Resistance 1ohm-20kohm
Technology Wirewound
Temperature Coefficient -55-25
Chief Characteristic
1.Structure: Aluminum housed
2.Fillings: expoxy
3.Core: ceramic rod
4.Power Range: 50W~200W
5.Resistance range: 1ohm~20k ohm
6.Resistance tolerance: ±1%~±5%
7.Resistance temperature cofficient: ±100ppm~±400ppm
8.Specialty: With aluminum-housed heat sink, small size, high power, good stability.
  Non-inductive products are available.
  suitable for installation in heat diffusing plates
  No heat diffusing plates installation, the power must be cut off 1/2
1.The resistor is used in DC or low frequency AC circuits.
2.We can provide the non-inductance resistor if it will be used in high frequency circuit.
Contour Drawing:
Note:

When using the resistor, you should be equipped with the corresponding etalon of the heat radiator panels , if no equipped with, the power load should be cut in half.

Product Details
Power Derating Curve
Applications scope
1.Be able to use in the domain of the electric power,electric locomotive ,machine-electric equipment etc.
2.They are Perfect elements of the power absorption and load.
3.Principally used in electronic test equipment,high voltage switch, high voltage electric transport,large power electrical, electronic specialized precision instrument, new type medical equipment manufacture and high voltage electrostatic precipitator etc
Technology Standard:
1:GB/T 5729-2003
2:Q/QH 1637-2014
